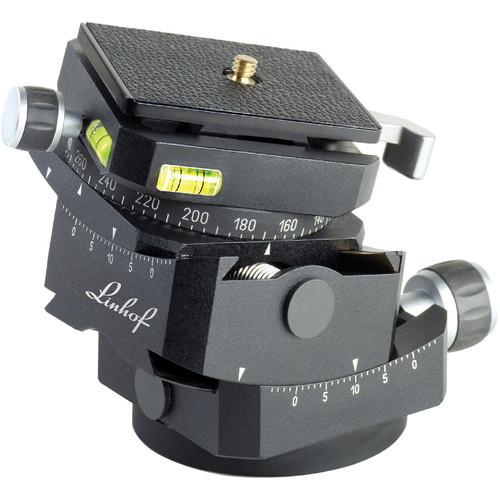

User Manual for Linhof 3D Micro Geared Leveling Pan and Tilt Head with Quickfix Click to enlarge the picture
Contents of the user manual for the Linhof 3D Micro Geared Leveling Pan
- Product category: Tripod Heads Linhof
- Brand: Linhof
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Linhof Tripod Heads
|
User manual for the Linhof 3D Micro Geared Leveling Pan contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Linhof product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Linhof user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Linhof product will considerably shorten its lifespan!
|
Product description Linhof's 3D Micro Geared Leveling Pan and Tilt Head with Quickfix is a head developed to guarantee extremely precise camera adjustments. Rubber coated turning knobs provide self-aligning micro movements of 12° on both sides as well as the front and rear. An additional panoramic plate above the movement axis permits exact individual exposures for composed panoramic images. All adjustments can be controlled and repeated with the precise scales. The 3D Micro is equipped with the Linhof Quickfix quick tripod adapter. Two spirit levels give you additional aid for precise placement. This head is designed for the use of precision cameras up to 22 lbs (10 kg) in weight. - Two precise adjustment controls for tilt and lateral leveling
- Self-aligning micro movements of 12° are possible on both sides as well as front and rear
- Two spirit levels are included
- Designed for the use of precision cameras, especially in architectural photography
- Recommended for Linhof Techno, Master Technika and the Linhof Technorama systems
UPC: 053661096240 In the Box Linhof 3D Micro Geared Leveling Pan and Tilt Head with Quickfix Quick Release Plate for Quickfix I Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Linhof 3D Micro Geared Leveling Pan and Tilt Head with Quickfix in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLinhof 003660 Specs | | | Base Mount | 3/8"-16 Thread | | Camera Mounting Screw | 3/8"-16 Male | | Load Capacity | 22 lb / 10 kg | | Number of Bubble Levels | 2 | | Independent Pan Lock | Yes | | | | Dimensions | H: 3.7" / H: 94.8 mm | | Weight | 2.3 lb / 1048.0 g | | | | Package Weight | 2.75 lb | | Box Dimensions (LxWxH) | 6.8 x 6.4 x 4.6" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 34 owners. Add your rating and experience with the product.
