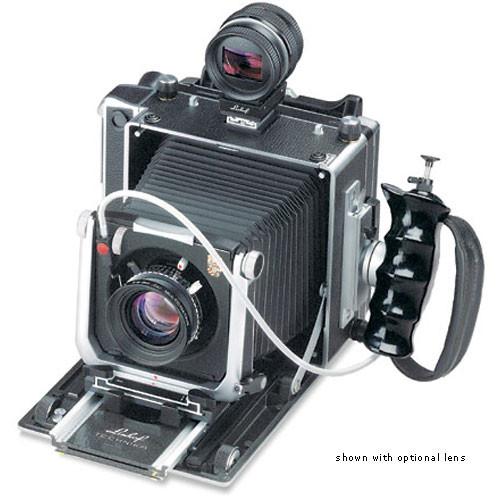

Product description The Linhof Master Technika "Classic" comes with wrist strap, folding focusing hood and groundglass grid screen. It does not include the lens, lensboard, grip, fresnel lens or viewfinder! It is a technical baseboard rangefinder focusing capable camera of the highest quality with a sturdy die-cast body that closes to compact dimensions. The ideal large format system for handheld rangefinder-focused action shots, and for deliberately composed studio or location subjects. Built-in couple-able precision long-base dichroic rangefinder, triple extension drop bed, ratcheting lift lever for front standard rise, International Graflock spring back with revolving swing frame. Lift-up flap on top of camera housing for increased wide-angle efficiency. Removable top finder shoe with additional tripod socket underneath for positioning the camera upside down, facilitating lens drop. The rangefinder can be coupled by the Linhof service center to focal lengths 75mm-360mm. - Built-in triple extension allows 15.7" of extension.
- Extra tripod socket(hidden beneath top shoe) allows mounting of camera upside down, simplifying lens-drop.
- Optional optical Multifocus(75-360mm) Finder allows for quick composition and handheld shooting.
- Omni-directional swing back for extension of swing/tilt movements and perspective corrections.
- Revolving back with locks for horizontal/vertical images.
- 75-360mm lenses may be rangefinder-coupled, 75mm with limitations, other focal lengths groundglass focusing only, 55/58/65mm extreme wide-angle lenses require focusing adapter #002555/lensboard #001005. Front standard accepts all lenses with a maximum rear diameter of 83mm.
- Front rise can be used as drop when camera in mounted upside-down, and some drop can be had with the camera in the normal position by dropping the bed and bringing the front standard back to vertical.
NOTE: If a cam is installed, before using the 3rd notch (lowest position) on the drop-bed, remove the cam or it might bend. In the Box Linhof 4x5 Master Technika "Classic" Rangefinder Metal Field Camera 4x5 Groundglass Focusing Screen with 9x12 Markings, cm Grid and Roll Film Scoring 45 Folding Focusing Hood/Groundglass Cover Handstrap 5-Year USA Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Linhof 4x5 Master Technika "Classic" Rangefinder Metal Field Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLinhof Master Technika Classic Specs | Tilts | Front: 30° forward and backward; 15 and 30° bed drop positions (forward tilt) with click stops
Rear: 20° forward and backward | | Swings | Front: 15° left and right
Rear: 20° left and right | | Rise & Fall | Front Rise only: 55mm geared with ratcheting lever | | Shifts | Front: 40mm left, 40mm right | | Camera Back | 4x5 Revolving International Standard Graflok Back
Groundglass with 1cm Grid Lines and 9x12cm markings (#021805) - optional Fresnel lens (#002522) | | Interchangeable Bellows | No | | Minimum Extension | 92mm with flat lensboard
83mm with recessed lensboard (#001016) | | Maximum Extension | Front: 15.7" (400 mm)
Back: + 1.4" (35 mm) | | Lensboard | Standard Linhof Technika 45 Lensboard 96 x 99mm | | Dimensions | 8 x 7 x 4.5" (20 x 18 x 11 cm) | | Weight | 6.5 lbs (2.9 kg) | | | | Package Weight | 6.5 lb | | Box Dimensions (LxWxH) | 10.5 x 9.5 x 6.4" |
