User Manual for Linhof 4x5 Technikardan 45s Camera Click to enlarge the picture
Contents of the user manual for the Linhof 4x5 Technikardan 45s Camera
- Product category: Large Format Cameras Linhof
- Brand: Linhof
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Linhof Large Format Cameras
|
User manual for the Linhof 4x5 Technikardan 45s Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Linhof product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Linhof user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Linhof product will considerably shorten its lifespan!
|

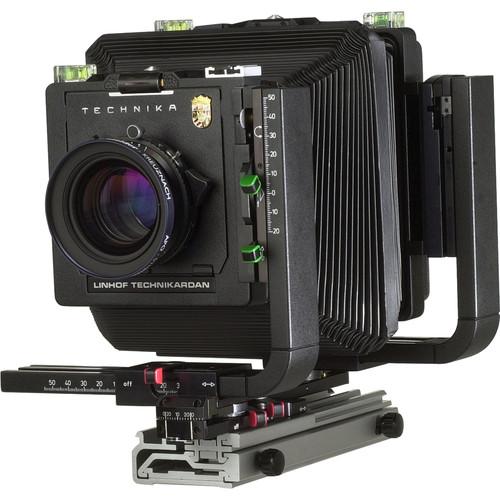

Product description As the name implies, the Technikardan combines the compactness of the classic Linhof Technika drop-bed cameras with the versatility of the Kardan monorail series. The Linhof Technikardan 45s features full format flexibility, from the standard roll film sizes up to 4x5" cut film, including the remarkable 6x12cm wide-field images and all the appropriate Polaroid film formats. Its wide-angle lens capabilities allow the use of lenses 55mm and longer without recessed lensboards. The goal of its designers was to have studio camera features in a field camera size with interchangeable bellows, center swings and tilts with zero click stops, triple extension monorail, and precision-machined dovetail fittings for all movements which are positively secured with color-coded locks for smooth, rapid operation. - Front and rear standards rotate 90 degrees, parallel to the rail, making the camera flat and more compact for easy transport.
- Shutter functions can be controlled behind the camera with optional Prontor TK lenses
- Accepts standard Technika 45 style lensboards
- Snap-on Kardan 45 back w/ grid groundglass
- Fully compatible with complete Linhof system
- The most compact of all 4x5 monorail cameras
In the Box Linhof 4x5 Technikardan 45s Camera 4x5 Technikardan Normal Bellows (19") rdaertzedrrxdezqetvtdrec 19" Rail Front & Rear L-Standards Spirit Levels 4x5 Back 4x5 Groundglass Focusing Screen with 9x12 Markings, cm Grid and Roll Film Scoring 5-Year USA Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Linhof 4x5 Technikardan 45s Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLinhof Technikardan 45s Specs | Tilts | Front and Rear: 360° with reference scales +/- 10° with "zero" position click-stop, limited only by bellows, | | Swings | Front and Rear: 360°, with reference scales +/- 10 degrees with "zero" position click-stop, limited only by bellows | | Rise & Fall | Front: 50mm rise, 20mm fall
Rear: 50mm rise only | | Shifts | Front and Rear: 20mm Left and Right | | Camera Back | 4x5 Vertical/Horizontal quickchange International Graflok
Groundglass with grid-lines | | Interchangeable Bellows | Yes | | Minimum Extension | With wide-angle bellows: 50mm (2") | | Maximum Extension | 19" (485mm) | | Lensboard | Linhof Technika 45 Type 96x99mm, optional | | Dimensions | Folded: 5 x 8.5 x 10" (12.5 x 21.5 x 25.5 cm) LWH | | Weight | 7.7 lbs (3.5 kg) | | | | Package Weight | 9.15 lb | | Box Dimensions (LxWxH) | 13.8 x 12.5 x 7.7" |
