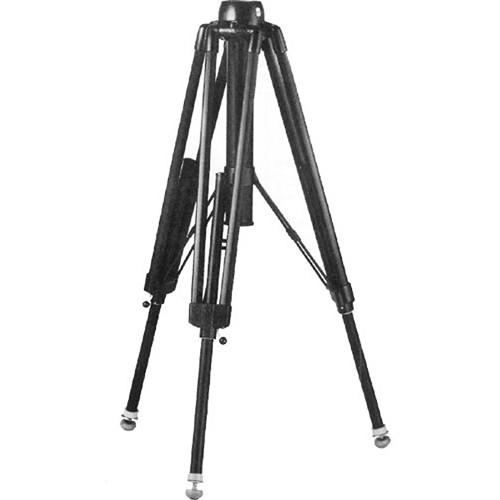

User Manual for Linhof Heavy-Duty Pro Tripod Click to enlarge the picture
Contents of the user manual for the Linhof Heavy-Duty Pro Tripod
- Product category: Tripod Legs Linhof
- Brand: Linhof
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Linhof Tripod Legs
|
User manual for the Linhof Heavy-Duty Pro Tripod contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Linhof product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Linhof user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Linhof product will considerably shorten its lifespan!
|
Product description This Heavy-Duty Pro Tripod from Linhof supports up to 44.1 lb, measures 35.8" when folded, and features three, twin-shank, 2-section legs that are constructed using aluminum alloy with a textured, plastic coating. The twin-shank design serves to maximize rigidity and vibration resistance while the textured coating provides a secure grip when moving the tripod. Each leg features a clamping lever for secure and fast positioning. An integrated center brace assembly allows the legs to be opened simultaneously as well as uniformly, and they can be extended and spread to raise the tripod from a minimum height of 32.3" to a maximum height of 54.7". The center brace assembly helps to hold the legs in place, which include rubber feet with twist-out, metal spikes to further enhance stability on a wide variety of surfaces, including soft and uneven soil.
Tripod heads, cameras, lenses, or sport optics can be placed on the Heavy-Duty Pro Tripod after first connecting a separately-available Linhof 31477 90 to 70mm Tripod Top Plate with 3/8"-16 Mount, a 32964 90 to 70mm Tripod Top Plate with 1/4"-20 Mount, a 31482 Flat Tripod Top Plate with 3/8"-16 Mount, or a 32965 Flat Tripod Top Plate with 1/4"-20 Mount to the tripod. Any one of those top plates can be clamped into the Heavy-Duty Pro Tripod's durable, cast-iron head. Alternatively, a separately-available Linhof 3755 Large, Geared Centerpost can be installed within the cast-iron head and the center brace assembly. Together, the centerpost and Heavy-Duty Pro Tripod provide a minimum height of 37.4", a maximum height of 79.1", and further enable precise height adjustments along with geared movements. The 3755 Large, Geared Centerpost also features a clamp head that accommodates a compatible Linhof tripod top plate so that a tripod head, camera, lens, or sport optic can be placed on it. - Use and Handling
-
- Supports up to 44.1 lb
- Tripod heads, cameras, lenses, or sport optics can be attached after first clamping a separately-available Linhof 31477 90 to 70mm Tripod Top Plate with 3/8"-16 Mount, a 32964 90 to 70mm Tripod Top Plate with 1/4"-20 Mount, a 31482 Flat Tripod Top Plate with 3/8"-16 Mount, or a 32965 Flat Tripod Top Plate with 1/4"-20 Mount to the tripod head
- Alternatively, tripod head and center brace assembly accepts a separately-available Linhof 3755 Large, Geared Centerpost which features a clamp for a tripod top plate and further enables precise height adjustments along with geared movements
- Can be set for a minimum height of 32.3" to a maximum height of 54.7", or 37.4" to 79.1" with a separately-available Linhof 3755 Large, Geared Centerpost
- Twin-shank leg design serves to maximize rigidity and vibration resistance
- Legs each feature 2 sections as well as clamping lever for secure and fast positioning
- Textured, plastic leg coatings provide a secure grip
- Center brace assembly allows legs to be spread simultaneously as well as uniformly and provides additional support
- Rubber feet with twist-out, metal spikes to further enhance stability on a wide variety of surfaces, including soft and uneven soil
- Built-in tripod bubble level
- Weighs 16.4 lb, measures 35.8" when folded
- Construction Details
-
- Aluminum-alloy legs
- Durable cast-iron head with clamp for separately-available tripod top plate or geared, centerpost
UPC: 053661096189 In the Box Linhof Heavy-Duty Pro Tripod Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Linhof Heavy-Duty Pro Tripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLinhof 3323 Specs | | | Load Capacity | 44.1 lb / 20.0 kg | | Maximum Working Height | 54.7" / 138.9 cm | | Minimum Working Height | 32.3" / 82 cm | | Folded Length | 35.8" / 90.93 cm | | Head Mount Type | None | | Weight | 16.4 lb / 7.44 kg | | Materials | Aluminum Alloy, Cast Iron | | Bubble Level | Yes | | | | Leg Lock Type | Clamping Lever | | Independent Leg Spread | No | | Leg Sections | 2 | | Feet Features | Rubber, Spiked | | | | Package Weight | 19.75 lb | | Box Dimensions (LxWxH) | 37.5 x 11.8 x 11.75" |
