User Manual for Linhof Kardan RE View Camera with Rail Click to enlarge the picture
Contents of the user manual for the Linhof Kardan RE View Camera with
- Product category: Large Format Cameras Linhof
- Brand: Linhof
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Linhof Large Format Cameras
 |
User manual for the Linhof Kardan RE View Camera with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Linhof product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Linhof user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Linhof product will considerably shorten its lifespan!
|

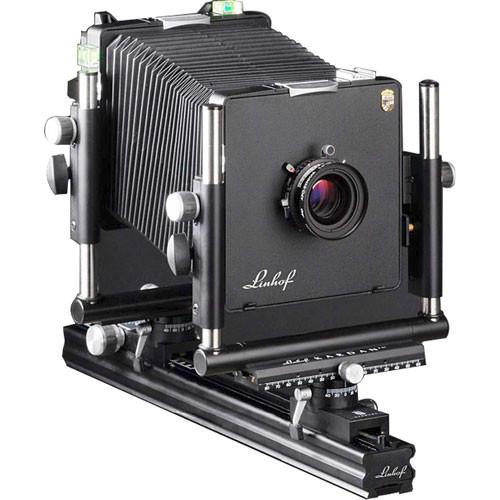

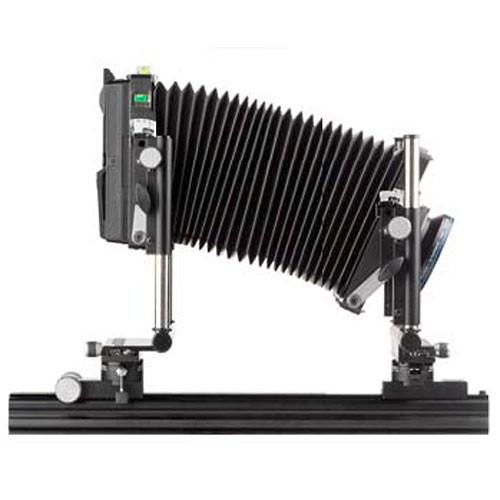

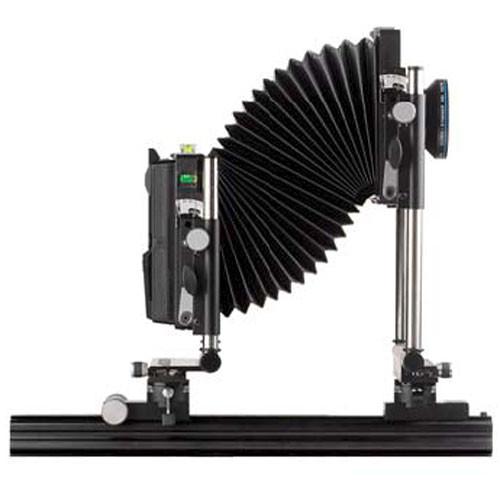

Product description The Linhof Kardan RE View Camera is an affordable view camera for the first step into the Linhof system and the ideal entry to professional large format techniques. The RE is identical to the earlier Kardan M model and features the same 18" rail and 20" bellows. The bellows themselves are interchangeable for extended wide-angle capability. The angle scales read to 70° with 1° divisions. - Full range of view camera movements for total image control
- Center swings and tilts plus yaw-free direct shifts to the limits of the image field covered
In the Box Linhof Kardan RE View Camera with Rail 5 Year Manufacturer's Warranty on Camera Body Table of Contents
|
Upload User Manual
Have you got an user manual for the Linhof Kardan RE View Camera with Rail in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLinhof Kardan RE Specs | Tilts | Front (axis): 30° forward + 40° base tilt, 40° backward + 40° base tilt,
Rear (axis): 30° forward + 40° base tilt, 40° backward + 40° base tilt | | Swings | Front and Rear: 360°, limited only by bellows | | Rise & Fall | Front and Rear: 2.2" (56mm) rise, 1" (25mm) fall | | Shifts | Front and Rear: 2.4" (60mm) left, 3.2" (80mm) right | | Camera Back | 4 x 5" Vertical/Horizontal quickchange International Standard Graflok
Groundglass with 1cm grid-lines, 9 x 12 cm scoring | | Interchangeable Bellows | Yes | | Minimum Extension | With standard bellows and flat lensboard: 100mm (4")
With wide-angle bellows, flat lensboard: 80mm (3.2")
With wide-angle bellows, recessed lensboard: 60mm (2.4) | | Maximum Extension | 17.7" (450mm) limited by included bellows
Monorail: 18" (450mm) | | Lensboard | Linhof Kardan Type 162 x 162mm | | Dimensions | 15 x 9.5 x 14" (38 x 24 x 35 cm) LxWxH | | Weight | Camera Body: 9.7 lbs (4.4 kg)
Lens with board: ~0.8 lbs (0.4 kg) | | | | Package Weight | 11.3 lb | | Box Dimensions (LxWxH) | 21.5 x 16.0 x 6.0" |
