User Manual for Linhof Large Basic Leveling Head II with 1 4"-20 Mount Click to enlarge the picture
Contents of the user manual for the Linhof Large Basic Leveling Head II
- Product category: Camera & Tripod Levelers Linhof
- Brand: Linhof
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Linhof Camera & Tripod Levelers
|
User manual for the Linhof Large Basic Leveling Head II contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Linhof product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Linhof user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Linhof product will considerably shorten its lifespan!
|

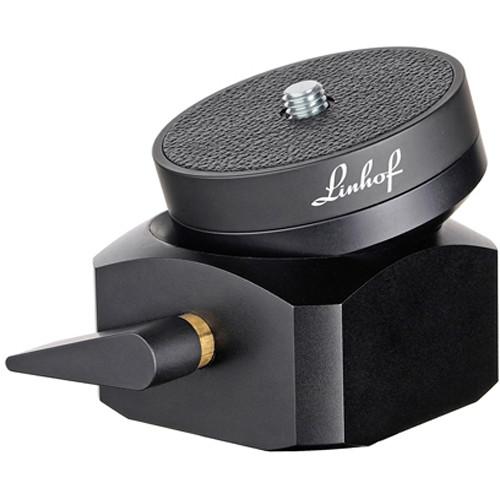

Product description This Large Basic Leveling Head II with 1/4"-20 Mount from Linhof is designed to maintain a camera's horizontal axis on a tripod while capturing a sequence of images for the purpose of creating a panorama. It is particularly useful for cylindrical panoramas where their individual component images are obtained by incrementally rotating the camera, and must remain uniformly level to avoid the appearance of slanting upwards or downwards after they are aligned. Cylindrical panoramas that initially appear to be slanted can require extensive cropping to obtain a parallel top and bottom. This can result in a dramatic loss of picture area and apparent height, causing unexpected as well as unwanted changes to image composition and content. By incorporating this leveling head within a support system intended for the process of creating panoramas, the potential area of the final image is maximized, helping to preserve creative intent.
The Basic Leveling Head II with 1/4"-20 Mount has a load capacity of 22 lb and is compatible with tripods or support systems that feature a 3/8"-16 mount. Loosening its control handle allows the leveling head's rubberized, non-slip platform to be rolled left or right, by up to 17°. Misaligned horizontal orientations relative to a panoramic subject can then be precisely compensated for, preventing slanted images.
Cameras or panoramic head components with 1/4"-20 or 3/8"-16 female accessory threads can be placed on the Large Basic Leveling Head II with 1/4"-20 Mount after first connecting a separately-available Linhof 003673 Panorama Plate with Quickfix I Quick-Lock Tripod Connector and Adapter Plate, or a Linhof 003674 Panorama Plate with Dovetail Guide and Dovetail Track Plate when used with their 3/8"-16 to 1/4"-20 reducer bushings. When installed between a camera and this leveling head, these panorama plates provide the ability to rotate a camera 360° according to clearly visible hatch marks engraved at 5° intervals. Two corner-facing, adjacent bubble levels built into either panorama plate help to ensure that this Large Basic Leveling Head II is properly angled to provide a camera with a horizontal rotation axis. Alternatively, this head may be used with a panoramic plate or device that features a 1/4"-20 female accessory thread. -
- Designed to maintain a camera's horizontal axis on a tripod while capturing a sequence of images for the purpose of creating a panorama
- Provides up to 17° of roll, left or right
- Cameras or panoramic head components with 1/4"-20 or 3/8"-16 female accessory threads can be attached after first connecting a separately-available Linhof panorama plate with built-in bubble levels and a 3/8"-16 to 1/4"-20 reducer bushing installed, the Linhof 003673 Panorama Plate with Quickfix I Quick-Lock Tripod Connector and Adapter Plate, or the Linhof 003674 Panorama Plate with Dovetail Guide and Dovetail Track Plate to the leveling head's rubberized, non-slip platform with 1/4"-20 mount
- Can be used with a panoramic plate or a device that features a 1/4"-20 female accessory thread
- Ensures that individual panorama component images obtained by incrementally rotating the camera remain uniformly level to avoid the appearance of slanting upwards or downwards after they are aligned
- Prevents need to extensively crop aligned panorama component images to obtain a final panoramic image with a parallel top and bottom
- Maximizes potential area of final panoramic image, helps to preserve creative intent
- Compatible with tripods or support systems that feature a 3/8"-16 mount
- 22 lb load capacity
- Control handle can be loosened or tightened to enable tilt movement
- Durable, cast aluminum construction
UPC: 053661093867 In the Box Linhof Large Basic Leveling Head II with 1/4"-20 Mount Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Linhof Large Basic Leveling Head II with 1 4"-20 Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLinhof 3655 Specs | Material of Construction | Cast Aluminum | | Roll Range | -17.0°/+17.0° | | Top Mount Thread Size | 1/4"-20 | | Spirit Level | No | | Tripod Mount Thread Size | 3/8"-16 | | Height | 2.8" / 7.0 cm | | Maximum Diameter | 3.5" / 9.0 cm | | Weight | 1.2 lb / 0.5 kg |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 41 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
The discussion is empty - enter the first post
