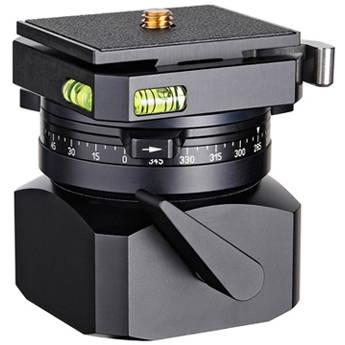

User Manual for Linhof Large Leveling Head II with Panorama Plate, Quickfix I Tripod Connector, and Quickfix I Adapter Plate Click to enlarge the picture
Contents of the user manual for the Linhof Large Leveling Head II with
- Product category: Camera & Tripod Levelers Linhof
- Brand: Linhof
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Linhof Camera & Tripod Levelers
|
User manual for the Linhof Large Leveling Head II with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Linhof product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Linhof user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Linhof product will considerably shorten its lifespan!
|
Product description This Large Leveling Head II from Linhof is designed to allow a camera to be incrementally rotated on a horizontal axis for capturing a sequence of images that are intended to be aligned and merged into a single panoramic photo. It features a built-in Linhof panorama plate with an integrated Linhof Quickfix I Tripod Connector, which is a panning platform with a cam-lock quick release adapter. The panorama plate with Quickfix I tripod connector provides the ability to rotate a camera 360° according to clearly visible hatch marks engraved at 5° intervals. Depending on which camera and lens is placed on this leveling head, as well as the lens's focal length, those interval hatch marks can be used to ensure that images within a sequence sufficiently overlap to form a panorama. Cameras or panoramic head components with 1/4"-20 or 3/8"-16 female accessory threads can be placed on the panorama plate with Quickfix I tripod connector using the included Linhof 003875 Quickfix I Adapter Plate.
The leveling head has a load capacity of 22 lb and is compatible with tripods or support systems that feature a 3/8"-16 mount. Loosening its control handle allows the leveling head's panorama plate to be rolled left or right, by up to 17°.
Two built-in corner-facing, adjacent bubble levels help to ensure that this leveling head is properly angled to provide a camera with a horizontal rotation axis. This is particularly useful for cylindrical panoramas where their individual component images must remain uniformly level to avoid the appearance of slanting upwards or downwards after they are aligned. Cylindrical panoramas that initially appear to be slanted can require extensive cropping to obtain parallel top and bottom sides. This can result in a dramatic loss of picture area and apparent height, causing unexpected as well as unwanted changes to image composition and content. By incorporating this leveling head within a support system configured for the process of creating panoramas, misaligned horizontal orientations relative to a panoramic subject can be precisely compensated for, preventing slanted images and maximizing their potential area, helping to preserve creative intent.
This leveling head further benefits the use of Linhof Master Technika-series cameras when combined with a separately-available Linhof 003878 Quickfix I Adapter Plate for 35mm Cameras. When placed on the leveling head's tripod connector, a Quickfix I adapter plate for 35mm cameras can be adjusted to help maximize the ability to open the camera's baseboard throughout the leveling head's range of movement. -
- Designed to allow a camera to be incrementally rotated on a horizontal axis for the purpose of capturing a sequence of images that are intended to be aligned and merged into a single panoramic photo
- Panorama plate provides the ability to rotate a camera 360° according to clearly visible hatch marks engraved at 5° intervals and is integrated with a Linhof Quickfix I Tripod Connector, which is a cam-lock quick release adapter
- Cameras or panoramic head components with 1/4"-20 or 3/8"-16 female accessory threads can be placed on the panorama plate with with Quickfix I tripod connector using the included Linhof 003875 Quickfix I Adapter Plate, which is a compatible quick release plate
- Locking ring between panorama plate and tripod connector allows the panorama plate to be fastened in one position or to rotate 360°
- Interval hatch marks on panorama plate can be used to ensure that images as part of a sequence sufficiently overlap to form a panorama
- Provides up to 17° of roll, left or right
- Ensures that individual panorama component images obtained by incrementally rotating the camera remain uniformly level to avoid the appearance of slanting upwards or downwards after they are aligned
- Prevents need to extensively crop aligned panorama component images to obtain a final panoramic image with parallel top and bottom sides
- Maximizes potential area of final panoramic image, helps to preserve creative intent
- Compatible with tripods or support systems that feature a 3/8"-16 mount
- 22 lb load capacity
- Control handle can be loosened or tightened to enable tilt movement
- Durable, cast aluminum construction
- Interchangeable 1/4"-20 and 3/8"-16 mounts for Quickfix I adapter plate
- Hex key to remove or install interchangeable 1/4"-20 and 3/8"-16 mounts for Quickfix I adapter plate
- Integrated hex key retainer in Quickfix I tripod connector
- 3/8"-16 to 1/4"-20 reducer bushing can be used to adapt cameras or panoramic head components with 3/8"-16 female accessory threads to Quickfix I adapter plate with 1/4"-20 mount installed
- Compatible with Linhof Master Technika-series cameras when combined with a separately-available Linhof 003878 Quickfix I Adapter Plate for 35mm Cameras by helping to maximize the ability to open the camera's baseboard throughout the leveling head's range of movement
UPC: 053661093843 In the Box Linhof Large Leveling Head II with Panorama Plate, Quickfix I Tripod Connector, and Quickfix I Adapter Plate 003875 Quickfix I Adapter Plate 1/4"-20 Mount for Quickfix I Adapter Plate 3/8"-16 Mount for Quickfix I Adapter Plate Hex Key for Quickfix I Adapter Plate Mounts 3/8"-16 to 1/4"-20 Reducer Bushing Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Linhof Large Leveling Head II with Panorama Plate, Quickfix I Tripod Connector, and Quickfix I Adapter Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLinhof 3658 Specs | Material of Construction | Cast Aluminum | | Load Capacity | 22.0 lb (10.0 kg) | | Quick Release | Yes, 1/4"-20 or 3/8"-16 mount | | Spirit Level | Yes | | Separate Panning Lock | Yes | | Tripod Mount Thread Size | 3/8"-16 | | Panning Range | 360° | | Roll Range | -17.0°/+17.0° | | Height | 3.7" (9.3 cm) | | Maximum Diameter | 3.5" (9.0 cm) | | Weight | 1.7 lb / 0.8 kg |
