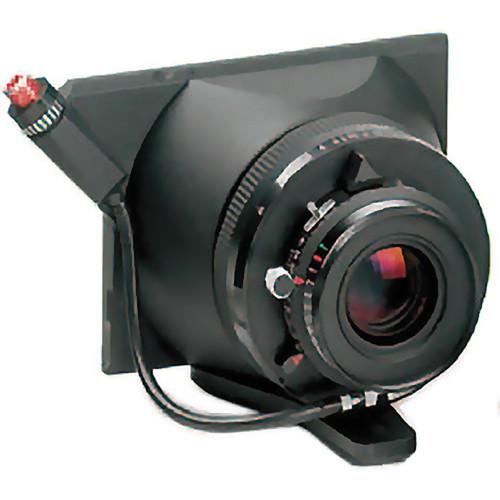

User Manual for Linhof Technorama 120mm f 5.6 Apo-Symmar Lens for 612PC II Click to enlarge the picture
Contents of the user manual for the Linhof Technorama 120mm f 5.6 Apo-Symmar
- Product category: Medium Format Lenses Linhof
- Brand: Linhof
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Linhof Medium Format Lenses
|
User manual for the Linhof Technorama 120mm f 5.6 Apo-Symmar contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Linhof product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Linhof user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Linhof product will considerably shorten its lifespan!
|
Product description The Linhof Technorama 120mm f/5.6 Apo-Symmar Lens for 612PC II is a high-performing aspherical lens that comes with a special helical focusing mount and shutter mechanism specifically tailored to the Linhof 612 PC II (6x12 cm film size), which has a wide 2:1 aspect ratio. One of the 5 system lenses available for the 612 PC II, this 120mm lens has a "normal" angle of view of 52°, similar to a 50mm lens on a 35mm camera. A built-in pre-shift allows an 8mm "rise" which can help overcome problems with converging lines and other perspective challenges. By mounting or holding the camera upside down, you can achieve an 8mm "fall" instead of a rise. This lens has a maximum aperture of f5.6 and a minimum aperture of f64, with shutter speeds from 1s to 1/500s, with T and B settings as well. The minimum focusing distance is 6.88' (2.1 m). - Aspherical 120mm lens exclusively for the Technorama 612 PC II
- Compact, fast optic with 52° angle of view
- Complete with mount, focusing helicoid with scale, and shutter mechanism for the 612 PC II
- Optionally available optical finder
Table of Contents
|
Upload User Manual
Have you got an user manual for the Linhof Technorama 120mm f 5.6 Apo-Symmar Lens for 612PC II in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLinhof 000776 Specs | Aperture Range | F 5.6-64 | | Shutter Speed Range | T, B, 1s - 1/500s | | Angle of View | 52° | | Focus Distance | Minimum: 6.8' (2.1 m) | | Filter Mount | M 52 x 0.75 | | Dimensions | 4.17 x 5.9 x 4.13" (10.6 x 15.2 x 10.5 cm) | | Weight | 1.77 lbs (807 g) |
