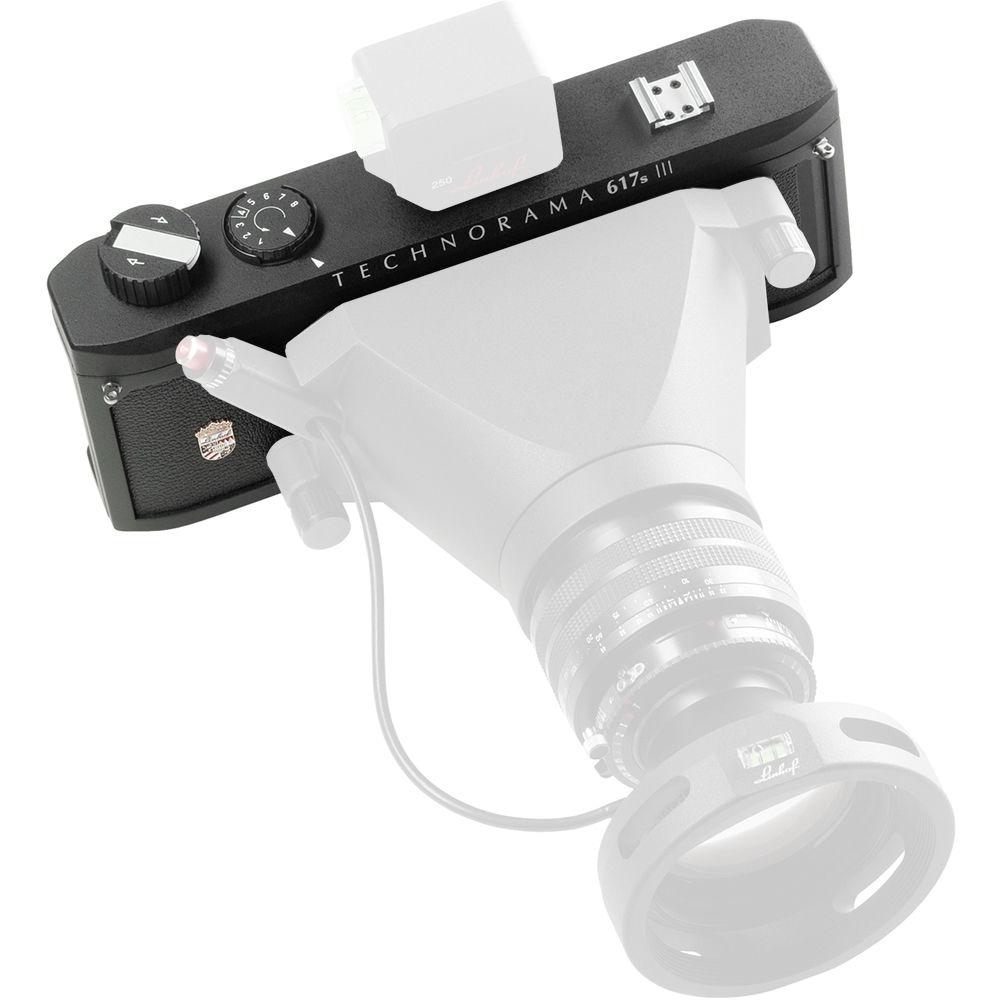

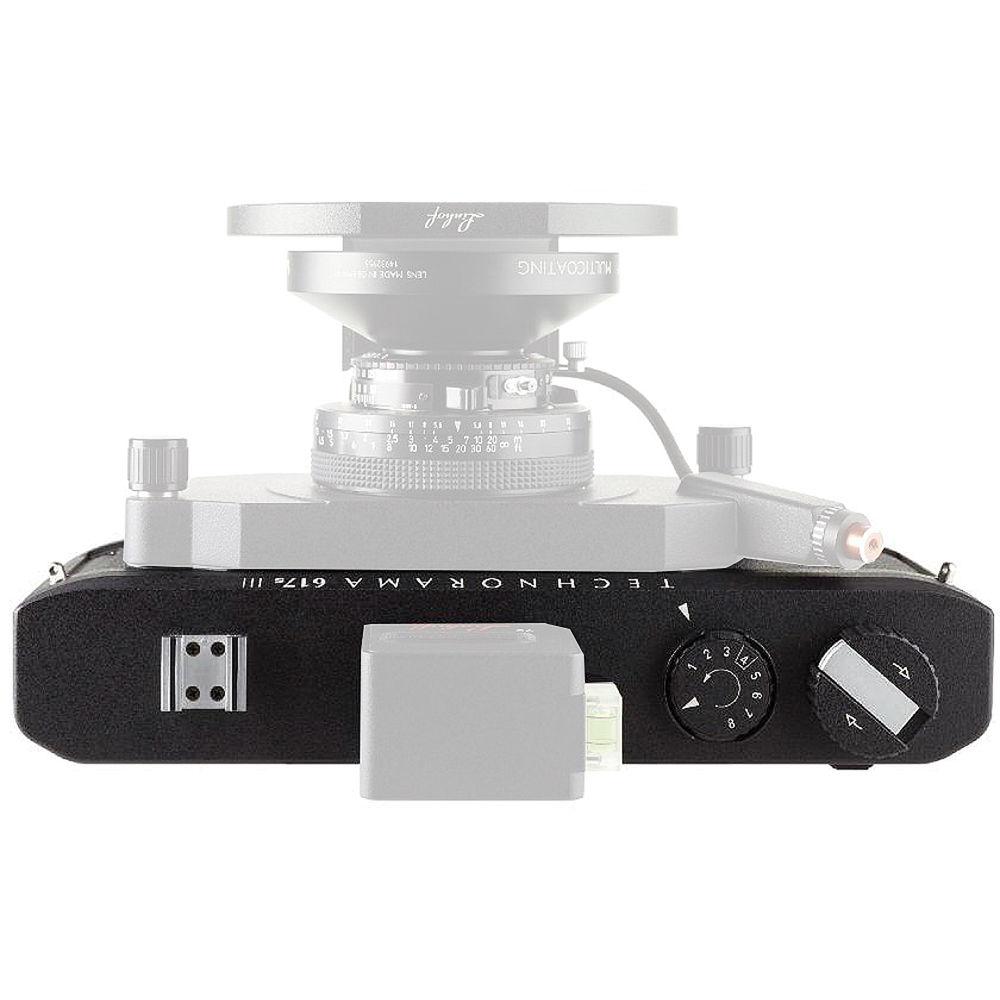

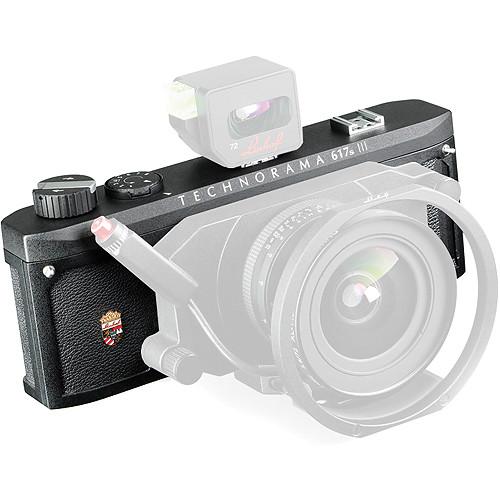

Product description The Linhof Technorama 617s III Panoramic Camera is a 6 x 17cm format handheld camera that is compatible with both 120 and 220 roll film types for creating wide, expansive imagery in a 3:1 aspect ratio. The camera body is constructed from die-cast aluminum alloy and built to withstand harsh conditions and handling in nearly any circumstance.
The unique camera system revolves around five distinct lenses and dedicated optical viewfinders for critical compositions and a range of perspectives to champion the elongated format that is well-suited to landscape, industrial, and architectural photography. Each of the lenses, ranging from a wide-angle 72mm f/5.6 to a telephoto-length 250mm f/5.6, is set within a dedicated helical focusing mount for precise control over focus. Since the lenses are centrally-mounted, horizon curvature is also eliminated, allowing for more naturally appearing panoramic images. The Technorama 617s III integrates a dark slide system that permits the changing of lenses mid-roll, and each of the lenses is easily attached to the body by using front-mount knurled wheels. Also incorporated into the body are two accessory shoes; one is centrally located for use with the optical viewfinders and the other for mounting a flash or other shoe-mounted accessory. - Panoramic 6 x 17cm format large format handheld camera.
- Accepts 120 or 220 roll film for taking either four or eight exposures per roll, respectively.
- Die-cast aluminum alloy body construction is lightweight while still offering rigidity and durability for use in all conditions.

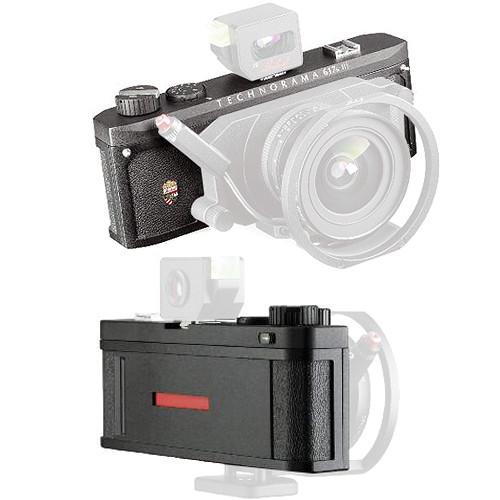

- Dark slide system and red safety indicator on camera back permits mid-roll lens changing.
- Manual film counter and film winding knob.
- Compatible with five dedicated lenses and optical viewfinders.
UPC: 053661094345 In the Box Linhof Technorama 617s III Panoramic Camera (Body Only) Camera Strap Dark Slide Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Linhof Technorama 617s III Panoramic Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLinhof 617s III Specs | Camera Type | Panoramic 6 x 17 cm roll film camera | | Film Back/Loading | Manual loading and winding | | Film Type | 120 or 220 roll film | | Lens Mount | Proprietary; system camera with five dedicated lenses | | Viewfinder | Accessory viewfinders based on lens in use | | Film Transport | Manual winding knob | | Multiple Exposure | Yes; manually controlled | | Focusing System | Helical manual focus via individual lens | | Power Source | N/A | | Tripod Mount | 1/4"-20 socket | | Dimensions | 10.6 x 2.3 x 4.5" / 270 x 58 x 114 mm | | Weight | 3 lb / 1.38 kg | | | | Package Weight | 6.75 lb | | Box Dimensions (LxWxH) | 14.0 x 12.5 x 8.0" |
