User Manual for Linhof Technorama Super-Angulon XL 72mm f 5.6 Lens Unit Click to enlarge the picture
Contents of the user manual for the Linhof Technorama Super-Angulon XL 72mm f
- Product category: Medium Format Lenses Linhof
- Brand: Linhof
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Linhof Medium Format Lenses
|
User manual for the Linhof Technorama Super-Angulon XL 72mm f contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Linhof product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Linhof user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Linhof product will considerably shorten its lifespan!
|

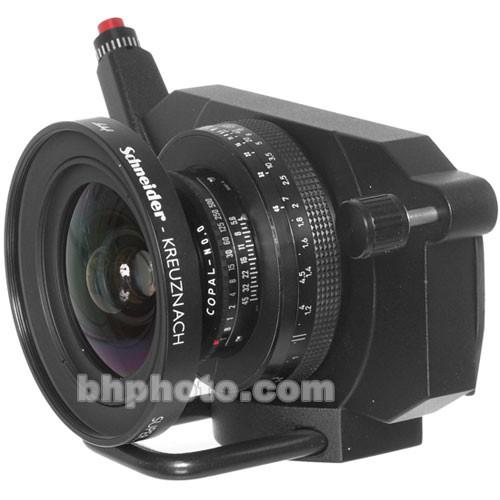

Product description The Linhof Technorama Super-Angulon XL 72mm f/5.6 Lens Unit is a wide-angle lens, providing a 99.5° angle of view, which is specifically designed for use with the Linhof 617s III Panoramic Camera. The lens is housed within a dedicated lens unit that allows for simple attachment to the 617s III camera body and also incorporates a range of functional elements that pair well with the handheld design of the system. A helical focusing mount is integrated into the lens unit to allow for one-handed, bellows-free, focusing as close as 3.6'. The lens is set in a standard Copal #0 shutter for shutter speeds between 1/500 to 1 sec, as well as B and T settings, and has an attached cable release with soft pressure shutter release. The shutter is uncoupled from the film winding mechanism and must be cocked prior to each exposure.
When in use, a corresponding accessory viewfinder can be used for precise image composition and the lens' distance scales are demarcated in imperial and metric measurements for focusing control. - Compatible with Linhof Technorama 617s III Panoramic Camera.
- Wide-angle lens provides a 99.5° angle of view.
- Lens unit integrates a helical focus mount for one-handed control of focus as close as 3.6'.
- Copal #0 shutter provides shutter speeds from 1/500 to 1 sec. as well as B and T settings.
- Aperture values between f/5.6 to f/45 are available with 1/3 stop demarcated increments.
- Shutter has X-sync contact for flash synchronization at all shutter speeds.
- Soft pressure shutter release is incorporated into design to benefit handling.
- Dedicated viewfinder for precise compositions when lens is in use.
- Lens unit measures 8.7 x 4.1 x 4.9" / 221 x 103 x 124mm.
- Lens produced by Schneider-Kreuznach and inspected by Linhof for assured performance and quality.
In the Box Linhof Technorama Super-Angulon XL 72mm f/5.6 Lens Unit Front and Rear Caps Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Linhof Technorama Super-Angulon XL 72mm f 5.6 Lens Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLinhof 000909 Specs | Focal Length | 72 mm | | Aperture | Maximum: f/5.6
Minimum: f/45 | | Camera Mount | Linhof Technorama 617s III | | Angle of View @ Infinity | 99.5° | | Image Circle @ Infinity | 229 mm @ f/22 | | Minimum Focus Distance | 3.61' / 1.1 m | | Area of Coverage | 6 x 17 cm | | Optical Design | 8 Elements in 4 Groups | | Shutter | Copal | | Shutter Type | Copal # 0 | | Shutter Speeds | 1 / 500 to 1 second | | Flash Synchronization | at All Speeds | | Flange Focal Distance | 82.2 mm | | DOF Scale | Yes | | Distance Scale | Yes | | PC Outlet | Yes | | Autofocus | No | | Filter Thread | Front: 95 mm | | Dimensions | Approx. 8.70 x 4.06" (221 x 103 mm) | | Weight | 2.65 lb / 1.2 kg | | | | Package Weight | 4.4 lb | | Box Dimensions (LxWxH) | 13.8 x 12.6 x 7.9" |
