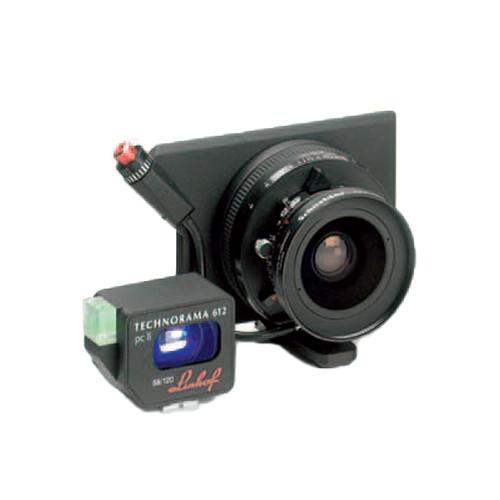

User Manual for Linhof Technorama Super-Symmar XL 80mm f 4.5 Lens f 612 PC II Click to enlarge the picture
Contents of the user manual for the Linhof Technorama Super-Symmar XL 80mm f
- Product category: Medium Format Lenses Linhof
- Brand: Linhof
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Linhof Medium Format Lenses
|
User manual for the Linhof Technorama Super-Symmar XL 80mm f contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Linhof product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Linhof user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Linhof product will considerably shorten its lifespan!
|
Product description This Linhof Technorama Super-Symmar XL 80mm f/4.5 Lens for the 612 PC II is an aspherical wide-field lens design, and comes with a special helical focusing mount and shutter mechanism specifically tailored to the Linhof 612 PC II. This lens is manufactured by Schneider Optics, and individually inspected by Linhof. A 6 element/4 group aspherical design with a normal coverage angle of 105°, the Technorama Super-Symmar XL 80mm f/4.5 produces a field of view similar to a ~26mm lens on a 35mm camera, in a sweeping 56 x 120mm image format. An optional finder (Linhof #001311) is available to quickly display a rough approximation of the field of view without having to observe, or even install, a ground glass on the camera. While Linhof does not specify it as being necessary because 56 x 120mm is well within the central field of view of this lens, the Schneider Center Filter #3B can be used to compensate for the natural illumination variance inherent in such a wide angle lens for the especially exacting photographer. - Aspherical 80mm lens exclusively for the Technorama 612 PC II
- Compact, fast, optic with enormous coverage angle
- Complete with mount, focusing helicoid with scale, and shutter mechanism for the 612 PC II
- Optionally-available optical finder
In the Box Linhof Technorama Super-Symmar XL 80mm f/4.5 Lens f/ 612 PC II Copal #0 Shutter Front & Rear Caps Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Linhof Technorama Super-Symmar XL 80mm f 4.5 Lens f 612 PC II in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLinhof 775 Specs | Optical Construction | 6 elements in 4 groups | | Aperture Range | f/4.5-45 | | Covering Power | 105° | | Image Circle @ Infinity | 212mm diameter @ f/22 | | Shutter | Copal #0 | | Shutter Speed | 1/500 to 1 Second + B & T | | Flange Attachment Size | Not applicable | | Slip-on Cap Sizes | Front 70mm
Rear: 43mm | | Filter Size | Front: 67mm EW
Rear: 40.5mm | | Flange Focal Distance | 84.7mm | | Overall Length | Not Specified by Manufacturer Mount/helicoid add length; lens is ~2" (51mm) in length | | Weight | Not Specified by Manufacturer Mount/helicoid add weight; lens is 9.5 oz (271g) | | | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 6.0 x 3.5 x 3.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 56 owners. Add your rating and experience with the product.
