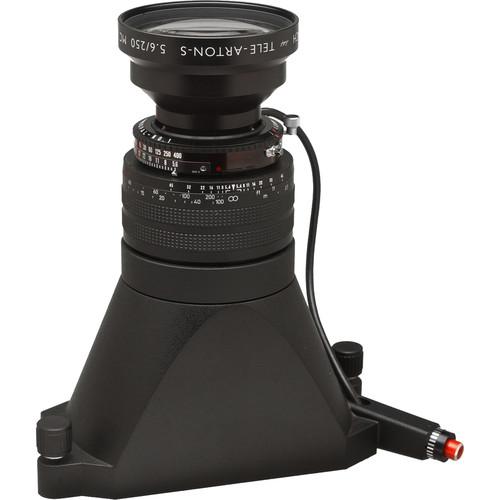

Product description The Linhof Technorama Tele-Xenar 250mm f/5.6 Lens Unit is a long focal length lens, providing a 37.6° angle of view, which is specifically designed for use with the Linhof 617s III Panoramic Camera. The lens is housed within a dedicated lens unit that allows for simple attachment to the 617s III camera body and also incorporates a range of functional elements that pair well with the handheld design of the system. A helical focusing mount is integrated into the lens unit to allow for one-handed, bellows-free, focusing as close as 12.8'. The lens is set in a standard Copal #1 shutter for shutter speeds between 1/400 to 1 sec, as well as B and T settings, and has an attached cable release with soft pressure shutter release. The shutter is uncoupled from the film winding mechanism and must be cocked prior to each exposure.
When in use, a corresponding accessory viewfinder can be used for precise image composition and the lens' distance scales are demarcated in imperial and metric measurements for focusing control. - Compatible with Linhof Technorama 617s III Panoramic Camera.
- Long focal length provides a 37.6° angle of view.
- Lens unit integrates a helical focus mount for one-handed control of focus as close as 12.8'.
- Copal #1 shutter provides shutter speeds from 1/400 to 1 sec. as well as B and T settings.
- Aperture values between f/5.6 to f/64 are available with 1/3 stop demarcated increments.
- Shutter has X-sync contact for flash synchronization at all shutter speeds.
- Soft pressure shutter release is incorporated into design to benefit handling.
- Dedicated viewfinder for precise compositions when lens is in use.
- Lens unit measures 8.7 x 8.8 x 4.3" / 221 x 224 x 110mm.
- Lens produced by Schneider-Kreuznach and inspected by Linhof for assured performance and quality.
In the Box Linhof Technorama Tele-Xenar 250mm f/5.6 Lens Unit Front and Rear Caps Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Linhof Technorama Tele-Xenar 250mm f 5.6 Lens Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLinhof 000915 Specs | Focal Length | 250 mm | | Aperture | Maximum: f/5.6
Minimum: f/64 | | Camera Mount | Linhof Technorama 617s III | | Angle of View @ Infinity | 37.6° | | Image Circle @ Infinity | 190 mm @ f/22 | | Minimum Focus Distance | 12.8' / 3.9 m | | Area of Coverage | 6 x 17 cm | | Optical Design | 5 Elements in 5 Groups | | Shutter | Copal | | Shutter Type | Copal # 1 | | Shutter Speeds | 1 / 400 to 1 second | | Flash Synchronization | at All Speeds | | Flange Focal Distance | 195.1 mm | | DOF Scale | Yes | | Distance Scale | Yes | | PC Outlet | Yes | | Autofocus | No | | Filter Thread | Front: 82 mm | | Dimensions | Approx. 8.70 x 8.82" (221 x 224 mm) | | Weight | 3.28 lb / 1.49 kg | | | | Package Weight | 5.55 lb | | Box Dimensions (LxWxH) | 13.7 x 12.4 x 7.7" |
