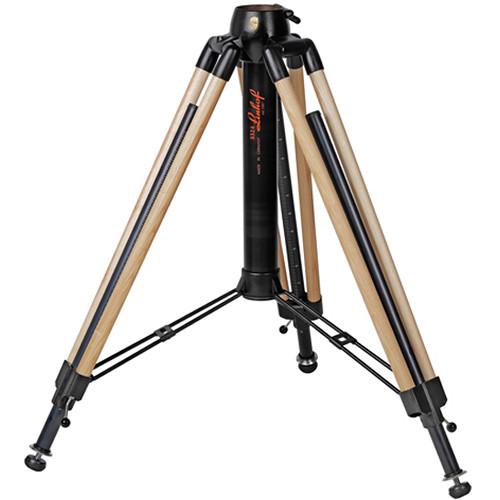

Product description This Vintage Heavy-Duty Pro Tripod from Linhof supports up to 44.1 lb, measures 35.8" when folded, and features three twin-shank, 2-section legs that are constructed using aluminum alloy and oiled, ash wood. The twin-shank design serves to maximize rigidity and vibration resistance. Each leg features a clamping lever as well as an engraved 60cm ruler for secure, precise, and fast positioning. An integrated center brace assembly allows the legs to be opened simultaneously as well as uniformly, and they can be extended and spread to raise the tripod from a minimum height of 32.3" to a maximum height of 54.7". The center brace assembly helps to hold the legs in place, which include rubber feet with twist-out, metal spikes to further enhance stability on a wide variety of surfaces, including soft and uneven soil.
Tripod heads, cameras, lenses, or sport optics can be placed on the Vintage Heavy-Duty Pro Tripod after first connecting a separately-available Linhof 31477 90 to 70mm Tripod Top Plate with 3/8"-16 Mount, a 32964 90 to 70mm Tripod Top Plate with 1/4"-20 Mount, a 31482 Flat Tripod Top Plate with 3/8"-16 Mount, or a 32965 Flat Tripod Top Plate with 1/4"-20 Mount to the tripod. Any one of those top plates can be clamped into the Vintage Heavy-Duty Pro Tripod's durable, cast-iron head. Alternatively, a separately-available Linhof 3755 Large, Geared Centerpost can be installed within the cast-iron head and the center brace assembly. Together, the centerpost and Vintage Heavy-Duty Pro Tripod provide a minimum height of 37.4", a maximum height of 79.1", and further enable precise height adjustments along with geared movements. The 3755 Large, Geared Centerpost also features a clamp head that accommodates a compatible Linhof tripod top plate so that a tripod head, camera, lens, or sport optic can be placed on it. - Use and Handling
-
- Supports up to 44.1 lb
- Tripod heads, cameras, lenses, or sport optics can be attached after first clamping a separately-available Linhof 31477 90 to 70mm Tripod Top Plate with 3/8"-16 Mount, a 32964 90 to 70mm Tripod Top Plate with 1/4"-20 Mount, a 31482 Flat Tripod Top Plate with 3/8"-16 Mount, or a 32965 Flat Tripod Top Plate with 1/4"-20 Mount to the tripod head
- Alternatively, tripod head and center brace assembly accepts a separately-available Linhof 3755 Large, Geared Centerpost which features a clamp for a tripod top plate and further enables precise height adjustments along with geared movements
- Can be set for a minimum height of 32.3" to a maximum height of 54.7", or 37.4" to 79.1" with a separately-available Linhof 3755 Large, Geared Centerpost
- Twin-shank leg design serves to maximize rigidity and vibration resistance
- Legs each feature 2 sections, clamping lever, as well as an engraved 60cm ruler for secure, precise, and fast positioning
- Center brace assembly allows legs to be spread simultaneously as well as uniformly and provides additional support

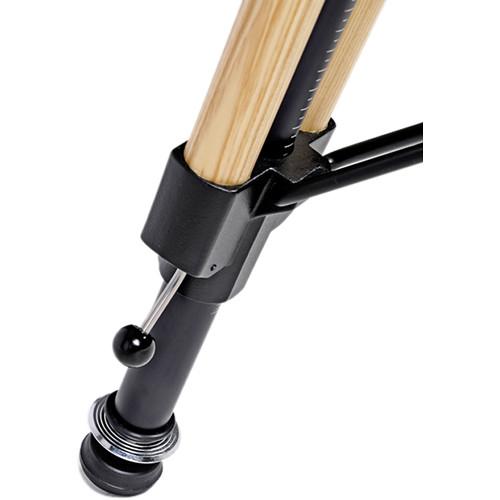

- Rubber feet with twist-out, metal spikes to further enhance stability on a wide variety of surfaces, including soft and uneven soil
- Built-in tripod bubble level
- Weighs 15.9 lb, measures 35.8" when folded
- Construction Details
-
- Aluminum alloy and oiled, ash wood legs

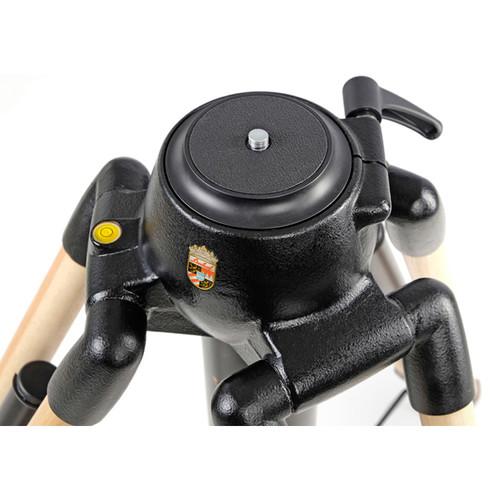

- Durable cast-iron head with clamp for separately-available tripod top plate or geared, centerpost
UPC: 053661093898 In the Box Linhof Vintage Heavy-Duty Pro Tripod Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Linhof Vintage Heavy-Duty Pro Tripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLinhof 3324 Specs | | | Load Capacity | 44.1 lb / 20.0 kg | | Maximum Working Height | 54.7" / 138.9 cm | | Minimum Working Height | 32.3" / 82 cm | | Folded Length | 35.8" / 90.93 cm | | Head Mount Type | None | | Weight | 15.9 lb / 7.21 kg | | Materials | Aluminum Alloy, Cast Iron, Wood | | Bubble Level | Yes | | | | Leg Lock Type | Clamping Lever | | Independent Leg Spread | No | | Leg Sections | 2 | | Feet Features | Rubber, Spiked |
