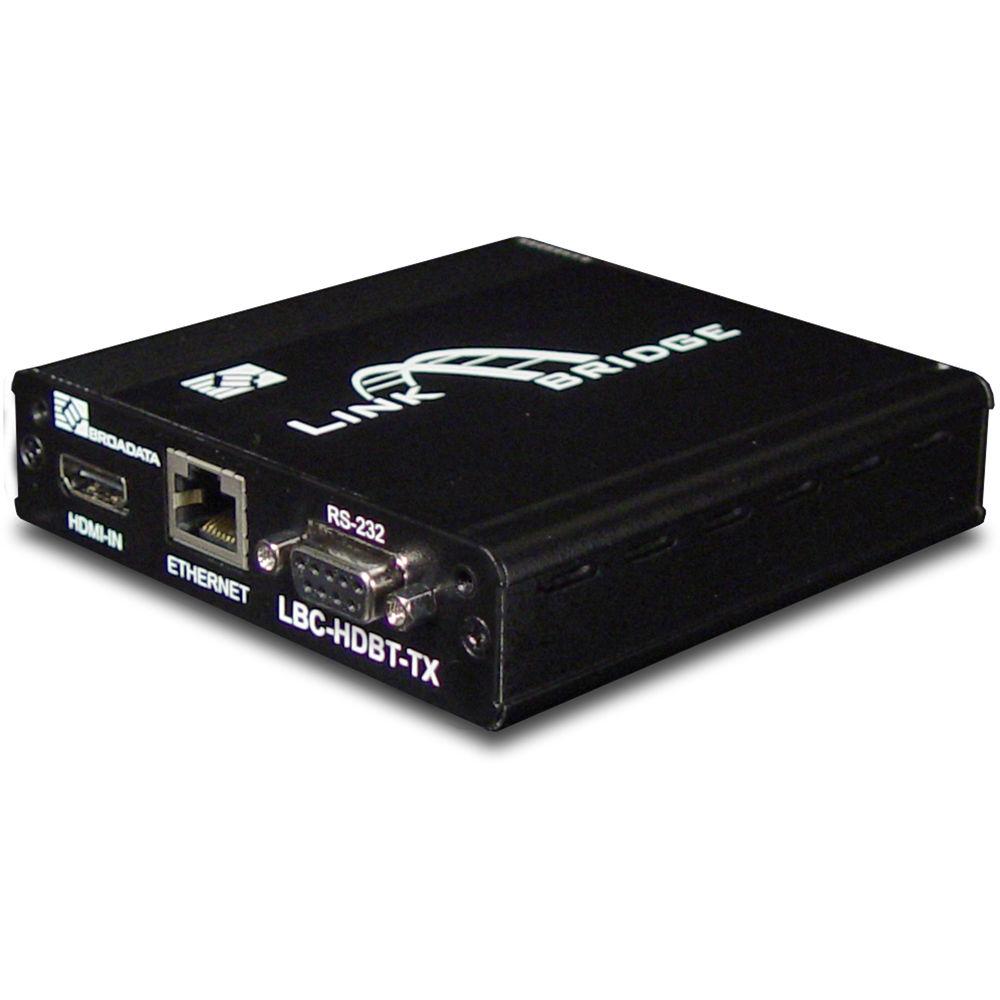

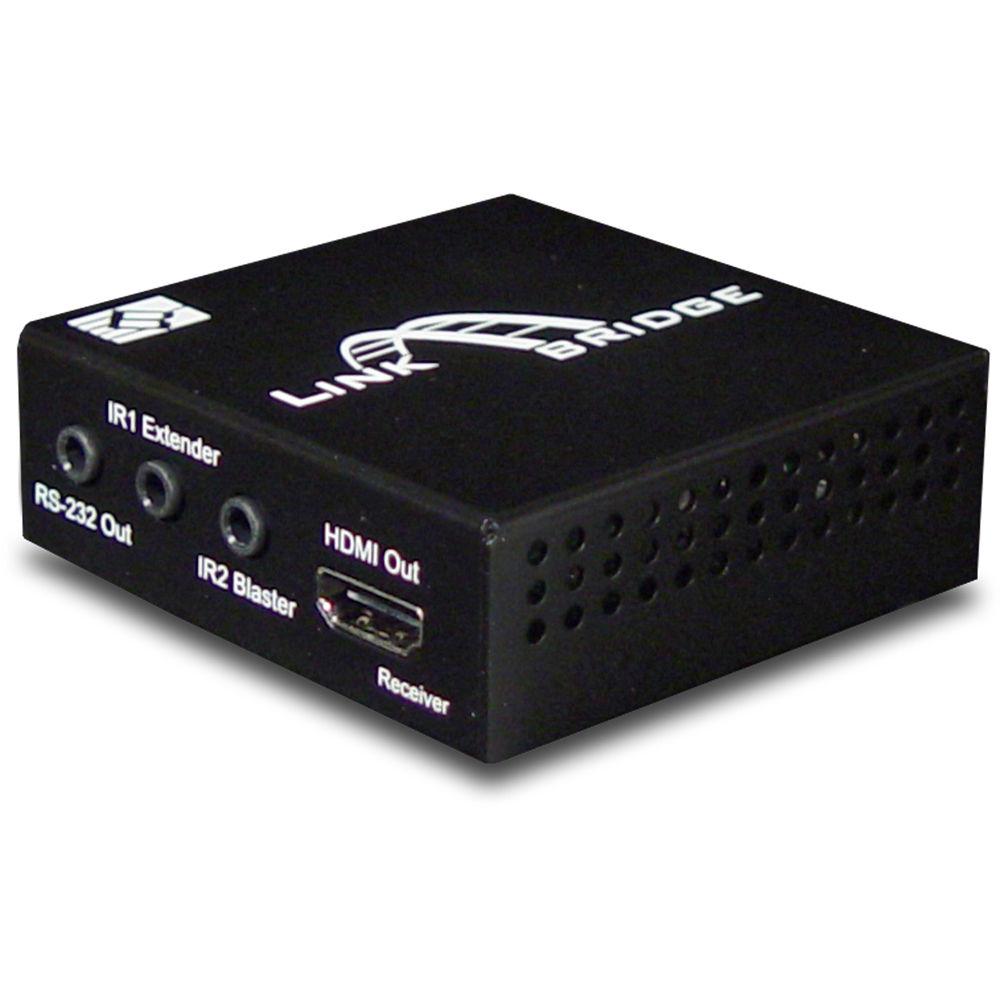

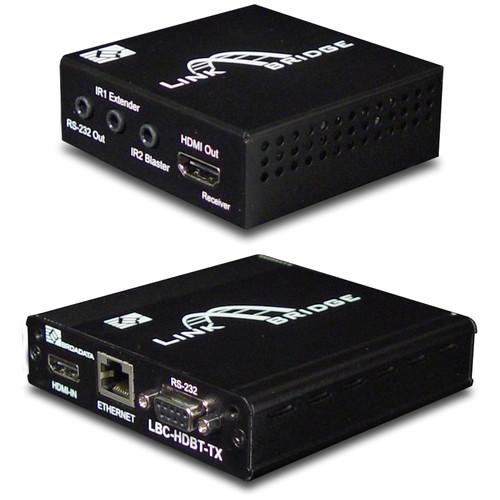

Product description The Link Bridge Kit includes a 3Play HDBaseT Lite HDMI Transmitter and an HDBaseT Lite HDMI Receiver. The system carries unidirectional HDMI, bidirectional IR, and bidirectional RS-232 data signals a maximum distance of 197' over a single Cat5e/6 cable. - 4Play HDBaseT Transmitter with US Power Supply & IR Receiver Cable Link Bridge's compact 4Play HDBaseT Transmitter makes it simple to integrate unidirectional video with up to DCI 4K resolution (4096 x 2160) and audio, as well as bidirectional control and power over the same HDBaseT interface. Using this transmitter with a compatible 4Play HDBaseT receiver allows you to send all four aspects of the 4Play designation over 196' using a single twisted pair Cat5e/6 cable without any quality loss, as there is no conversion or processing of the signals. Since power is also transmitted, only the transmitter or the receiver needs to be connected to mains power; the other will be powered over the HDBaseT connection.
A simple setup would involve sending an HDMI A/V signal from the transmitter near the A/V equipment to the connected receiver near a projector or monitor. Using the control connections and IR capabilities, control of the A/V equipment can still be maintained. The actual unit is compact and unobtrusive for use in A/V closets or presentation rooms. - 4Play HDBaseT Receiver with US Power Supply & IR Transmitter Cable Link Bridge's compact 4Play HDBaseT Receiver makes it simple to integrate unidirectional video with up to DCI 4K resolution (4096 x 2160) and audio, as well as bidirectional control and power over the same HDBaseT interface. Using this receiver with a compatible 4Play HDBaseT transmitter allows you to send all four aspects of the 4Play designation over 196' using a single twisted pair Cat5e/6 cable without any quality loss, as there is no conversion or processing of the signals. Since power is also transmitted, only the transmitter or the receiver needs to be connected to mains power; the other will be powered over the HDBaseT connection.
A simple setup would involve sending an HDMI A/V signal from the transmitter near the A/V equipment to the connected receiver near a projector or monitor. Using the control connections and IR capabilities, control of the A/V equipment can still be maintained. The actual unit is compact and unobtrusive for use in A/V closets or presentation rooms. In the Box Bundle Items 4Play HDBaseT Transmitter with US Power Supply & IR Receiver Cable zeeewexs 4Play HDBaseT Receiver with US Power Supply & IR Transmitter Cable Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Bridge 3Play HDBaseT Lite HDMI Transmitter & HDBaseT Lite HDMI Receiver Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 4Play HDBaseT Transmitter with US Power Supply & IR Receiver Cable
| Video | Resolution: Up to 4096 x 2160p24, 3840 x 2160p30
Connectors: HDMI
Protocol Support: DDC, EDID, HDCP | | Control | Signal Format: IR
Data Rate: 30-50 kHz
Connector: 3.5 mm Stereo I/O
Signal Format: RS-232
Data Rate: Up to 57.6 kBaud
Connector: DB9 | | Transmission | Type: HDBaseT
Cable Type: Cat5e/6
Connector: RJ45 | | Power Consumption | 24 VDC, 1.25 A (max) | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Humidity | 0 to 95% RH, non-condensing | | Dimensions | 2.8 x 2.8 x 1.0" (71 x 71 x 25 mm) | | Weight | Not specified by manufacturer | - 4Play HDBaseT Receiver with US Power Supply & IR Transmitter Cable
| Video | Resolution: Up to 4096 x 2160p24, 3840 x 2160p30
Connectors: HDMI
Protocol Support: DDC, EDID, HDCP | | Control | Signal Format: IR
Data Rate: 30-50 kHz
Connector: 3.5 mm Stereo I/O
Signal Format: RS-232
Data Rate: Up to 57.6 kBaud
Connector: DB9 | | Transmission | Type: HDBaseT
Cable Type: Cat5e/6
Connector: RJ45 | | Power Consumption | 24 VDC, 1.25 A (max) | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Humidity | 0 to 95% RH, non-condensing | | Dimensions | 2.8 x 2.8 x 1.0" (71 x 71 x 25 mm) | | Weight | Not specified by manufacturer |
