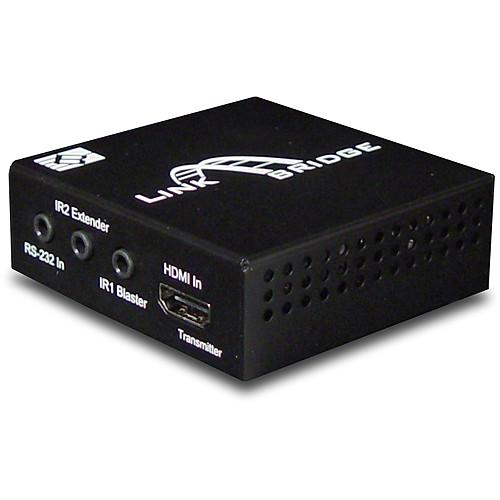

User Manual for Link Bridge 4Play HDBaseT Transmitter with US Power Supply & IR Receiver Cable Click to enlarge the picture
Contents of the user manual for the Link Bridge 4Play HDBaseT Transmitter with
- Product category: Video Extenders & Repeaters Link Bridge
- Brand: Link Bridge
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Link Bridge Video Extenders & Repeaters
|
User manual for the Link Bridge 4Play HDBaseT Transmitter with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Link Bridge product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Link Bridge user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Link Bridge product will considerably shorten its lifespan!
|
Product description Link Bridge's compact 4Play HDBaseT Transmitter makes it simple to integrate unidirectional video with up to DCI 4K resolution (4096 x 2160) and audio, as well as bidirectional control and power over the same HDBaseT interface. Using this transmitter with a compatible 4Play HDBaseT receiver allows you to send all four aspects of the 4Play designation over 196' using a single twisted pair Cat5e/6 cable without any quality loss, as there is no conversion or processing of the signals. Since power is also transmitted, only the transmitter or the receiver needs to be connected to mains power; the other will be powered over the HDBaseT connection.
A simple setup would involve sending an HDMI A/V signal from the transmitter near the A/V equipment to the connected receiver near a projector or monitor. Using the control connections and IR capabilities, control of the A/V equipment can still be maintained. The actual unit is compact and unobtrusive for use in A/V closets or presentation rooms. In the Box Link Bridge 4Play HDBaseT Transmitter with US Power Supply & IR Receiver Cable US Power Supply IR Receiver Cable Mounting Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Bridge 4Play HDBaseT Transmitter with US Power Supply & IR Receiver Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Bridge LBC-HDBT-T-LITE Specs | Video | Resolution: Up to 4096 x 2160p24, 3840 x 2160p30
Connectors: HDMI
Protocol Support: DDC, EDID, HDCP | | Control | Signal Format: IR
Data Rate: 30-50 kHz
Connector: 3.5 mm Stereo I/O
Signal Format: RS-232
Data Rate: Up to 57.6 kBaud
Connector: DB9 | | Transmission | Type: HDBaseT
Cable Type: Cat5e/6
Connector: RJ45 | | Power Consumption | 24 VDC, 1.25 A (max) | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Humidity | 0 to 95% RH, non-condensing | | Dimensions | 2.8 x 2.8 x 1.0" (71 x 71 x 25 mm) | | Weight | Not specified by manufacturer |
