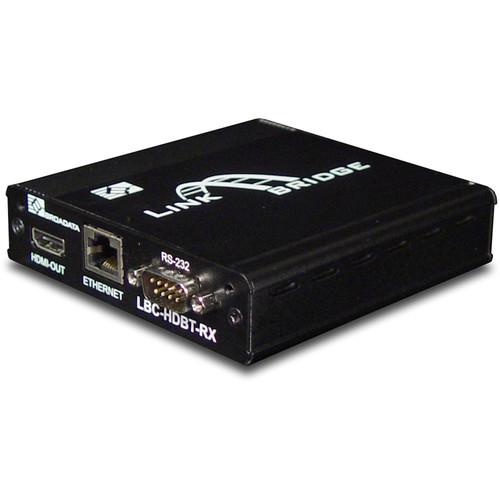

User Manual for Link Bridge 5-Play HDBaseT Receiver with US Power Supply & IR Transmitter Cable Click to enlarge the picture
Contents of the user manual for the Link Bridge 5-Play HDBaseT Receiver with
- Product category: Video Extenders & Repeaters Link Bridge
- Brand: Link Bridge
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Link Bridge Video Extenders & Repeaters
|
User manual for the Link Bridge 5-Play HDBaseT Receiver with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Link Bridge product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Link Bridge user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Link Bridge product will considerably shorten its lifespan!
|
Product description Link Bridge's 5-Play HDBaseT Receiver makes it simple to integrate unidirectional video and audio as well as bidirectional control, LAN, and power over the same HDBaseT interface. Using this receiver with a compatible 5-Play HDBaseT transmitter allows you to send all five aspects of the 5-Play designation over 328' using a single twisted pair Cat5e/6 cable without any quality loss, as there is no conversion or processing of the signals. Since power is also transmitted, either the transmitter or the receiver needs to be connected to mains power; the other will be powered over the HDBaseT connection.
A simple setup would involve sending an HDMI A/V signal from the transmitter near the A/V equipment to the connected receiver near a projector or monitor. Using the control connections and IR capabilities, control of the A/V equipment can still be maintained. An Ethernet signal can be passed using the available LAN connection for accessing critical content, or for a computer network connection. In the Box Link Bridge 5-Play HDBaseT Receiver with US Power Supply & IR Transmitter Cable US Power Supply IR Transmitter Cable Mounting Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Bridge 5-Play HDBaseT Receiver with US Power Supply & IR Transmitter Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Bridge LBC-HDBT-R Specs | Video | Resolution: Up to 1080p60 or UXGA (1920 x 1200) 60 Hz
Connectors: HDMI
Protocol Support: DDC, EDID, HDCP | | Control | Signal Format: IR
Data Rate: 30-50 kHz
Connector: 3.5mm Stereo I/O | | Ethernet | Signal Format: LAN
Data Rate: 100 Mbps
Connector: RJ45 | | Transmission | Type: HDBaseT
Cable Type: Cat5e/Cat6
Connector: RJ45 | | Power Consumption | 24 VDC, 1.25 A (max) | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Dimensions | 4 x 4 x 1" / 102 x 100 x 25 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 9.9 x 5.5 x 2.1" |
