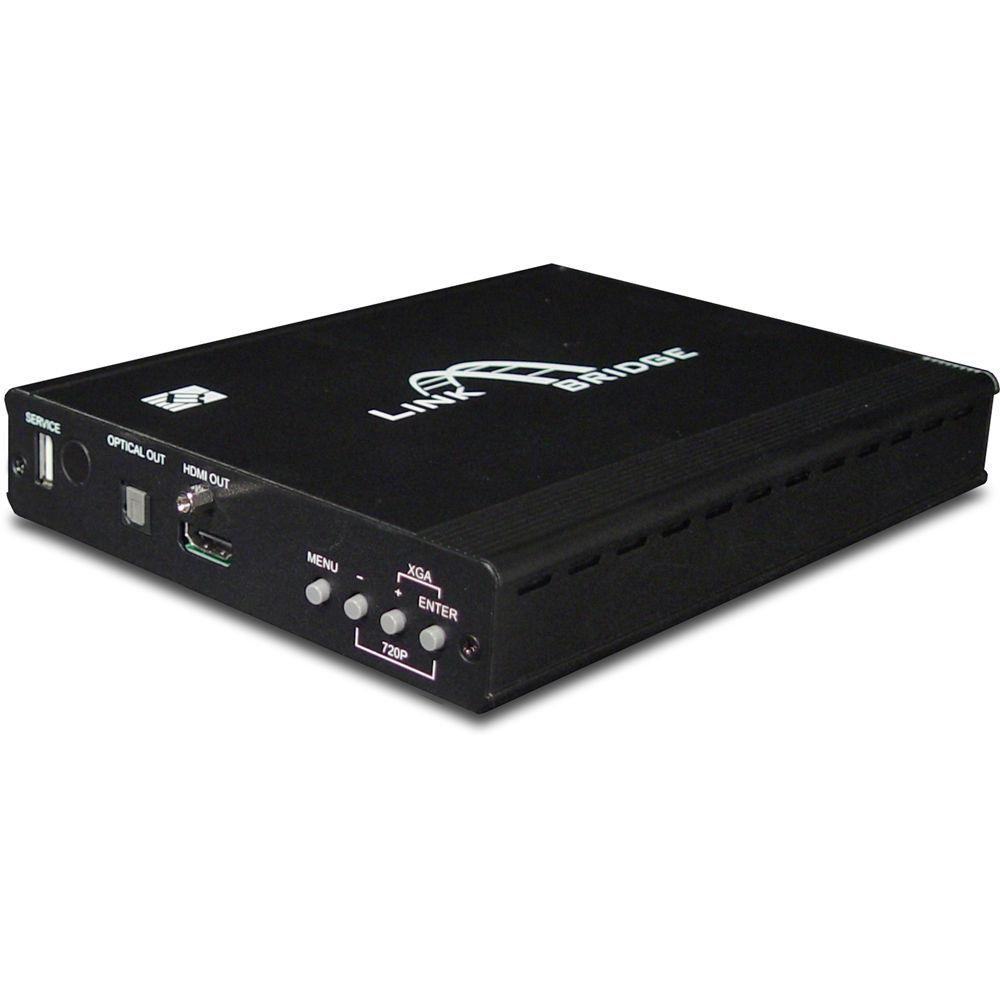

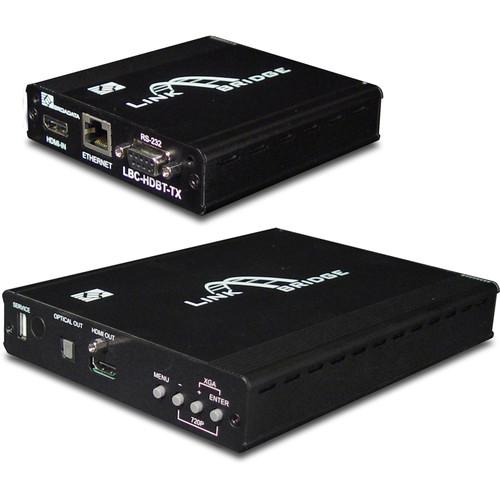

Product description The Link Bridge Kit includes a 5Play HDBaseT HDMI Transmitter and 5Play Auto-Scaling Receiver. It carries unidirectional HDMI and bidirectional IR/RS-232/PoH/LAN signals a maximum distance of 328' over a single Cat5e/6 cable. - LBC-H-R-SCL HDBaseT Receiver/Scaler (Full HD & WUXGA) Link Bridge's LBC-H-R-SCL HDBaseT Receiver/Scaler can be easily integrated into an existing HDBaseT setup. Its HDBaseT input breaks out into an HDMI output, a separate optical audio output, a bidirectional RJ-45 LAN interface, and a bidirectional RS-232 interface which also supports IR control.

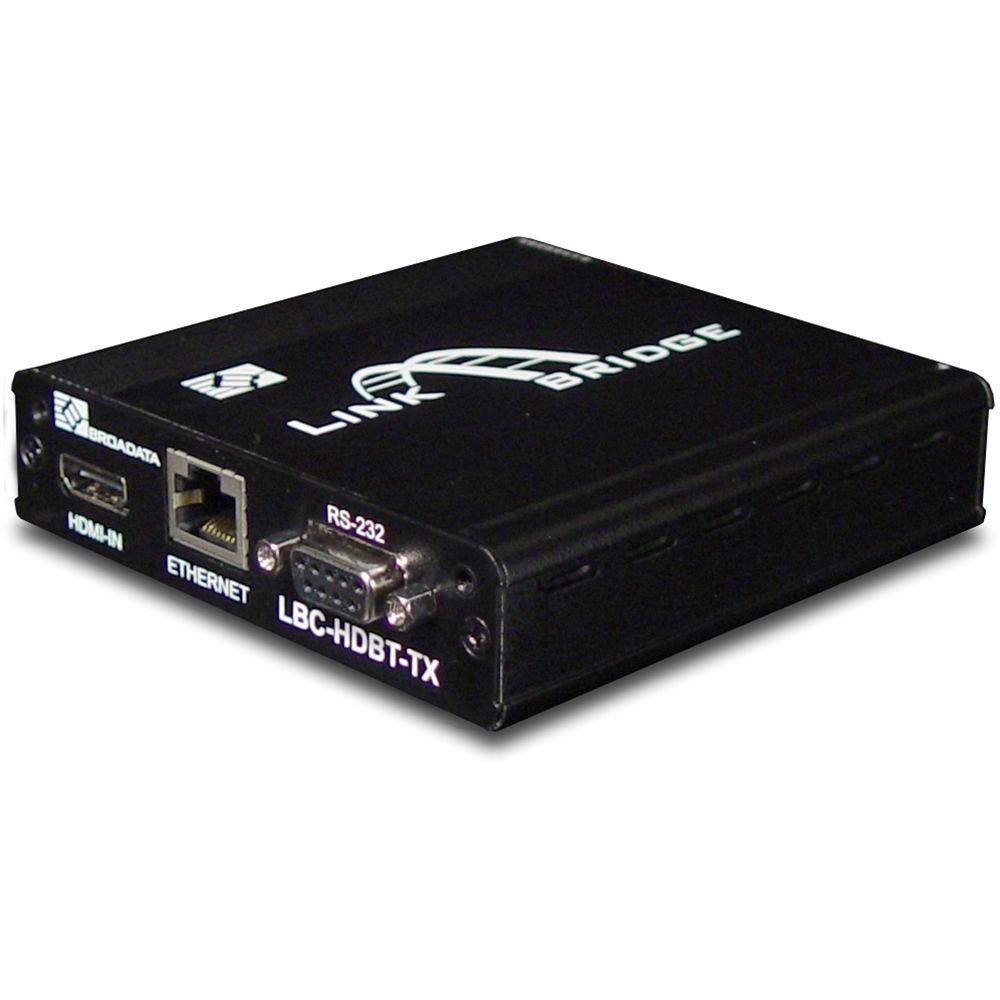

Incoming video signals can be adjusted and scaled using the OSD menu system. Other image controls include contrast, brightness, hue, saturation, sharpness, RGB level, and scan size. Since the HDBaseT signal contains an uncompressed, unmodified HDMI signal, there is no difference in quality from the input to the output, and all data and protection protocols are maintained. Resolutions up to 1920 x 1200 (WUXGA) are supported. This is a 5Play device, which means it can carry HDMI, LAN, IR, RS232, and up to 100W of power over 328' using a single HDBaseT twisted-pair interface. - 5-Play HDBaseT Transmitter with US Power Supply & IR Receiver Cable Link Bridge's 5-Play HDBaseT Transmitter makes it simple to integrate unidirectional video and audio as well as bidirectional control, LAN, and power over the same HDBaseT interface. Using this transmitter with a compatible 5-Play HDBaseT receiver allows you to send all five aspects of the 5-Play designation over 328' using a single twisted pair Cat5e/6 cable without any quality loss, as there is no conversion or processing of the signals. Since power is also transmitted, either the transmitter or the receiver needs to be connected to mains power; the other will be powered over the HDBaseT connection.
A simple setup would involve sending an HDMI A/V signal from the transmitter near the A/V equipment to the connected receiver near a projector or monitor. Using the control connections and IR capabilities, control of the A/V equipment can still be maintained. An Ethernet signal can be passed using the available LAN connection for accessing critical content, or for a computer network connection. In the Box Bundle Items LBC-H-R-SCL HDBaseT Receiver/Scaler (Full HD & WUXGA) zeeewexs 5-Play HDBaseT Transmitter with US Power Supply & IR Receiver Cable Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Bridge 5Play HDBaseT HDMI Transmitter & 5Play Auto-Scaling Receiver Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - LBC-H-R-SCL HDBaseT Receiver/Scaler (Full HD & WUXGA)
| Connectors | 1 x HDMI
1 x RJ45, 100 Mbps LAN Network
2 x 3.5 mm stereo plug, IR
1 x 9-pin Sub-D, RS-232 port | | Video Resolution Supported | Up to 1080p, or UXGA (1920 x 1200) | | IR | 30-50 kHz data rate | | RS232 | Up to 57.6 kBaud | | Transmission | Type: HDBaseT
Cable Type: Cat5e/6
Connector: RJ45 | | Power Consumption | 24 VDC, 2.7 A (max) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Dimensions | 5.7 x 7.9 x 1.2" (14.5 x 20.1 x 3.0 cm) | | Weight | Not specified by the manufacturer | | | | Box Dimensions (LxWxH) | 11.9 x 10.2 x 2.9" | - 5-Play HDBaseT Transmitter with US Power Supply & IR Receiver Cable
| Video | Resolution: Up to 1080p60 or UXGA (1920 x 1200) 60 Hz
Connectors: HDMI
Protocol Support: DDC, EDID, HDCP | | Control | Signal Format: IR
Data Rate: 30-50 kHz
Connector: 3.5mm Stereo I/O | | Ethernet | Signal Format: LAN
Data Rate: 100 Mbps
Connector: RJ45 | | Transmission | Type: HDBaseT
Cable Type: Cat5e/Cat6
Connector: RJ45 | | Power Consumption | 24 VDC, 1.25 A (max) | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Dimensions | 4 x 4 x 1" / 102 x 100 x 25 mm | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 10.0 x 5.4 x 2.3" |
