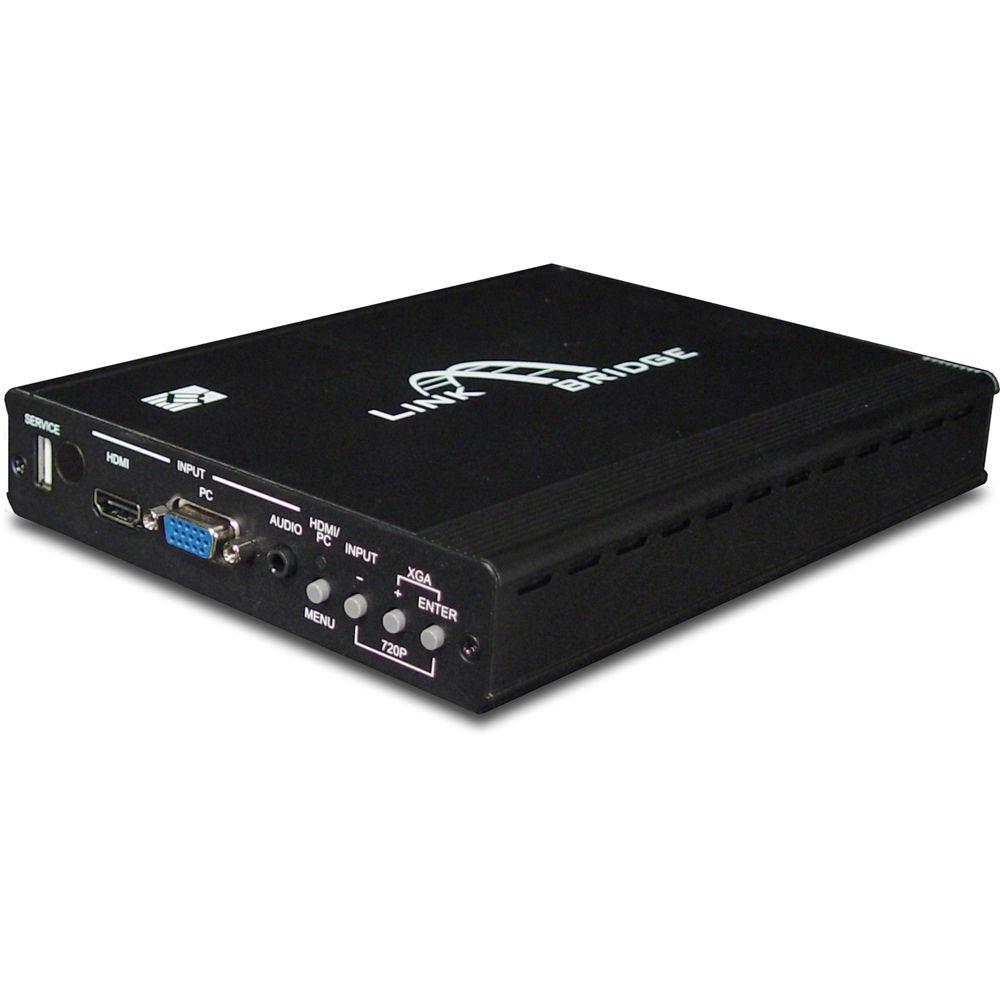

Product description This Link Bridge Kit includes a 5Play HDBaseT HDMI/VGA Scaling Transmitter and an HDBaseT HDMI Receiver. The transmitter supports resolutions up to 1920 x 1200 @ 60Hz, sending HDMI/VGA, IR, RS-232, Ethernet, and PoH (Power over HDBT) signals a maximum distance of 328' to the HDBaseT receiver over a single Cat5e/6 cable. - HDMI/VGA HDBaseT Transmitter and Scaler Link Bridge's HDMI/VGA HDBaseT Transmitter and Scaler can be easily integrated into an existing HDBaseT or HDMI setup. Inputs on this unit include HDMI and VGA video along with analog stereo audio. Bidirectional connections for LAN and RS232 machine/IR control are also offered. Incoming VGA signals can be scaled in order to fit the HD video stream using the OSD menu system. Since the signal is uncompressed, there is no quality difference from the input to the output. Other image controls offered include contrast, brightness, hue,saturation, sharpness, RGB level, and scan size. Resolutions up to 1920 x 1200 (WUXGA) are supported. This is a 5Play device, which means it can carry HDMI, LAN, IR, RS232, and up to 100W of power over 328' using a single HDBaseT twisted-pair interface.

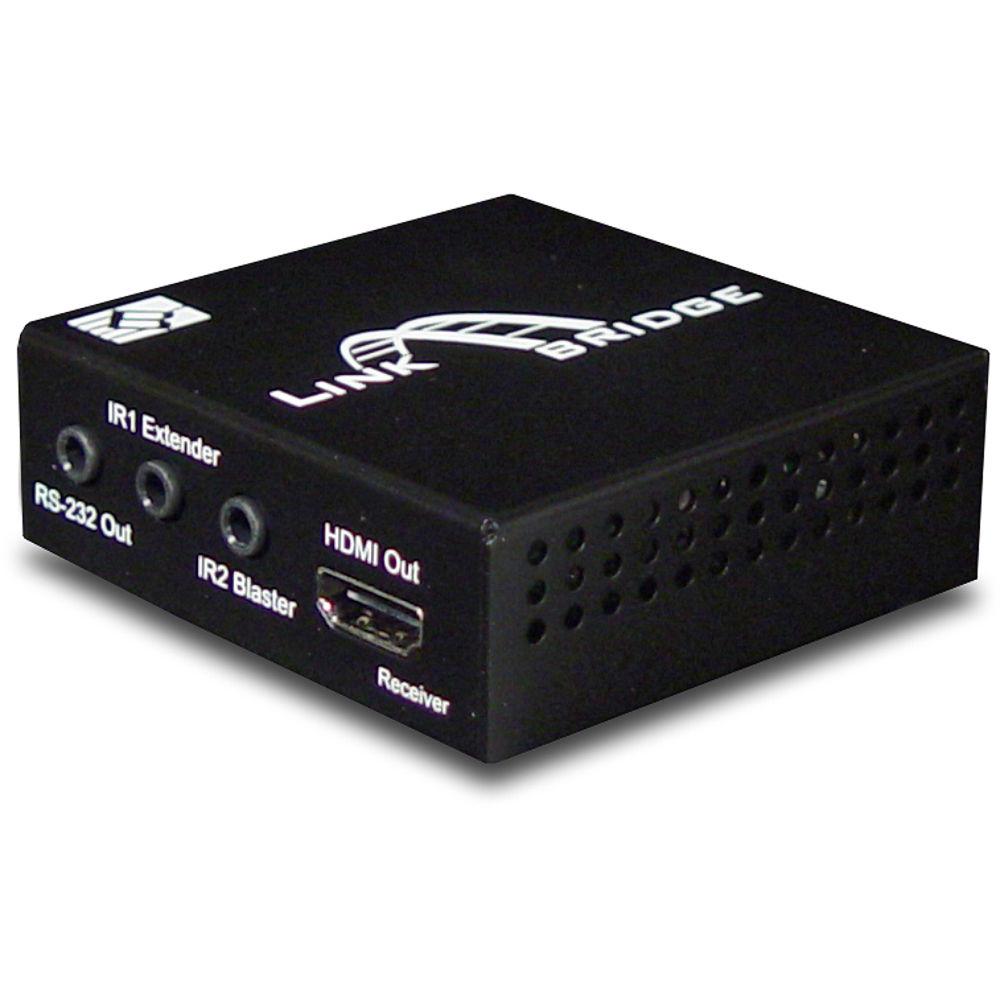

- 5-Play HDBaseT Receiver with US Power Supply & IR Transmitter Cable Link Bridge's 5-Play HDBaseT Receiver makes it simple to integrate unidirectional video and audio as well as bidirectional control, LAN, and power over the same HDBaseT interface. Using this receiver with a compatible 5-Play HDBaseT transmitter allows you to send all five aspects of the 5-Play designation over 328' using a single twisted pair Cat5e/6 cable without any quality loss, as there is no conversion or processing of the signals. Since power is also transmitted, either the transmitter or the receiver needs to be connected to mains power; the other will be powered over the HDBaseT connection.
A simple setup would involve sending an HDMI A/V signal from the transmitter near the A/V equipment to the connected receiver near a projector or monitor. Using the control connections and IR capabilities, control of the A/V equipment can still be maintained. An Ethernet signal can be passed using the available LAN connection for accessing critical content, or for a computer network connection. In the Box Bundle Items HDMI/VGA HDBaseT Transmitter and Scaler zeeewexs 5-Play HDBaseT Receiver with US Power Supply & IR Transmitter Cable Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Bridge 5Play HDBaseT HDMI VGA Scaling Transmitter & HDBaseT HDMI Receiver Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - HDMI/VGA HDBaseT Transmitter and Scaler
| Video | Resolution: Up to 1080p60 or UXGA (1920 x 1200) 60 Hz
Connectors: VGA, HDMI
Protocol Support: DDC, EDID, HDCP | | Audio | Channels: 2
Operating Mode: Unbalanced stereo
Input Connector: 3.5 mm Mini stereo | | Control | Signal Format: RS-232
Data Rate: Up to 57.6 kBaud
Connector: DB9 | | Transmission | Type: HDBaseT
Cable Type: Cat5e/Cat6
Connector: RJ45 | | Power Consumption | 24 VDC, 2.7 A (max) | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions | 5.7 x 7.9 x 1.2" / 145 x 201 x 30 mm | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 13.6 x 10.5 x 4.2" | - 5-Play HDBaseT Receiver with US Power Supply & IR Transmitter Cable
| Video | Resolution: Up to 1080p60 or UXGA (1920 x 1200) 60 Hz
Connectors: HDMI
Protocol Support: DDC, EDID, HDCP | | Control | Signal Format: IR
Data Rate: 30-50 kHz
Connector: 3.5mm Stereo I/O | | Ethernet | Signal Format: LAN
Data Rate: 100 Mbps
Connector: RJ45 | | Transmission | Type: HDBaseT
Cable Type: Cat5e/Cat6
Connector: RJ45 | | Power Consumption | 24 VDC, 1.25 A (max) | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Dimensions | 4 x 4 x 1" / 102 x 100 x 25 mm | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 9.9 x 5.5 x 2.1" |
