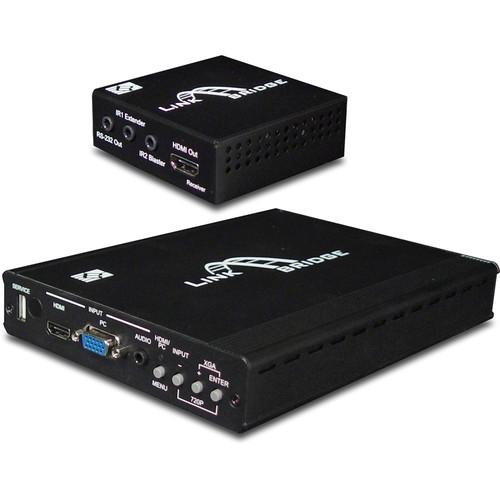

User Manual for Link Bridge 5Play HDBaseT HDMI VGA Scaling Transmitter & HDBaseT Lite Receiver Kit Click to enlarge the picture
Contents of the user manual for the Link Bridge 5Play HDBaseT HDMI VGA
- Product category: Video Extenders & Repeaters Link Bridge
- Brand: Link Bridge
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Link Bridge Video Extenders & Repeaters
 |
User manual for the Link Bridge 5Play HDBaseT HDMI VGA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Link Bridge product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Link Bridge user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Link Bridge product will considerably shorten its lifespan!
|

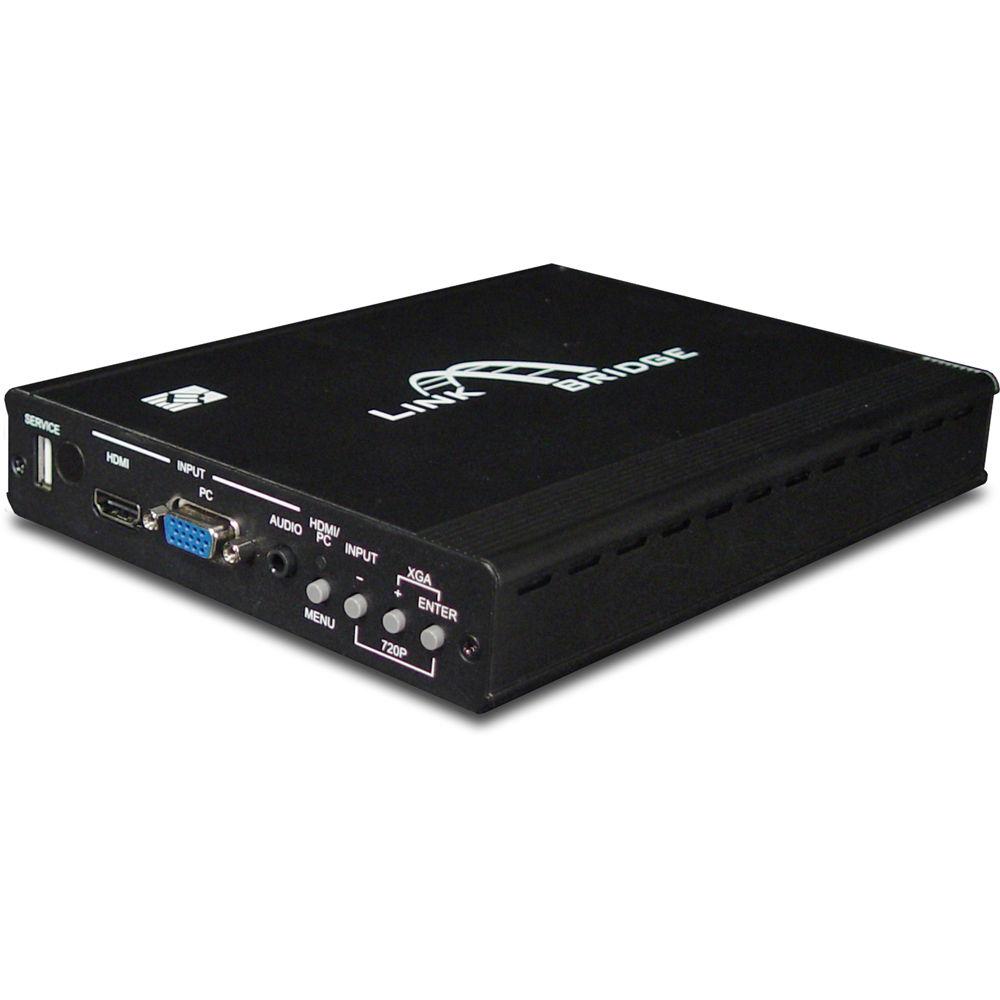

Product description This Link Bridge Kit includes a 5Play HDBaseT HDMI/VGA Scaling Transmitter and an HDBaseT Lite Receiver. The transmitter supports resolutions up to 1920 x 1200 @ 60Hz, sending HDMI/VGA, IR, RS-232, Ethernet, and PoH (Power over HDBT) signals a maximum distance of 328' over one Cat5e/6 cable. The HDBaseT Lite receiver provides support for video/audio, IR, and data signals over Cat5e/6 at a maximum distance of 197'. - HDMI/VGA HDBaseT Transmitter and Scaler Link Bridge's HDMI/VGA HDBaseT Transmitter and Scaler can be easily integrated into an existing HDBaseT or HDMI setup. Inputs on this unit include HDMI and VGA video along with analog stereo audio. Bidirectional connections for LAN and RS232 machine/IR control are also offered. Incoming VGA signals can be scaled in order to fit the HD video stream using the OSD menu system. Since the signal is uncompressed, there is no quality difference from the input to the output. Other image controls offered include contrast, brightness, hue,saturation, sharpness, RGB level, and scan size. Resolutions up to 1920 x 1200 (WUXGA) are supported. This is a 5Play device, which means it can carry HDMI, LAN, IR, RS232, and up to 100W of power over 328' using a single HDBaseT twisted-pair interface.

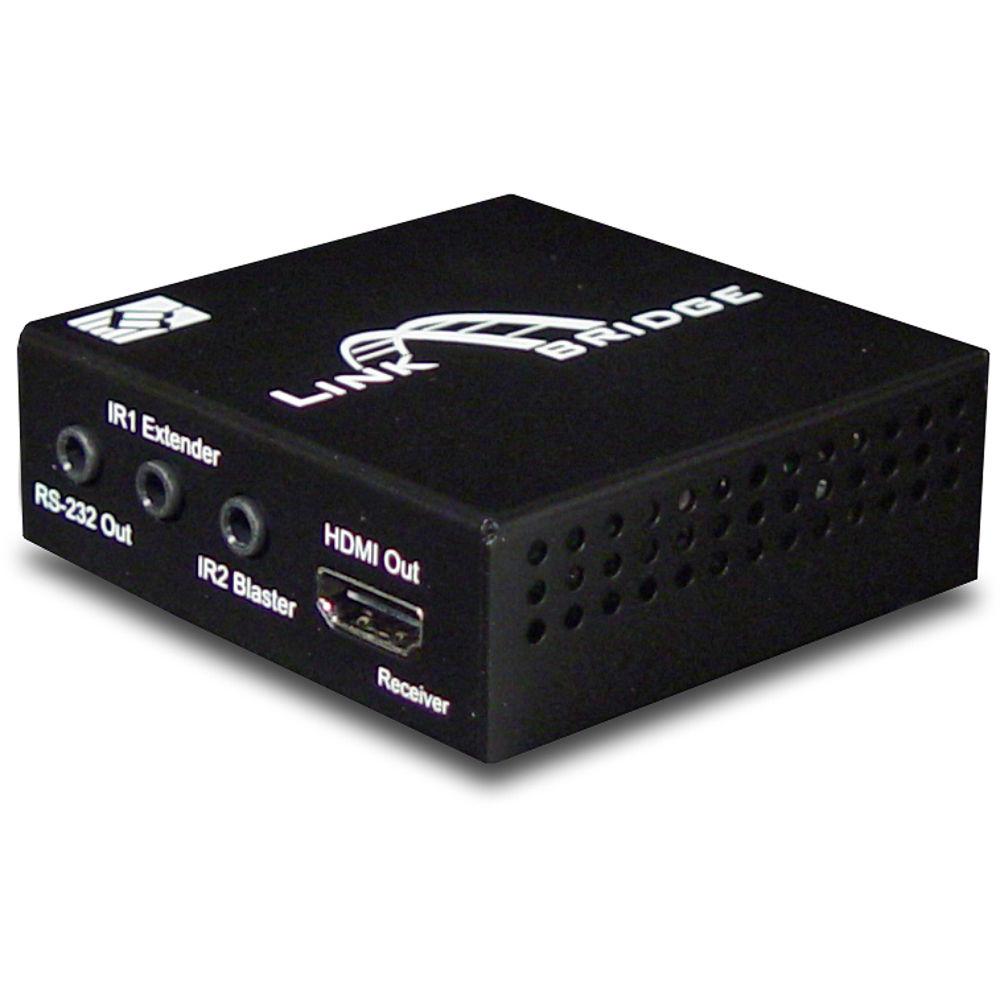

- 4Play HDBaseT Receiver with US Power Supply & IR Transmitter Cable Link Bridge's compact 4Play HDBaseT Receiver makes it simple to integrate unidirectional video with up to DCI 4K resolution (4096 x 2160) and audio, as well as bidirectional control and power over the same HDBaseT interface. Using this receiver with a compatible 4Play HDBaseT transmitter allows you to send all four aspects of the 4Play designation over 196' using a single twisted pair Cat5e/6 cable without any quality loss, as there is no conversion or processing of the signals. Since power is also transmitted, only the transmitter or the receiver needs to be connected to mains power; the other will be powered over the HDBaseT connection.
A simple setup would involve sending an HDMI A/V signal from the transmitter near the A/V equipment to the connected receiver near a projector or monitor. Using the control connections and IR capabilities, control of the A/V equipment can still be maintained. The actual unit is compact and unobtrusive for use in A/V closets or presentation rooms. In the Box Bundle Items HDMI/VGA HDBaseT Transmitter and Scaler tvbdbscqdr 4Play HDBaseT Receiver with US Power Supply & IR Transmitter Cable Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Bridge 5Play HDBaseT HDMI VGA Scaling Transmitter & HDBaseT Lite Receiver Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - HDMI/VGA HDBaseT Transmitter and Scaler
| Video | Resolution: Up to 1080p60 or UXGA (1920 x 1200) 60 Hz
Connectors: VGA, HDMI
Protocol Support: DDC, EDID, HDCP | | Audio | Channels: 2
Operating Mode: Unbalanced stereo
Input Connector: 3.5 mm Mini stereo | | Control | Signal Format: RS-232
Data Rate: Up to 57.6 kBaud
Connector: DB9 | | Transmission | Type: HDBaseT
Cable Type: Cat5e/Cat6
Connector: RJ45 | | Power Consumption | 24 VDC, 2.7 A (max) | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions | 5.7 x 7.9 x 1.2" / 145 x 201 x 30 mm | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 13.6 x 10.5 x 4.2" | - 4Play HDBaseT Receiver with US Power Supply & IR Transmitter Cable
| Video | Resolution: Up to 4096 x 2160p24, 3840 x 2160p30
Connectors: HDMI
Protocol Support: DDC, EDID, HDCP | | Control | Signal Format: IR
Data Rate: 30-50 kHz
Connector: 3.5 mm Stereo I/O
Signal Format: RS-232
Data Rate: Up to 57.6 kBaud
Connector: DB9 | | Transmission | Type: HDBaseT
Cable Type: Cat5e/6
Connector: RJ45 | | Power Consumption | 24 VDC, 1.25 A (max) | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Humidity | 0 to 95% RH, non-condensing | | Dimensions | 2.8 x 2.8 x 1.0" (71 x 71 x 25 mm) | | Weight | Not specified by manufacturer |
