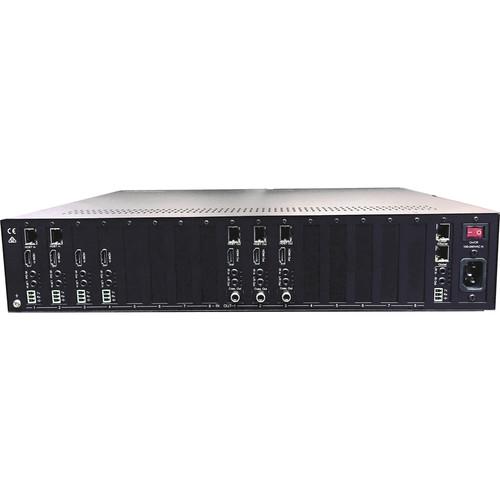

Product description The 2 RU 8 x 8 Modular Matrix Switcher from Link Bridge is designed to be used with HDMI and HDBaseT I/O cards (sold separately). The input cards have options for HDMI-only or combined HDMI/HDBaseT input, while the output cards come with mirrored HDMI and HDBaseT outputs with options for 229.7' or 328' reach. It supports up to 4K2K UHD resolutions, all 3D formats, and multi-channel digital audio formats such as Dolby, True HD, and DTS-HD Master Audio. - HDMI 1.4 and HDCP 1.4 compliant
- I/O cards (sold separately) come with embedded or de-embedded L/R audio
- Available with HDBaseT based IR, RS-232, and Ethernet control paths
- Capable of powering remote HDBaseT receivers and transmitters
- User configurable EDID management for smooth system integration of sources and displays
- Multiple control options including panel buttons, IR remote control, RS-232 control, and TCP/IP control
- Comes with 2 RU modular design, flexible input, and output cards selection
In the Box Link Bridge 8 x 8 HDMI HDBaseT Modular Matrix Switcher (Without Cards, 2 RU) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Bridge 8 x 8 HDMI HDBaseT Modular Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Bridge LBS-MSW88 Specs | Array Size | Up to 8 x 8 (configurable by each I/O port) | | Control | 2 x Ethernet ports, RJ45
1 x Global IR 1/8" / 3.5 mm jack, input/output
1 x 3-pin Master RS-232 Phoenix terminal port | | Compatibility | LBS-MSW88-HI, LBS-MSW88-HTI, LBS-MSW88-HTO1, and LBS-MSW88-HTO2 input/output cards | | Power Supply | 100 to 240 VAC | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Dimensions | 17.32 x 3.43 x 14.09" / 43.99 x 8.71 x 35.78 cm | | Weight | 22 lb / 9.98 kg approx. |
