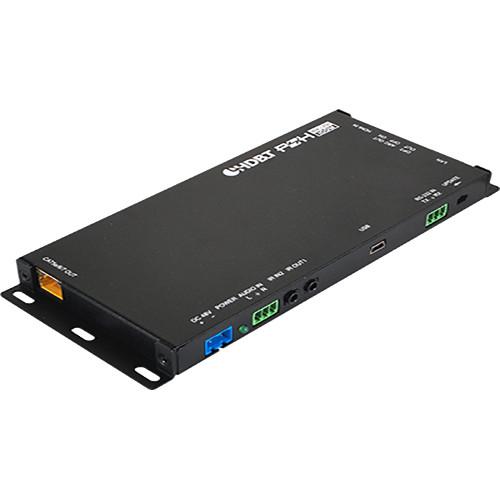

Product description The HDBaseT 2.0 HDMI Receiver from Link Bridge receives HDMI signals up to 328’ using a single twisted pair Cat5e/6 cable without any quality loss. It provides fully uncompressed video & audio, receives 48V power, and supports true DDC/EDID/HDCP transmission. -
- Receives HDMI signals up to 328’ over single Cat5e/6 cable
- Compliant to HDBaseT 2.0 specs
- Supports full HDTV video resolutions up to 4K2K @ 30Hz
- Fully uncompressed video & audio provides zero loss of quality
- Supports true DDC/EDID/HDCP transmission
- Video/Audio, IR, Data, Ethernet, USB, ARC transmission over 1 Cat5e/6 cable
- 48V PoH with PSE/TX
- RX-PD receives power
- HDMI 1.4 and HDCP 2.2 compliant
- Supports both RS-232 and IR control data
In the Box Link Bridge HDBaseT 2.0 HDMI Receiver with 48V POH (328') Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Bridge HDBaseT 2.0 HDMI Receiver with 48V POH in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Bridge LBC-HDBT2-R-48 Specs | | | HDMI | Version 1.4 with 3D, 4K/2K support | | Video Resolution | Up to 4K2K @ 30Hz | | Protocol | DDC/EDID capable, HDCP 2:2 | | Video Bandwidth | 300 MHz / 10.2 Gb/s | | Audio Formats | Supports up to 7.1 channel & Dolby TrueHD, DTS-HD master audio | | Audio Sampling Rate | 32 to 192 kHz | | HDMI Connector | HDMI Female plug | | | | Serial Control | RS-232 | | Data Rate | Up to 115.2K baud | | Connector | 3.5 mm jack | | | | Data Rate | 30-50 kHz | | In/Out Connections | 3.5 mm stereo | | | | Speed | 100 Mb/s | | LAN Connectors | RJ45 | | | | Cable Type | Cat5e/6 or higher, RJ45 | | Distance | Up to 328' / 100 m | | | | Data Rate | USB 2.0 | | Connector | USB Type-B | | Channel | 2 | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Humidity | 20 to 90% RH, non-condensing | | Power Consumption | 48 VDC @ 0.9 A (maximum) | | Dimensions | 4.2 x 4.6 x 1.1" / 11 x 12 x 2.8 cm |
