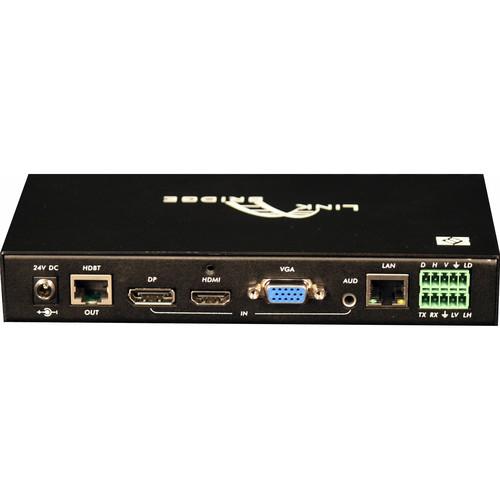

User Manual for Link Bridge HDBaseT HDMI DisplayPort VGA Transmitter Click to enlarge the picture
Contents of the user manual for the Link Bridge HDBaseT HDMI DisplayPort VGA
- Product category: Video Extenders & Repeaters Link Bridge
- Brand: Link Bridge
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Link Bridge Video Extenders & Repeaters
|
User manual for the Link Bridge HDBaseT HDMI DisplayPort VGA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Link Bridge product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Link Bridge user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Link Bridge product will considerably shorten its lifespan!
|
Product description The HDBaseT HDMI/DisplayPort/VGA Transmitter from Link Bridge switches/extends HDMI, DisplayPort, or VGA signals up to 230’ using a Cat5e/6 cable. It provides fully uncompressed video and embedded audio with zero loss of quality. The transmitter supports HDTV video resolutions up to 720p/1080i/1080p @ 60 Hz or 1920 x 1200 @ 60Hz, as well as Ultra HD (4K2K @ 30Hz). -
- Switches/extends HDMI, DisplayPort, or VGA signals up to 230’ over Cat5e/6
- Supports HDTV video resolutions up to 720p/1080i/1080p @ 60Hz or 1920 x 1200 @ 60Hz, as well as Ultra HD (4K2K @ 30Hz)
- Fully uncompressed video with embedded audio provides zero loss of quality
- Selectable manual or auto-switching between HDMI, DisplayPort, and VGA inputs
- Webserver for monitoring and configuration
- Manual switching through front-panel button, contact closure, RS-232 or webserver
- Video/Audio, Data, IR over 1 Cat5e/6 with true DDC/EDID/HDCP transmission
- Compatible with our LBH/LBC Series products
In the Box Link Bridge HDBaseT HDMI/DisplayPort/VGA Transmitter (230') Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Bridge HDBaseT HDMI DisplayPort VGA Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Bridge LBC-HDV-T Specs | | | Resolution | (HDMI) up to 4K2K @ 30 Hz
(DisplayPort) up to 4K2K @ 30 Hz
(VGA) up to 1920 x 1200 @ 60 Hz | | Connectors | HDMI, DisplayPort, and VGA Female plug | | Protocol | DDC/EDID/HDCP capable | | | | Channel | 1 x L/R analog | | Operating Mode | Unbalanced (stereo audio) | | Connector | 3.5 mm stereo jack | | | | Data Rate | 30 to 60 kHz | | In/Out Connections | 3.5 mm jack | | | | Channel | 1 | | Signal Format | RS-232 or Ethernet | | Data Rate | 19.2k baud (RS-232) | | Connector | Terminal Block (RS-232), RJ45 (Ethernet) | | | | Cable Type | Cat5e/6 or higher, RJ45 connector | | Distance | Up to 328' / 100 m | | | | Power | 24 VDC 2-Way
48 VDC Act as PD unit | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Humidity | 5 to 95% RH, non-condensing | | Power Consumption | 24 VDC @ 1 A (Maximum) | | Dimensions | 7.5 x 4.1 x 1.2" / 19 x 10 x 3.0 cm |
