Product description

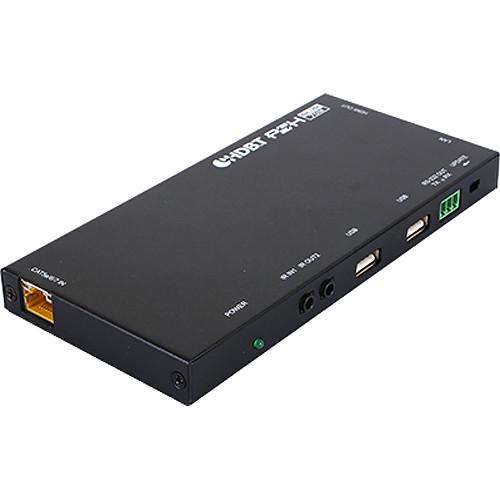

The HDBaseT HDMI Receiver from Link Bridge receives HDMI signals up to 328’ over a single Cat5e/6 cable. It supports full HDTV video resolutions up to 4K2K at 30 Hz, and provides fully uncompressed video and audio with zero loss of quality. It also supports true DDC/EDID/HDCP transmission and USB 2.0 keyboard and mouse.
    • Receives HDMI signals up to 328’ over single Cat5e/6 cable
    • Supports full HDTV video resolutions up to 4K2K at 30 Hz
    • Fully uncompressed video and audio provides zero loss of quality
    • Supports true DDC/EDID/HDCP transmission
    • Video/audio, IR, data, and Ethernet over single Cat5e/6 cable
    • 48V PoH with PSE/TX
    • HDMI 1.4 and HDCP 2.2 compliant
    • Supports both RS-232 and IR control data
    • Supports USB 2.0 keyboard and mouse
In the Box Link Bridge HDBaseT HDMI Receiver with USB Keyboard/Mouse Support (328')
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Link Bridge HDBaseT HDMI Receiver with USB Keyboard Mouse Support in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Link Bridge LBC-HDBT-R-48-KM Specs

    HDMI Out HDMI 1.4, with 3D and 4K x 2K support
    HDMI Connector Female plug
    Video Resolution Up to 4K2K @ 30 Hz
    Protocol DDC/EDID capable, HDCP 2:2
    Video Bandwidth 300 MHz / 10.2 Gb/s
    Audio Formats Supports up to 7.1 channel and Dolby TrueHD, DTS-HD master audio
    Audio Sampling Rate 32 to 192 kHz
    Serial Control RS-232
    Data Rate Up to 57.6 kBaud
    Connector Terminal block
    Data Rate 30 to 50 kHz
    In/Out Connections 3.5 mm stereo
    Speed 100 Mb/s
    LAN Connectors RJ45
    Cable Type Cat5e/6 or higher, RJ45
    Distance Up to 328' / 100 m
    Function Supports USB 2.0 keyboard and mouse (not included)
    Connector USB Type-A
    Channel 2
    Operating Temperature 32 to 104°F / 0 to 40°C
    Humidity 20 to 90% RH, non-condensing
    Power Consumption 48 VDC @ 0.9 A (maximum)
    Dimensions 6.4 x 3.1 x 0.6" / 16 x 7.9 x 1.5 cm
