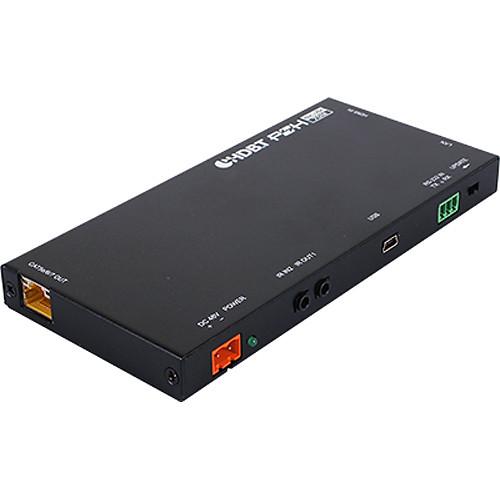

Product description The HDBaseT HDMI Transmitter from Link Bridge transmits HDMI signals up to 328’ over a single Cat5e/6 cable. It supports full HDTV video resolutions up to 4K2K at 30 Hz, and provides fully uncompressed video and audio with zero loss of quality. It also supports true DDC/EDID/HDCP transmission and USB 2.0 keyboard and mouse. -
- Transmits HDMI signals up to 328’ over single Cat5e/6 cable
- Supports full HDTV video resolutions up to 4K2K at 30 Hz
- Fully uncompressed video and audio provides zero loss of quality
- Supports true DDC/EDID/HDCP transmission
- Video/audio, IR, data, and Ethernet over single Cat5e/6 cable
- 48V PoH with PSE/TX
- HDMI 1.4 and HDCP 2.2 compliant
- Supports both RS-232 and IR control data
- Supports USB 2.0 keyboard and mouse
In the Box Link Bridge HDBaseT HDMI Transmitter with USB Keyboard/Mouse Support (328') Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Bridge HDBaseT HDMI Transmitter with USB Keyboard Mouse Support in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Bridge LBC-HDBT-T-48-KM Specs | | | HDMI In | HDMI 1.4, with 3D and 4K x 2K support | | HDMI Connector | Female plug | | Video Resolution | Up to 4K2K @ 30 Hz | | Protocol | DDC/EDID capable, HDCP 2:2 | | Video Bandwidth | 300 MHz / 10.2 Gb/s | | Audio Formats | Supports up to 7.1 channel and Dolby TrueHD, DTS-HD master audio | | Audio Sampling Rate | 32 to 192 kHz | | | | Serial Control | RS-232 | | Data Rate | Up to 57.6 kBaud | | Connector | Terminal block | | | | Data Rate | 30 to 50 kHz | | In/Out Connections | 3.5 mm stereo | | | | Speed | 100 Mb/s | | LAN Connectors | RJ45 | | | | Cable Type | Cat5e/6 or higher, RJ45 | | Distance | Up to 328' / 100 m | | | | Function | Supports USB 2.0 keyboard and mouse (not included) | | Connector | USB Type-A | | Channel | 1 | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Humidity | 20 to 90% RH, non-condensing | | Power Consumption | 48 VDC @ 0.9 A (maximum) | | Dimensions | 6.4 x 3.1 x 0.6" / 16 x 7.9 x 1.5 cm |
