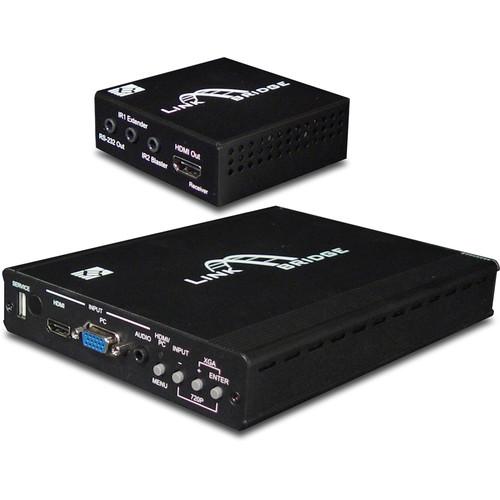

Product description This Link Bridge Kit includes a 5Play HDBaseT HDMI/VGA Scaling Transmitter and an HDMI Wall Plate Receiver. The transmitter features HDBaseT, HDMI and VGA with audio, IR, RS-232, Ethernet, and PoH (Power over HDBT). It can transmit signals up to a maximum distance of 328' over a single Cat5e/6 cable. The receiver provides HDBaseT, HDMI, and PoH options on transmitter or receiver units over one Cat5e/6 cable, at a maximum distance of 230'. - HDMI/VGA HDBaseT Transmitter and Scaler Link Bridge's HDMI/VGA HDBaseT Transmitter and Scaler can be easily integrated into an existing HDBaseT or HDMI setup. Inputs on this unit include HDMI and VGA video along with analog stereo audio. Bidirectional connections for LAN and RS232 machine/IR control are also offered. Incoming VGA signals can be scaled in order to fit the HD video stream using the OSD menu system. Since the signal is uncompressed, there is no quality difference from the input to the output. Other image controls offered include contrast, brightness, hue,saturation, sharpness, RGB level, and scan size. Resolutions up to 1920 x 1200 (WUXGA) are supported. This is a 5Play device, which means it can carry HDMI, LAN, IR, RS232, and up to 100W of power over 328' using a single HDBaseT twisted-pair interface.

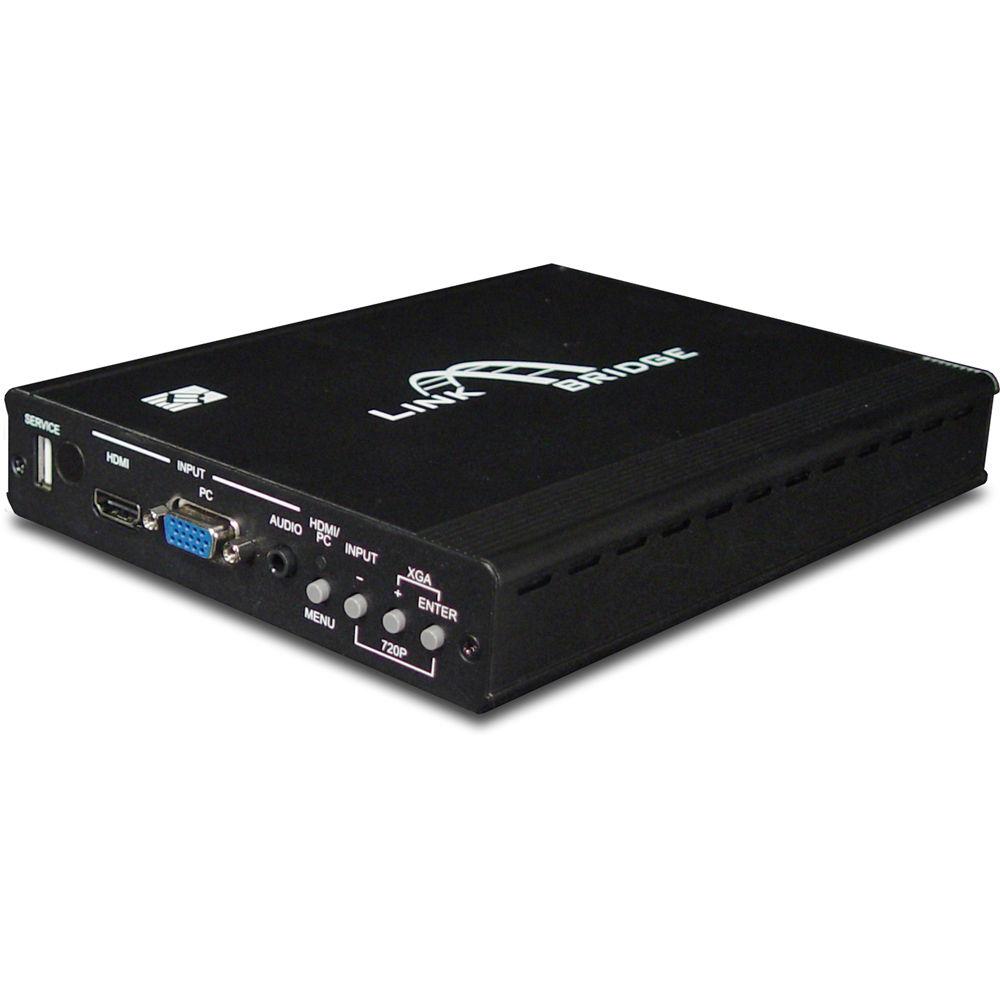

In the Box Bundle Items HDMI/VGA HDBaseT Transmitter and Scaler vzrbxtrvrs

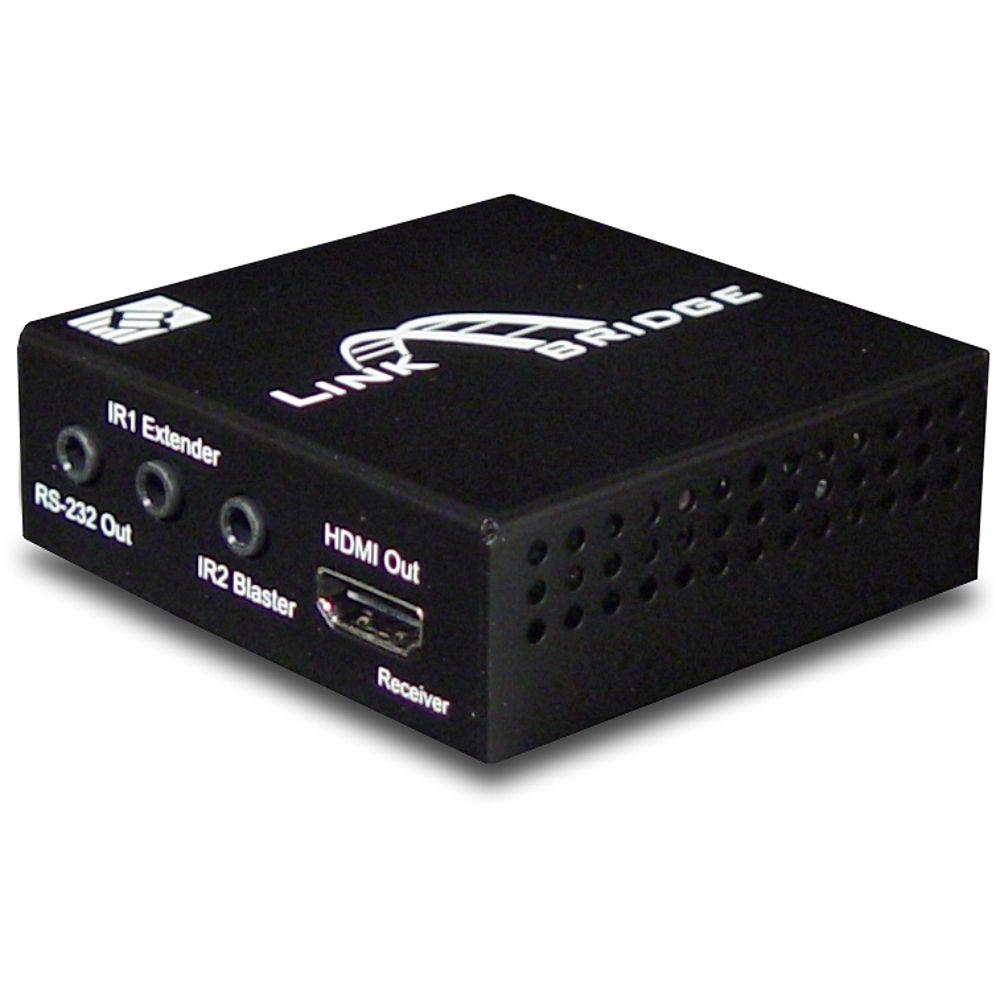

Also Includes - HDMI over HDBaseT Wall Plate Receiver
Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Bridge HDBaseT HDMI VGA Scaling Transmitter & HDMI Wall Plate Receiver Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - HDMI/VGA HDBaseT Transmitter and Scaler
| Video | Resolution: Up to 1080p60 or UXGA (1920 x 1200) 60 Hz
Connectors: VGA, HDMI
Protocol Support: DDC, EDID, HDCP | | Audio | Channels: 2
Operating Mode: Unbalanced stereo
Input Connector: 3.5 mm Mini stereo | | Control | Signal Format: RS-232
Data Rate: Up to 57.6 kBaud
Connector: DB9 | | Transmission | Type: HDBaseT
Cable Type: Cat5e/Cat6
Connector: RJ45 | | Power Consumption | 24 VDC, 2.7 A (max) | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions | 5.7 x 7.9 x 1.2" / 145 x 201 x 30 mm | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 13.6 x 10.5 x 4.2" |
