User Manual for Link Bridge HDBaseT HDMI VGA Wall Plate Transmitter & HDBaseT Lite Receiver Kit

• Product category: Video Extenders & Repeaters Link Bridge
• Brand: Link Bridge
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Link Bridge Video Extenders & Repeaters

Product description

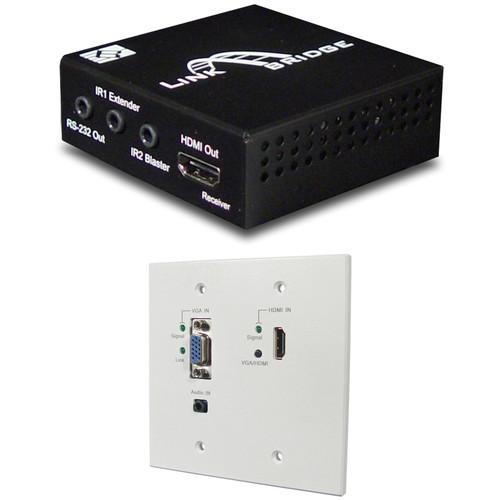

• HDMI/VGA HDBaseT Wall Plate Transmitter Transmit high-quality audio and video over 230' using a single cable with the Link Bridge HDMI/VGA HDBaseT Wall Plate Transmitter. All the electronics are mounted on the wall plate for clean installation in A/V closets or presentations rooms. The HDBaseT interface transmits audio, video, power, and control data over a single cable for a simple wiring solution without any quality loss.

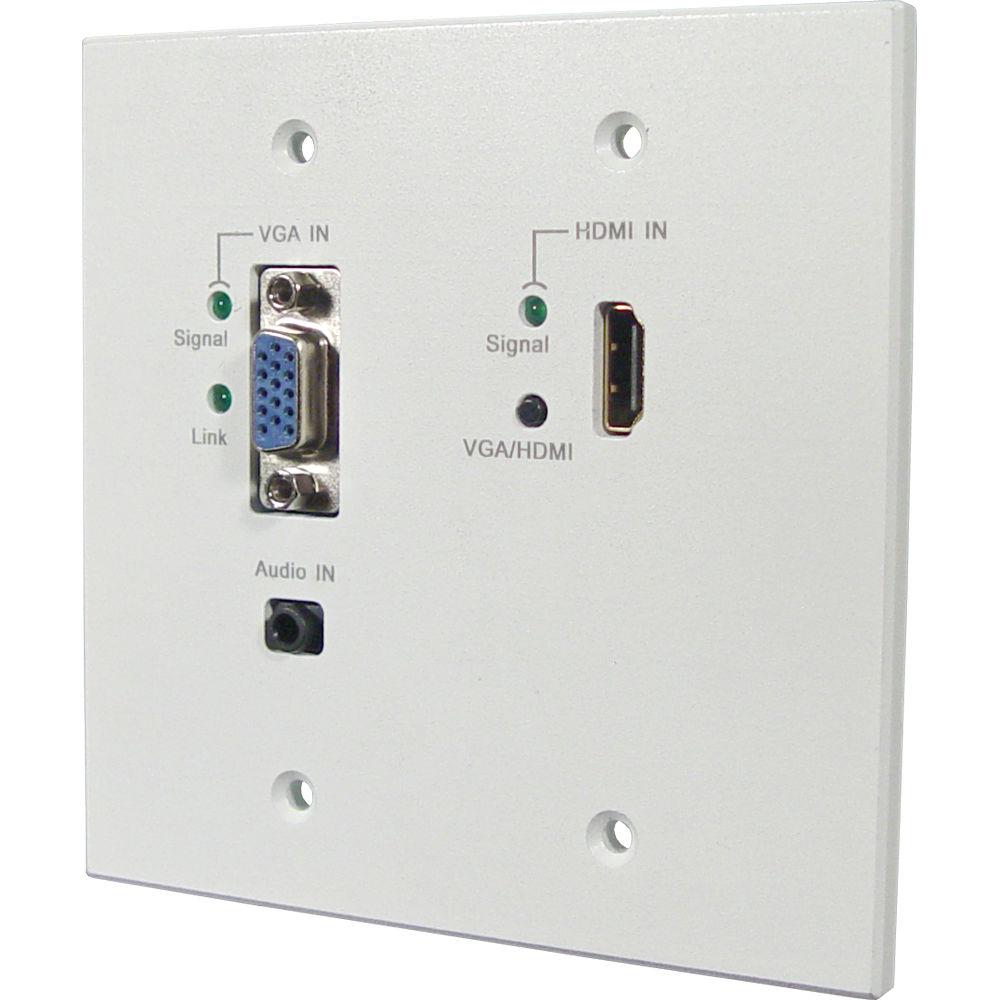

  The front panel of this device houses HDMI and VGA inputs. The unit can automatically switch to an active input, or the input can be manually selected using the front-panel switch or RS-232 control. The VGA input will be converted to an HDMI signal so it can be transmitted via HDBaseT. While using the VGA input, an analog 3.5mm stereo input is provided for embedding audio. The HDMI input supports Full HD as well as UHD and DCI 4K signals. HDCP, EDID, and other protocols are passed through the HDBaseT feed.

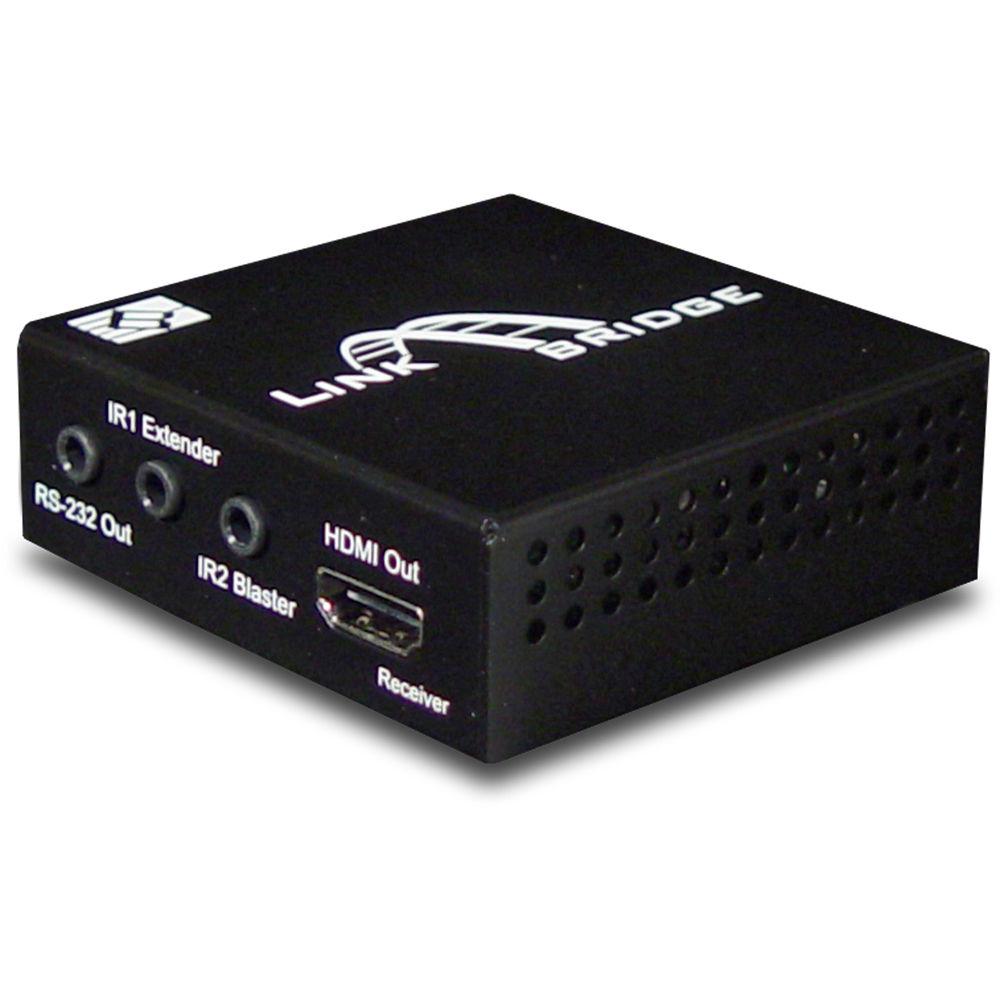

• 4Play HDBaseT Receiver with US Power Supply & IR Transmitter Cable Link Bridge's compact 4Play HDBaseT Receiver makes it simple to integrate unidirectional video with up to DCI 4K resolution (4096 x 2160) and audio, as well as bidirectional control and power over the same HDBaseT interface. Using this receiver with a compatible 4Play HDBaseT transmitter allows you to send all four aspects of the 4Play designation over 196' using a single twisted pair Cat5e/6 cable without any quality loss, as there is no conversion or processing of the signals. Since power is also transmitted, only the transmitter or the receiver needs to be connected to mains power; the other will be powered over the HDBaseT connection.

  A simple setup would involve sending an HDMI A/V signal from the transmitter near the A/V equipment to the connected receiver near a projector or monitor. Using the control connections and IR capabilities, control of the A/V equipment can still be maintained. The actual unit is compact and unobtrusive for use in A/V closets or presentation rooms.

• Power Supply

• Limited 1-Year Warranty

• US Power Supply

• IR Transmitter Cable

• Mounting Bracket

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• HDMI/VGA HDBaseT Wall Plate Transmitter

  Video	Resolution: 4096 x 2160 up to 60p, 1920 x 1080 up to 60p Connectors: HDMI, VGA Protocol Support: DDC/EDID/HDCP
  Audio	Channel Capacity: 1 x L/R analog Operating Mode: Unbalanced (stereo audio) Input Impedance: 10 kOhms Connectors: 3.5mm Stereo jack
  Control	Channel Capacity: 1 Signal Format: RS-232 Data Rate: Up to 57.6 kBbaud Connector: Terminal block
  Transmission	Cable Type: Cat5e/6 Number of Cables: 1 Connector: RJ-45 Max Distance: 229' / 70 m
  Operating Temperature	32 to 131°F / 0 to 55°C
  Humidity	5 to 95% RH, non-condensing
  Dimensions	4.6 x 1.6 x 4.5" / 116 x 39 x 114 mm
  Weight	Not specified by manufacturer

  Box Dimensions (LxWxH)	9.5 x 7.4 x 2.8"

• 4Play HDBaseT Receiver with US Power Supply & IR Transmitter Cable

  Video	Resolution: Up to 4096 x 2160p24, 3840 x 2160p30 Connectors: HDMI Protocol Support: DDC, EDID, HDCP
  Control	Signal Format: IR Data Rate: 30-50 kHz Connector: 3.5 mm Stereo I/O Signal Format: RS-232 Data Rate: Up to 57.6 kBaud Connector: DB9
  Transmission	Type: HDBaseT Cable Type: Cat5e/6 Connector: RJ45
  Power Consumption	24 VDC, 1.25 A (max)
  Operating Temperature	32 to 122°F (0 to 50°C)
  Humidity	0 to 95% RH, non-condensing
  Dimensions	2.8 x 2.8 x 1.0" (71 x 71 x 25 mm)
  Weight	Not specified by manufacturer
