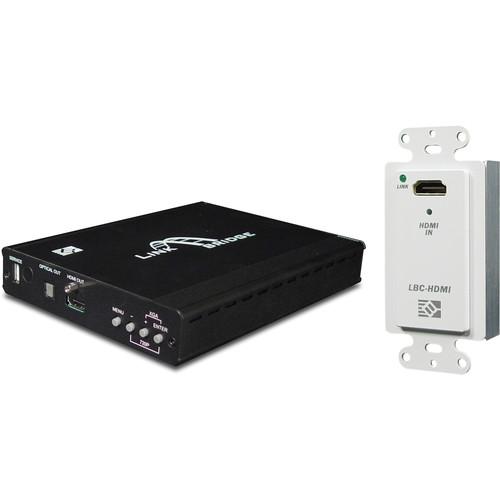

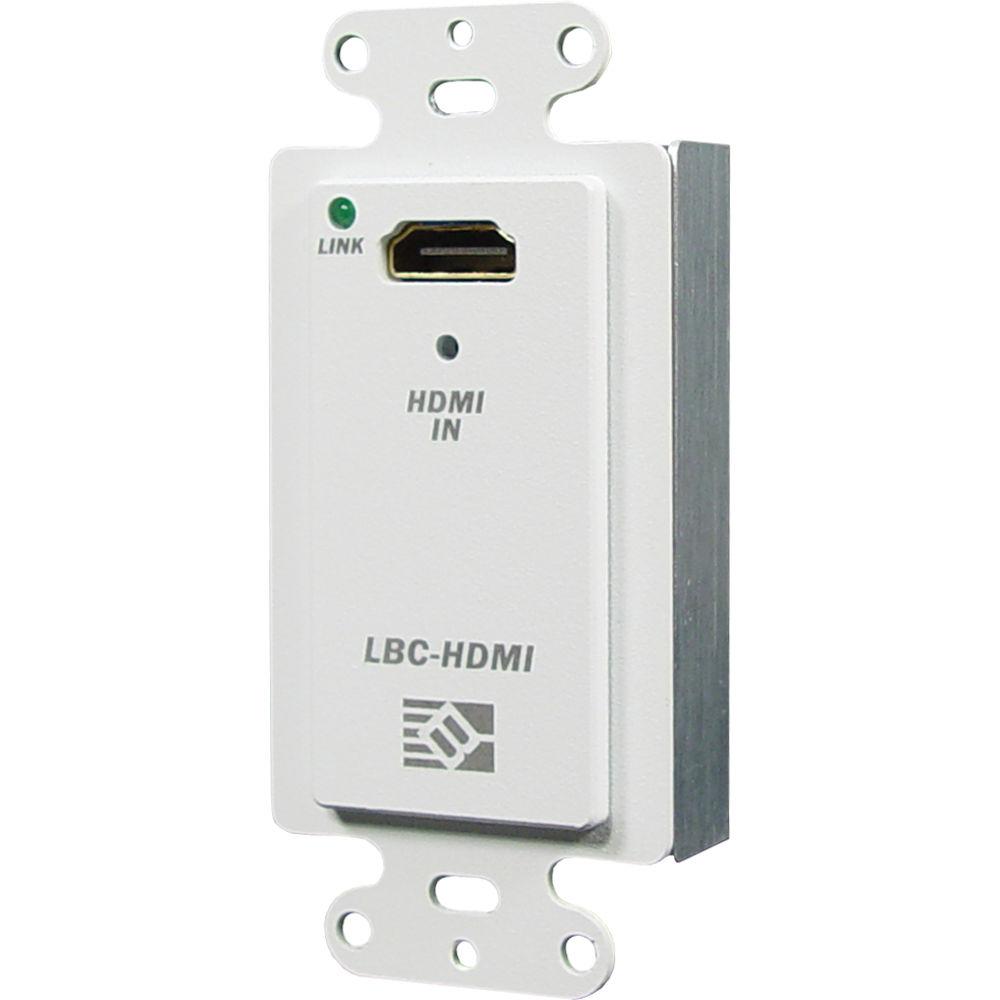

Product description This Link Bridge Kit includes an HDBaseT HDMI Wall Plate Transmitter and a 5Play Auto-Scaling Receiver. It carries HDMI and PoH (Power over HDBT) signals on either TX or RX units to a maximum distance of 230' over one Cat5e/6 cable. - HDMI over HDBaseT Wall Plate Transmitter Route HDMI signals to the other side of the room (up to 230') without any quality loss by installing this Link Bridge HDMI over HDBaseT Wall Plate Transmitter along with a receiver in your wall. Using balanced Cat5e or Cat6 cable, HDBaseT can carry HDMI signals over longer distances without dropouts when compared to standard unbalanced HDMI cables. Since this setup sits inside your walls, it keeps your presentation area clean from cables traveling across the room and up the walls. HDBaseT preserves all aspects of the HDMI signal including resolution, audio, as well as HDCP and EDID protocols. Power and link LEDs ensure that you know your signals get to where they need to be. This unit accepts Power over HDBaseT (PoH), so a power supply is only required at either the transmitter or receiver end.
Features - Extend HDMI signals up to 230' over a single Cat5e/6 cable
- Supports Cinema 4K and UHD resolutions in addition to 1080p and WUXGA
- No video compression for no quality loss in video or audio
- Supports DDC, EDID, and HDCP information transmission
- Supports PoH (Power over HDbaseT) to accept power from the receiver (Rx) unit

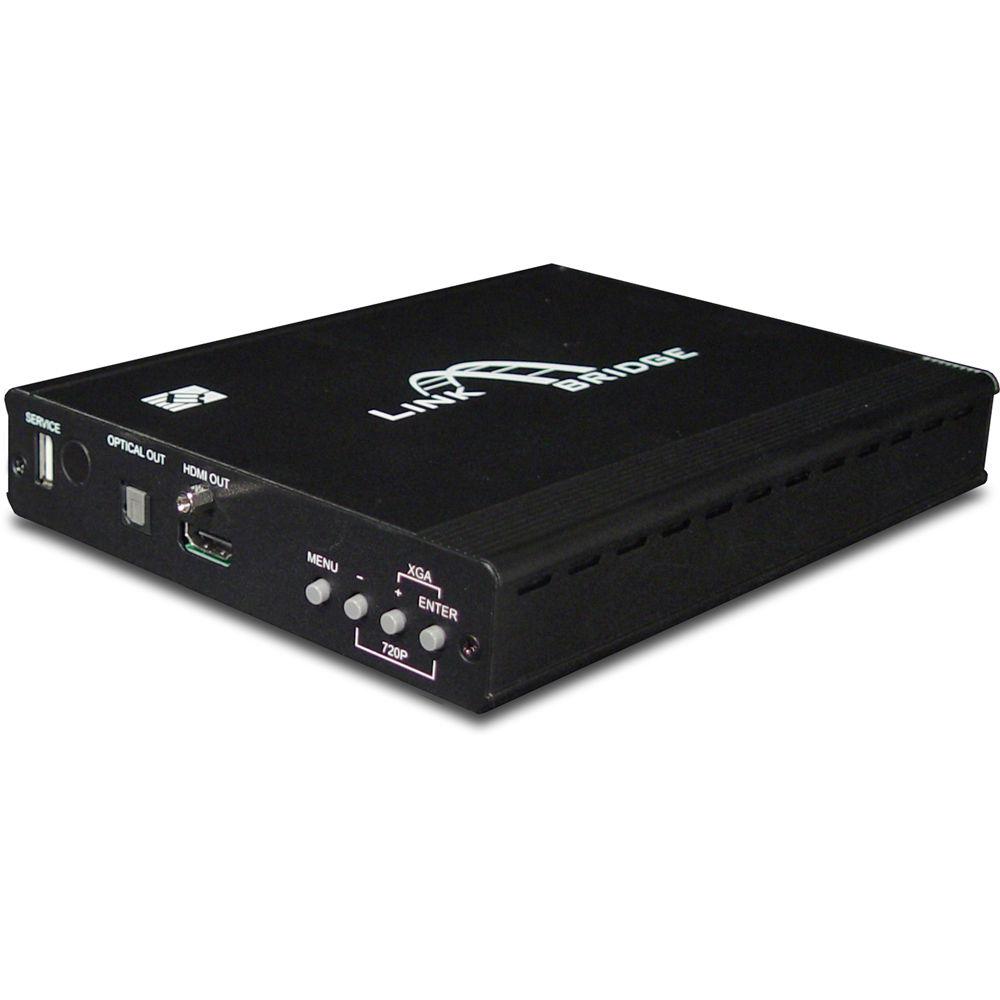

- LBC-H-R-SCL HDBaseT Receiver/Scaler (Full HD & WUXGA) Link Bridge's LBC-H-R-SCL HDBaseT Receiver/Scaler can be easily integrated into an existing HDBaseT setup. Its HDBaseT input breaks out into an HDMI output, a separate optical audio output, a bidirectional RJ-45 LAN interface, and a bidirectional RS-232 interface which also supports IR control.
Incoming video signals can be adjusted and scaled using the OSD menu system. Other image controls include contrast, brightness, hue, saturation, sharpness, RGB level, and scan size. Since the HDBaseT signal contains an uncompressed, unmodified HDMI signal, there is no difference in quality from the input to the output, and all data and protection protocols are maintained. Resolutions up to 1920 x 1200 (WUXGA) are supported. This is a 5Play device, which means it can carry HDMI, LAN, IR, RS232, and up to 100W of power over 328' using a single HDBaseT twisted-pair interface. In the Box Bundle Items HDMI over HDBaseT Wall Plate Transmitter sqzwteqqetdestxteatbscbzqutbwscdce LBC-H-R-SCL HDBaseT Receiver/Scaler (Full HD & WUXGA) Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Bridge HDBaseT HDMI Wall Plate Transmitter & 5Play Auto-Scaling Receiver Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - HDMI over HDBaseT Wall Plate Transmitter
| | | Resolution Support | 4K up to 4096 x 2160p24, 3840 x 2160p30
HD up to 1080p60, WUXGA (1920 x 1200) up to 60 Hz | | Input Connectors | 1 x HDMI, female | | Output Connectors | 1 x RJ45, female (requires Cat5e/6 cable) | | Color Depth | 48-bit | | Maximum Transmission Distance | 230' / 70 m | | Protocol Support | DDC, EDID, HDCP | | | | Power | PoH (Power over HDbaseT)
Consumption: 24 VDC, 0.5 A (max) | | Environmental | Operating Temperature: 32 to 131°F / 0 to 55°C
Humidity: 5 to 95% RH, non-condensing | | Dimensions | 1.8 x 4.1 x 0.8" / 46 x 104 x 21 mm | | Weight | 0.5 lb / 222 g | | | | Box Dimensions (LxWxH) | 10.2 x 5.7 x 3.7" | - LBC-H-R-SCL HDBaseT Receiver/Scaler (Full HD & WUXGA)
| Connectors | 1 x HDMI
1 x RJ45, 100 Mbps LAN Network
2 x 3.5 mm stereo plug, IR
1 x 9-pin Sub-D, RS-232 port | | Video Resolution Supported | Up to 1080p, or UXGA (1920 x 1200) | | IR | 30-50 kHz data rate | | RS232 | Up to 57.6 kBaud | | Transmission | Type: HDBaseT
Cable Type: Cat5e/6
Connector: RJ45 | | Power Consumption | 24 VDC, 2.7 A (max) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Dimensions | 5.7 x 7.9 x 1.2" (14.5 x 20.1 x 3.0 cm) | | Weight | Not specified by the manufacturer | | | | Box Dimensions (LxWxH) | 11.9 x 10.2 x 2.9" |
