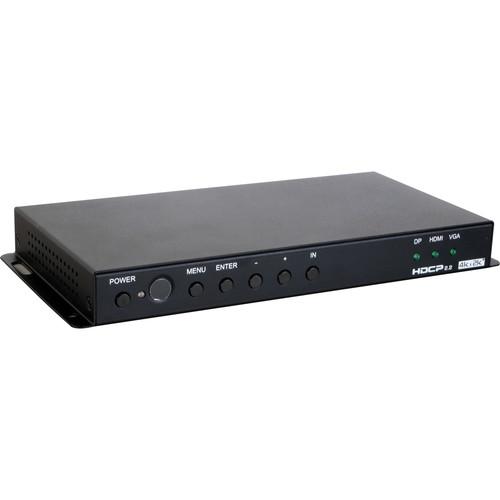

User Manual for Link Bridge HDMI 2.0 Scaler with HDMI DisplayPort VGA Input Click to enlarge the picture
Contents of the user manual for the Link Bridge HDMI 2.0 Scaler with
- Product category: Signal Converters Link Bridge
- Brand: Link Bridge
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Link Bridge Signal Converters
 |
User manual for the Link Bridge HDMI 2.0 Scaler with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Link Bridge product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Link Bridge user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Link Bridge product will considerably shorten its lifespan!
|
Product description The HDMI 2.0 Scaler with HDMI/DisplayPort/VGA Input from Link Bridge is a multi-format HDMI 2.0 scaler with HDCP 2.2 compliance. It supports HDMI and DisplayPort video resolutions up to 3840 x 2160 at 60 Hz and 4096 x 2160 at 60 Hz with 4:4:4 YUV. The scaler automatically selects and displays the most recently connected source. It allows you to adjust the video's contrast, brightness, hue, and saturation. - Analog audio output with volume control
- EDID management functionality
- Multiple user interfaces (Front panel, OSD, WebGUI, RS-232, Telnet, and IR remote)
In the Box Link Bridge HDMI 2.0 Scaler with HDMI/DisplayPort/VGA Input Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Bridge HDMI 2.0 Scaler with HDMI DisplayPort VGA Input in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

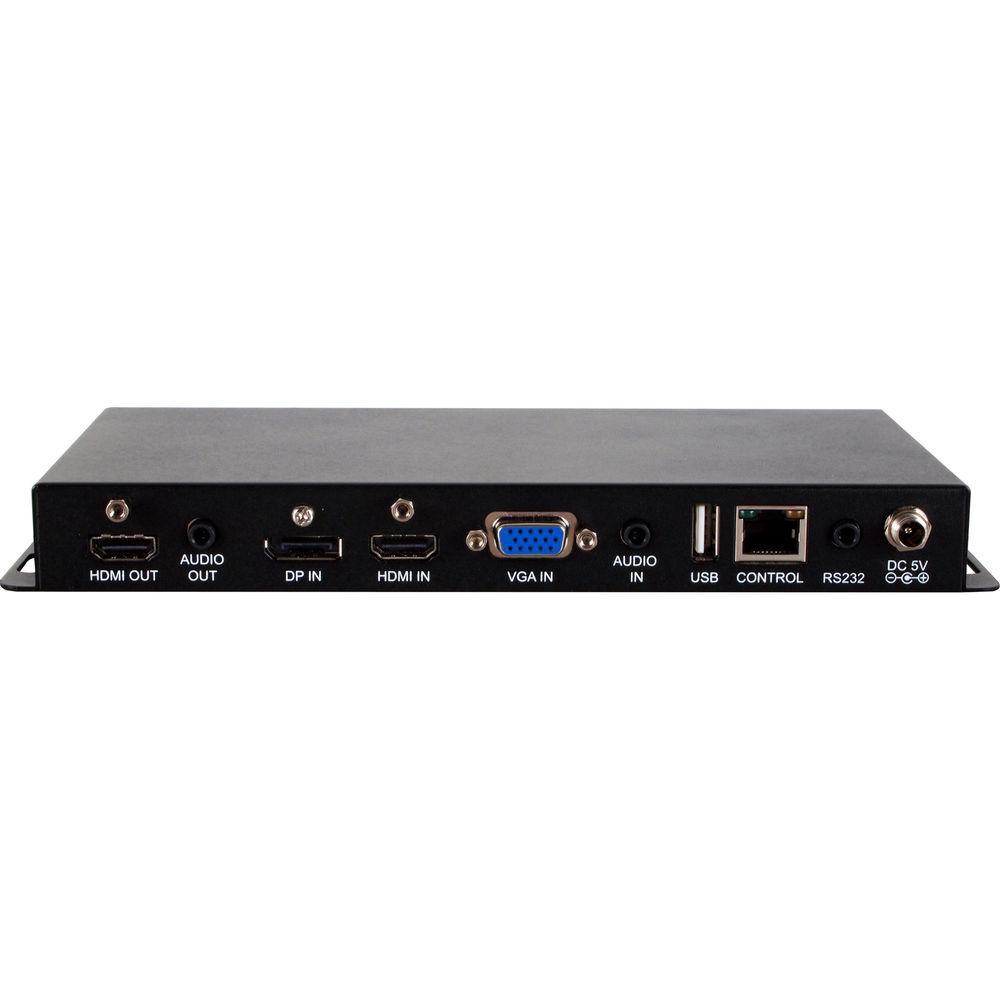

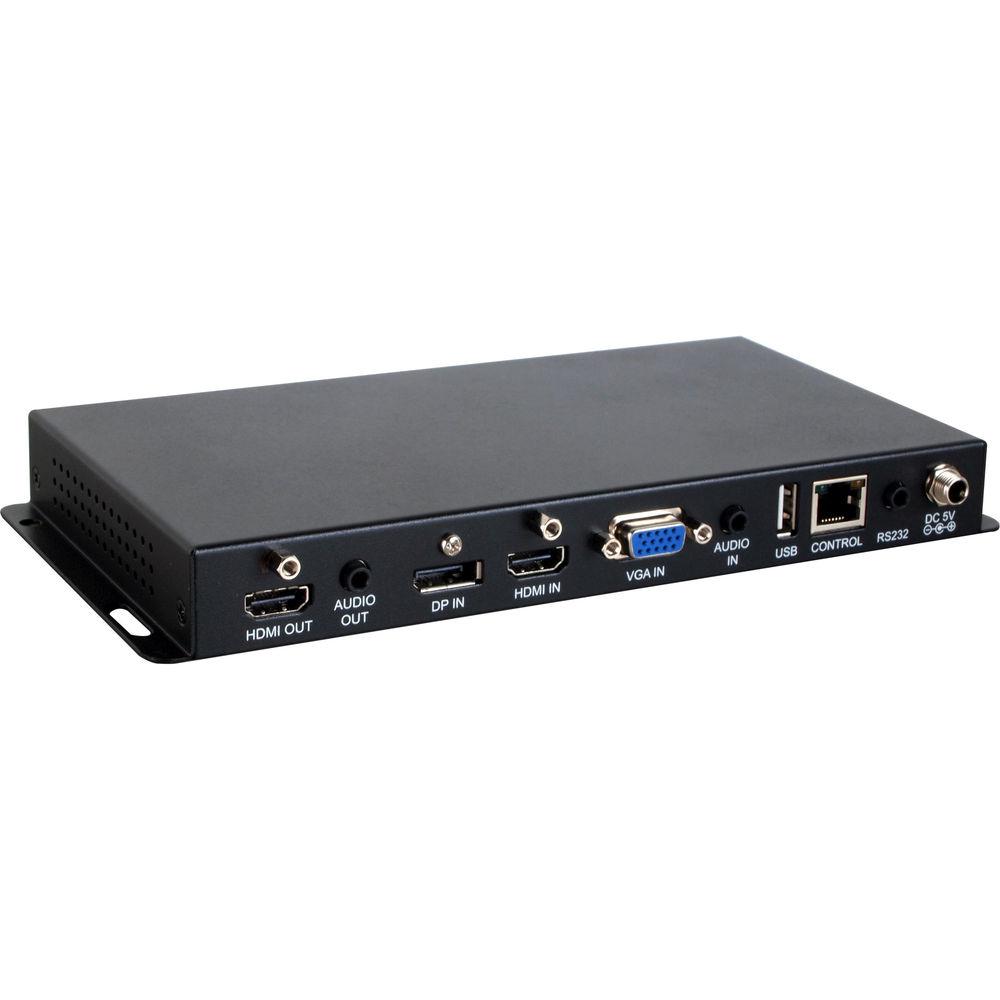

Technical parametersLink Bridge LB-H2-HDV/SCL Specs | Input | 1 x HDMI port
1 x DisplayPort
1 x VGA port (HD-15)
1 x Analog audio port (3.5 mm jack) | | Output | 1 x HDMI port
1 x Analog audio port (3.5 mm jack) | | Control | RS-232, 3.5 mm jack, LAN, RJ45 | | USB | For firmware upgrade | | Power Supply | 5 V at 3 A | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Dimensions | 9.1 x 4.3 x 1" (23.1 x 10.9 x 2.5 cm) | | Weight | Not specified by the maufacturer |
