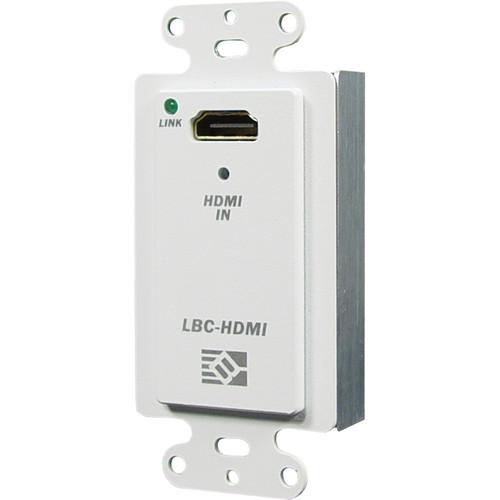

Product description Route HDMI signals to the other side of the room (up to 230') without any quality loss by installing this Link Bridge HDMI over HDBaseT Wall Plate Transmitter along with a receiver in your wall. Using balanced Cat5e or Cat6 cable, HDBaseT can carry HDMI signals over longer distances without dropouts when compared to standard unbalanced HDMI cables. Since this setup sits inside your walls, it keeps your presentation area clean from cables traveling across the room and up the walls. HDBaseT preserves all aspects of the HDMI signal including resolution, audio, as well as HDCP and EDID protocols. Power and link LEDs ensure that you know your signals get to where they need to be. This unit accepts Power over HDBaseT (PoH), so a power supply is only required at either the transmitter or receiver end. Features - Extend HDMI signals up to 230' over a single Cat5e/6 cable
- Supports Cinema 4K and UHD resolutions in addition to 1080p and WUXGA
- No video compression for no quality loss in video or audio
- Supports DDC, EDID, and HDCP information transmission
- Supports PoH (Power over HDbaseT) to accept power from the receiver (Rx) unit
In the Box Link Bridge HDMI over HDBaseT Wall Plate Transmitter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Bridge HDMI over HDBaseT Wall Plate Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Bridge LBC-H-T-WP Specs | | | Resolution Support | 4K up to 4096 x 2160p24, 3840 x 2160p30
HD up to 1080p60, WUXGA (1920 x 1200) up to 60 Hz | | Input Connectors | 1 x HDMI, female | | Output Connectors | 1 x RJ45, female (requires Cat5e/6 cable) | | Color Depth | 48-bit | | Maximum Transmission Distance | 230' / 70 m | | Protocol Support | DDC, EDID, HDCP | | | | Power | PoH (Power over HDbaseT)
Consumption: 24 VDC, 0.5 A (max) | | Environmental | Operating Temperature: 32 to 131°F / 0 to 55°C
Humidity: 5 to 95% RH, non-condensing | | Dimensions | 1.8 x 4.1 x 0.8" / 46 x 104 x 21 mm | | Weight | 0.5 lb / 222 g | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 10.2 x 5.7 x 3.7" |
