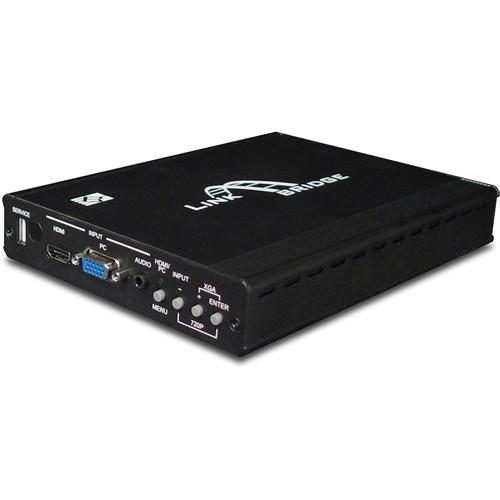

User Manual for Link Bridge HDMI VGA HDBaseT Transmitter and Scaler Click to enlarge the picture
Contents of the user manual for the Link Bridge HDMI VGA HDBaseT Transmitter
- Product category: Video Extenders & Repeaters Link Bridge
- Brand: Link Bridge
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Link Bridge Video Extenders & Repeaters
|
User manual for the Link Bridge HDMI VGA HDBaseT Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Link Bridge product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Link Bridge user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Link Bridge product will considerably shorten its lifespan!
|
Product description Link Bridge's HDMI/VGA HDBaseT Transmitter and Scaler can be easily integrated into an existing HDBaseT or HDMI setup. Inputs on this unit include HDMI and VGA video along with analog stereo audio. Bidirectional connections for LAN and RS232 machine/IR control are also offered. Incoming VGA signals can be scaled in order to fit the HD video stream using the OSD menu system. Since the signal is uncompressed, there is no quality difference from the input to the output. Other image controls offered include contrast, brightness, hue,saturation, sharpness, RGB level, and scan size. Resolutions up to 1920 x 1200 (WUXGA) are supported. This is a 5Play device, which means it can carry HDMI, LAN, IR, RS232, and up to 100W of power over 328' using a single HDBaseT twisted-pair interface. In the Box Link Bridge HDMI/VGA HDBaseT Transmitter and Scaler Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Bridge HDMI VGA HDBaseT Transmitter and Scaler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Bridge LBC-H/V-T-SCL Specs | Video | Resolution: Up to 1080p60 or UXGA (1920 x 1200) 60 Hz
Connectors: VGA, HDMI
Protocol Support: DDC, EDID, HDCP | | Audio | Channels: 2
Operating Mode: Unbalanced stereo
Input Connector: 3.5 mm Mini stereo | | Control | Signal Format: RS-232
Data Rate: Up to 57.6 kBaud
Connector: DB9 | | Transmission | Type: HDBaseT
Cable Type: Cat5e/Cat6
Connector: RJ45 | | Power Consumption | 24 VDC, 2.7 A (max) | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions | 5.7 x 7.9 x 1.2" / 145 x 201 x 30 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 3.45 lb | | Box Dimensions (LxWxH) | 13.6 x 10.5 x 4.2" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 15 owners. Add your rating and experience with the product.
