Product description Transmit high-quality audio and video over 230' using a single cable with the Link Bridge HDMI/VGA HDBaseT Wall Plate Transmitter. All the electronics are mounted on the wall plate for clean installation in A/V closets or presentations rooms. The HDBaseT interface transmits audio, video, power, and control data over a single cable for a simple wiring solution without any quality loss.

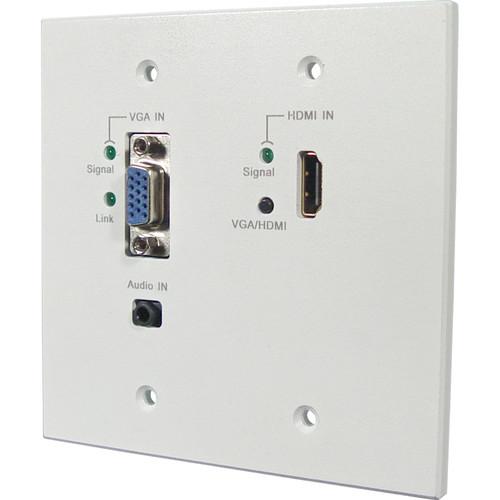

The front panel of this device houses HDMI and VGA inputs. The unit can automatically switch to an active input, or the input can be manually selected using the front-panel switch or RS-232 control. The VGA input will be converted to an HDMI signal so it can be transmitted via HDBaseT. While using the VGA input, an analog 3.5mm stereo input is provided for embedding audio. The HDMI input supports Full HD as well as UHD and DCI 4K signals. HDCP, EDID, and other protocols are passed through the HDBaseT feed. In the Box Link Bridge HDMI/VGA HDBaseT Wall Plate Transmitter Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Bridge HDMI VGA HDBaseT Wall Plate Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Bridge LBC-H/V-T-WP Specs | Video | Resolution: 4096 x 2160 up to 60p, 1920 x 1080 up to 60p
Connectors: HDMI, VGA
Protocol Support: DDC/EDID/HDCP | | Audio | Channel Capacity: 1 x L/R analog
Operating Mode: Unbalanced (stereo audio)
Input Impedance: 10 kOhms
Connectors: 3.5mm Stereo jack | | Control | Channel Capacity: 1
Signal Format: RS-232
Data Rate: Up to 57.6 kBbaud
Connector: Terminal block | | Transmission | Cable Type: Cat5e/6
Number of Cables: 1
Connector: RJ-45
Max Distance: 229' / 70 m | | Operating Temperature | 32 to 131°F / 0 to 55°C | | Humidity | 5 to 95% RH, non-condensing | | Dimensions | 4.6 x 1.6 x 4.5" / 116 x 39 x 114 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 9.5 x 7.4 x 2.8" |
