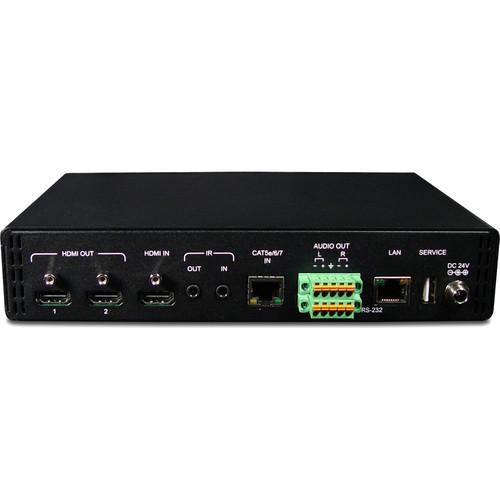

Product description Link Bridge's LBC-H-R-SCL-4K3 HDBaseT Receiver/Scaler can be easily integrated into an existing HDBaseT setup. Its HDBaseT input breaks out into an HDMI output, a bidirectional RJ-45 LAN interface, and a bidirectional RS-232 interface which also supports IR control.
Incoming video signals can be adjusted and scaled using the OSD menu system. Other image controls include contrast, brightness, hue, saturation, sharpness, RGB level, and scan size. Since the HDBaseT signal contains an uncompressed, unmodified HDMI signal, there is no difference in quality from the input to the output, and all data and protection protocols are maintained. Bidirectional PoH and resolutions up to 4K2K are supported. In the Box Link Bridge LBC-H-R-SCL-4K3 HDBaseT Receiver/Scaler (4K2K) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Bridge LBC-H-R-SCL-4K3 HDBaseT Receiver Scaler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Bridge LBC-H-R-SCL-4K3 Specs | Connectors | 1 x HDMI
1 x RJ45, 100 Mbps LAN Network
1 x 3.5 mm stereo plug, IR
1 x 9-pin Sub-D, RS-232 port | | Video Resolution Supported | Up to 4Kx2K
4096 x 2160 @ 24/25/30
3840 x 2160 @ 24/25/30
3840 x 2160 @ 50/60 YUV420 | | IR | 30-50 kHz data rate | | RS232 | Up to 57.6 kBaud | | Transmission | Type: HDBaseT
Cable Type: Cat5e/6
Connector: RJ45 | | Power Consumption | 24 VDC, 1.25 A (max) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Dimensions | 8.6 x 6.1 x 1.7" (21.9 x 15.6 x 4.3 cm) | | Weight | Not specified by the manufacturer |
