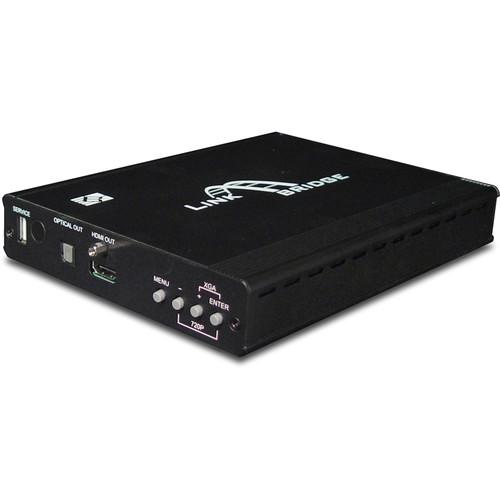

User Manual for Link Bridge LBC-H-R-SCL HDBaseT Receiver Scaler Click to enlarge the picture
Contents of the user manual for the Link Bridge LBC-H-R-SCL HDBaseT Receiver Scaler
- Product category: Video Extenders & Repeaters Link Bridge
- Brand: Link Bridge
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Link Bridge Video Extenders & Repeaters
|
User manual for the Link Bridge LBC-H-R-SCL HDBaseT Receiver Scaler contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Link Bridge product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Link Bridge user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Link Bridge product will considerably shorten its lifespan!
|
Product description Link Bridge's LBC-H-R-SCL HDBaseT Receiver/Scaler can be easily integrated into an existing HDBaseT setup. Its HDBaseT input breaks out into an HDMI output, a separate optical audio output, a bidirectional RJ-45 LAN interface, and a bidirectional RS-232 interface which also supports IR control.
Incoming video signals can be adjusted and scaled using the OSD menu system. Other image controls include contrast, brightness, hue, saturation, sharpness, RGB level, and scan size. Since the HDBaseT signal contains an uncompressed, unmodified HDMI signal, there is no difference in quality from the input to the output, and all data and protection protocols are maintained. Resolutions up to 1920 x 1200 (WUXGA) are supported. This is a 5Play device, which means it can carry HDMI, LAN, IR, RS232, and up to 100W of power over 328' using a single HDBaseT twisted-pair interface. In the Box Link Bridge LBC-H-R-SCL HDBaseT Receiver/Scaler (Full HD & WUXGA) Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Bridge LBC-H-R-SCL HDBaseT Receiver Scaler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Bridge LBC-H-R-SCL Specs | Connectors | 1 x HDMI
1 x RJ45, 100 Mbps LAN Network
2 x 3.5 mm stereo plug, IR
1 x 9-pin Sub-D, RS-232 port | | Video Resolution Supported | Up to 1080p, or UXGA (1920 x 1200) | | IR | 30-50 kHz data rate | | RS232 | Up to 57.6 kBaud | | Transmission | Type: HDBaseT
Cable Type: Cat5e/6
Connector: RJ45 | | Power Consumption | 24 VDC, 2.7 A (max) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Dimensions | 5.7 x 7.9 x 1.2" (14.5 x 20.1 x 3.0 cm) | | Weight | Not specified by the manufacturer | | | | Package Weight | 3.45 lb | | Box Dimensions (LxWxH) | 11.9 x 10.2 x 2.9" |
