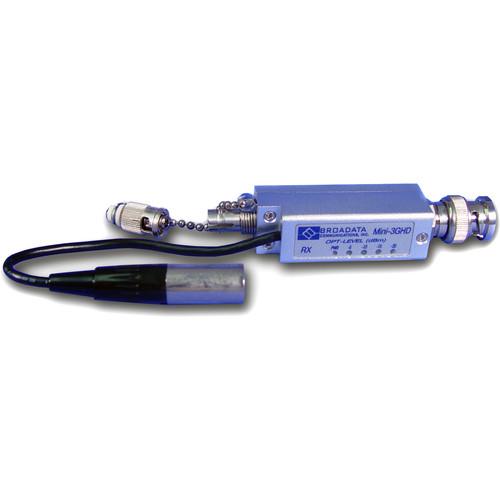

Product description Extend your SDI signals over single-mode or multi-mode fiber optics with this Link Bridge Mini-3GHD-TR Fiber Optic 3G-SDI Receiver. When combined with a 3G-SDI fiber transmitter, SDI signals can be extended for miles (using single-mode cables) without any information degradation. The casing of the unit has a low profile to fit in tight equipment setups. Using a separate rackmount chassis, up to 12 receivers can be organized in a patch bay. The panel connectors on the receiver are a BNC SDI output, an ST-type fiber input for video I/O, and an integrated 5-pin XLR dongle for connecting to the included power supply. Like the BNC connector, the ST fiber connector offers a locking solution that will not come undone from cable strain. When not in use, the integrated metal cap covers the sensitive optical connection. In the Box Link Bridge Mini-3GHD-TR Fiber Optic 3G-SDI Receiver Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Bridge Mini-3GHD-TR Fiber Optic 3G-SDI Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Bridge MINI-3GHD-R-S-ST Specs | Supported Formats | SMPTE-424M 3G-SDI
SMPTE-292M HD-SDI
SMPTE-259M SD-SDI | | Data Rate | 3 Gbps | | Connectors | 1 x BNC SDI output
1 x ST-type fiber optic input (multi-mode and single-mode)
1 x 5-pin XLR dongle | | Transmission Distance | Multi-Mode: 0.2 mi (0.3 km)
Single-Mode: 22 mi (30 km) | | Power Consumption | 5 VDC, 0.5 A | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Humidity | 0 to 95% RH, non-condensing | | Dimensions | 0.8 x 0.7 x 2.0" (19 x 17 x 51 mm) | | Weight | Not specified by manufacturer | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 10.1 x 7.7 x 2.6" |
