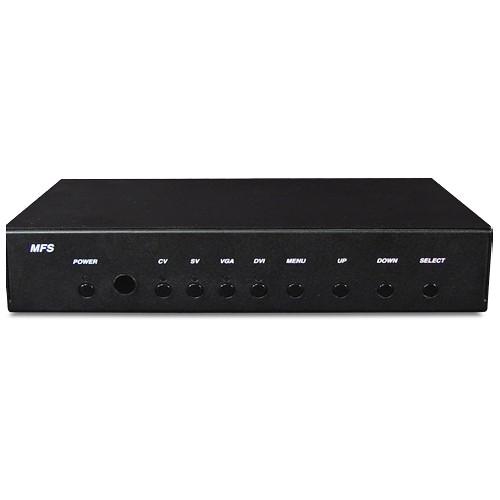

Product description The Link Bridge Multi-Format Video Scaler, Multimode Single Fiber supports input VGA/DVI resolutions up to 1920 x 1200 @ 60 Hz. It consolidates different video formats into one unified DVI format and comes with an OSD Menu Control. - Multi-format video scaler with OSD Menu Control
- RS-232 Control/ USB port for firmware upgrade
- Auto-sensing NTSC/PAL, S-Video, VGA, or DVI video inputs
In the Box Link Bridge Multi-Format Video Scaler, Multimode Single Fiber Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Bridge Multi-Format Video Scaler, Multimode Single Fiber in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Bridge MFS-DVI-T-M-SC Specs | | | Signal Format | DVI | | Fiber | SC (single fiber) | | Graphic Resolution | Up to 1920 x 1200, 60 Hz | | Supported Resolutions | Resolution, Type, Vertical Refresh Rate (Hz)
720 x 480, NTSC, 59.9 Hz
640 x 480, 480p, 59.94 Hz
720 x 480, 480p, 59.94 Hz
720 x 480, 480p, 60 Hz
720 x 576, PAL I, 50 Hz
1280 x 720, 720p, 50 Hz
1280 x 720, 720p, 59.94 Hz
1280 x 720, 720p, 60 Hz
1920 x 1080, 1080i, 50 Hz
1920 x 1080, 1080i, 59.94 Hz
1920 x 1080, 1080i, 60 Hz
1920 x 1080, 1080p, 25 Hz
1920 x 1080, 1080p, 29.97 Hz
1920 x 1080, 1080p, 30 Hz
1920 x 1080, 1080p, 50 Hz
1920 x 1080, 1080p, 59.94 Hz
1920 x 1080, 1080p, 60 Hz
640 x 480, VGA, 60 Hz
640 x 480, VGA, 72.809 Hz
640 x 480, VGA, 75 Hz
800 x 600, SVGA, 56.25 Hz
800 x 600, SVGA, 60.317 Hz
800 x 600, SVGA, 72.188 Hz
800 x 600, SVGA, 75 Hz
1024 x 768, XGA, 60.004 Hz
1024 x 768, XGA, 70.069 Hz
1024 x 768, XGA, 75.029 Hz
1152 x 864, XGA+, 75 Hz
1280 x 1024, SXGA, 60.02 Hz
1280 x 1024, SXGA, 75.025 Hz
1600 x 1200, UXGA, 60 Hz
1400 x 1050, SXGA+, 59.948 Hz
1400 x 1050, SXGA+, 59.978 Hz
1440 x 900, WXGA+, 59.902 Hz
1440 x 900, WXGA+, 59.888 Hz
1680 x 1050, WSXGA+1, 59.883 Hz
1680 x 1050, WSXGA+2, 59.954 Hz
1920 x 1200, WUXGA1, 59.61 Hz | | | | Video Formats | VGA, DVI, NTSC/PAL, S-Video | | Connectors | 1 x VGA via HD-15
1 x DVI via DVI female plug
1 x NTSC/PAL via BNC
1 x S-Video via 6-pin DIN | | Resolution | Up to 1920 x 1200 @ 60 Hz (VGA, DVI) | | LED Indicator | Power, Channel Selection | | | | Input Connector | 3.5 mm stereo, or female stereo RCA | | Output Connector | 3.5 mm stereo | | RS232 Connector | DB9 | | | | Supply Voltage | +12 VDC @ 2 A maximum | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Humidity | 0 to 95% RH, non-condensing | | Dimensions | 1.67 x 8.46 x 5.7" (42.4 x 214.8 x 144.7 mm) | | Weight | Not specified by the manufacturer |
