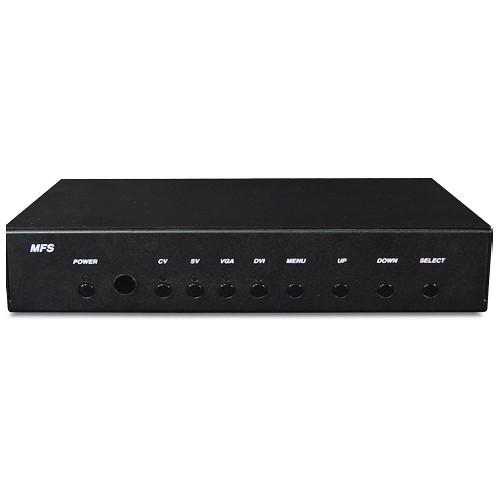

User Manual for Link Bridge Video-Only Multi-Format Multimode Fiber Scaler Click to enlarge the picture
Contents of the user manual for the Link Bridge Video-Only Multi-Format Multimode Fiber
- Product category: Signal Converters Link Bridge
- Brand: Link Bridge
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Link Bridge Signal Converters
|
User manual for the Link Bridge Video-Only Multi-Format Multimode Fiber contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Link Bridge product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Link Bridge user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Link Bridge product will considerably shorten its lifespan!
|
Product description The Link Bridge Video-Only Multi-Format Multimode Fiber Scaler supports VGA/DVI input resolutions up to 1920 x 1200 @ 60 Hz. It consolidates different video formats into one unified DVI format and comes with an OSD Menu Control. In addition, the scaler is compatible with LB-CH chassis rackmount system and comes with a single fiber connector. - Multi-format video-only scaler with OSD Menu Control
- USB port for firmware upgrade
- Compatible with LB-CH chassis rackmount system
- Scaled DVI output to DVI display panel
- Auto-sensing NTSC/PAL, S-Video, VGA, or DVI video inputs
In the Box Link Bridge Video-Only Multi-Format Multimode Fiber Scaler (No Audio) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Bridge Video-Only Multi-Format Multimode Fiber Scaler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Bridge MFS-DVI-T-M-SC-VO Specs | | | Signal Format | DVI | | Fiber Connector | SC (single) | | Graphic Resolution | Up to 1920 x 1200, 60 Hz | | Supported Resolutions | Resolution, Type, Vertical Refresh Rate (Hz)
720 x 480, NTSC, 59.94 Hz
640 x 480, 480p, 59.94 Hz
720 x 480, 480p, 59.94 Hz
720 x 480, 480p, 60 Hz
720 x 576, PAL I, 50 Hz
1280 x 720, 720p, 50 Hz
1280 x 720, 720p, 59.94 Hz
1280 x 720, 720p, 60 Hz
1920 x 1080, 1080i, 50 Hz
1920 x 1080, 1080i, 59.94 Hz
1920 x 1080, 1080i, 60 Hz
1920 x 1080, 1080p, 25 Hz
1920 x 1080, 1080p, 29.97 Hz
1920 x 1080, 1080p, 30 Hz
1920 x 1080, 1080p, 50 Hz
1920 x 1080, 1080p, 59.94 Hz
1920 x 1080, 1080p, 60 Hz
640 x 480, VGA, 60 Hz
640 x 480, VGA, 72.809 Hz
640 x 480, VGA, 75 Hz
800 x 600, SVGA, 56.25 Hz
800 x 600, SVGA, 60.317 Hz
800 x 600, SVGA, 72.188 Hz
800 x 600, SVGA, 75 Hz
1024 x 768, XGA, 60.004 Hz
1024 x 768, XGA, 70.069 Hz
1024 x 768, XGA, 75.029 Hz
1152 x 864, XGA+, 75 Hz
1280 x 1024, SXGA, 60.02 Hz
1280 x 1024, SXGA, 75.025 Hz
1600 x 1200, UXGA, 60 Hz
1400 x 1050, SXGA+, 59.948 Hz
1400 x 1050, SXGA+, 59.978 Hz
1440 x 900, WXGA+, 59.902 Hz
1440 x 900, WXGA+, 59.888 Hz
1680 x 1050, WSXGA+1, 59.883 Hz
1680 x 1050, WSXGA+2, 59.954 Hz
1920 x 1200, WUXGA1, 59.61 Hz | | | | Video Formats | VGA, DVI, NTSC/PAL, S-Video | | Connectors | 1 x VGA via HD-15
1 x DVI via DVI female plug
1 x NTSC/PAL via BNC
1 x S-Video via 6-pin DIN | | Resolution | Up to 1920 x 1200 @ 60 Hz (VGA, DVI) | | LED Indicator | Power, Channel Selection | | | | Supply Voltage | +12 VDC @ 1.25 A maximum | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Humidity | 0 to 95% RH, non-condensing | | Dimensions | 1.12 x 8.46 x 5.7" (28.4 x 214.8 x 144.7 mm) | | Weight | Not specified by the manufacturer |
