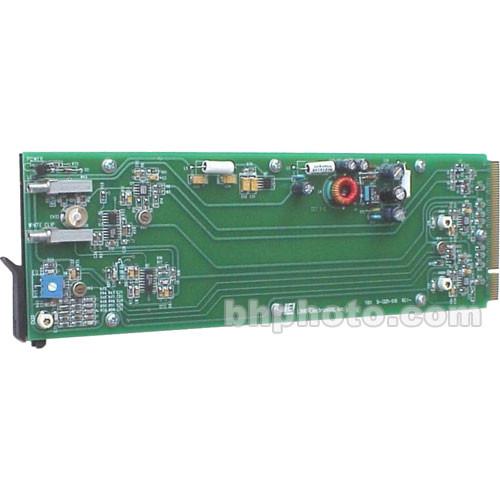

Product description The Link Electronics 115110011 is a 1x8, composite video distribution amplifier; it fits into a rack frame for space saving convenience and features Op Amp technology allowing for a very clean signal path. - Rack Frame Card
- This DA operates in a rack frame able to accept 9 or 10 more modules of analog or digital capabilities. This allows the user multiple capabilities in a small studio rack space.
- Gain Control
- A front edge gain control can be utilized to adjust outputs to the proper parameters.
- White Clip
- White clip can be adjusted with a range of 100 IRE units +/- 30 IRE units.
- CMF Op Amp Technology
- This technology allows the combination of wide bandwidth, low noise and low power consumption.
In the Box Link Electronics 11511011 1x8 Video Distribution Amplifier - Composite, Rack Frame Configuration, Level Control, DC Coupling, White Clip Rack Card Rear Cell 10 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics 11511011 1x8 Video Distribution Amplifier - Composite, Rack Frame Configuration, Level Control, DC Coupling, White Clip in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics 1151/1011 Specs | Input | Composite Video, 1 Vpp @ 75 ohms
On one BNC connector | | Output | Composite Video x8, 1 Vpp @ 75 ohms
On eight BNC connectors | | Video Bandwidth | 100 MHz | | Video Signal-to-Noise Ratio | 65 dB | | Differential Phase | 0.1° | | Differential Gain | 0.1% | | Video Control | Front Edge
Gain Control
EQ Control
White Clip | | Coupling | DC | | Dimensions (WxDxH) | 1 x 10 x 3.2"
2.5 x 25.4 x 8.13cm | | Weight | 7.1 Ounces
201 grams | | Power Source | 500 mW Derived from Mounting frame power supply | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 14.0 x 11.0 x 6.0" |
