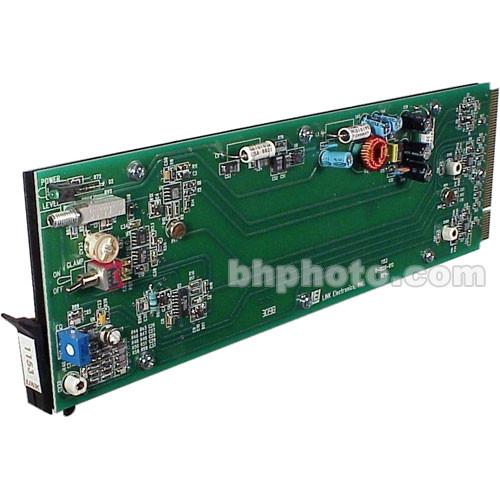

Product description The Link Electronics 115310011 is a 1x8, composite video distribution amplifier; this model offers Cable Equalization and Clamping, it fits into a rack frame for space saving convenience and features Op Amp technology allowing for a very clean signal path. - Rack Frame Card
- This DA operates in a rack frame able to accept 9 or 10 more modules of analog or digital capabilities. This allows the user multiple capabilities in a small studio rack space.
- Gain Control
- A front edge gain control can be utilized to adjust outputs to the proper parameters.
- Differential Input
- A standard feature providing high common mode rejection.
- CMF Op Amp Technology
- This technology allows the combination of wide bandwidth, low noise and low power consumption.
- Clamp and EQ Control
- The feedback clamp is referenced to the back porch and the EQ control adjusts for cable lengths up to 1000 feet of Belden 8281 cable.
UPC: 705641990634 In the Box Link Electronics 11531011 1x8 Video Distribution Amplifier EQ/Clamp - Composite, Rack Frame Configuration, Level Control, Selectable Coupling Rack Card Rear Cell 10 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics 11531011 1x8 Video Distribution Amplifier EQ Clamp - Composite, Rack Frame Configuration, Level Control, Selectable Coupling in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics 1153/1011 Specs | Input | Composite Video, 1 Vpp @ 75 ohms
On one BNC connector | | Output | Composite Video x8, 1 Vpp @ 75 ohms
On eight BNC connectors | | Video Bandwidth | 100 MHz | | Video Signal-to-Noise Ratio | 65 dB | | Differential Phase | 0.1° | | Differential Gain | 0.1% | | Video Control | Front Edge Level Control
Clamp On and Off
Cable EQ | | Coupling | DC Servo or AC | | Dimensions (WxDxH) | 1 x 10 x 3.2"
2.5 x 25.4 x 8.13cm | | Weight | 7.1 0z
201 grams | | Power Source | 5 DCV Derived from Mounting frame power supply | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 10.5 x 4.5 x 3.0" |
