User Manual for Link Electronics 11591027 D to A Converter - SDI to Composite and Y C , Rack Frame Configuration, Signal or No Signal Indicator, NTSC or PAL Click to enlarge the picture
Contents of the user manual for the Link Electronics 11591027 D to A
- Product category: Signal Converters Link Electronics
- Brand: Link Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Link Electronics Signal Converters
|
User manual for the Link Electronics 11591027 D to A contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Link Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Link Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Link Electronics product will considerably shorten its lifespan!
|

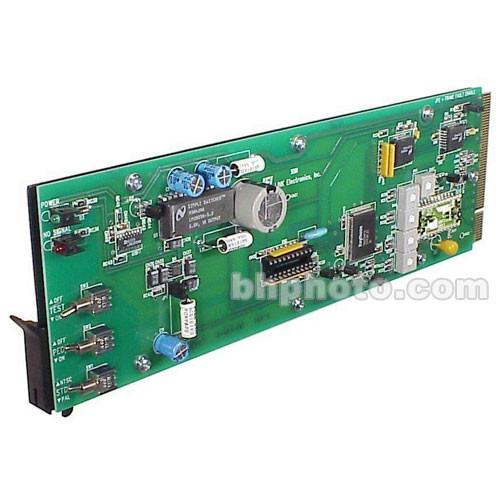

Product description The Link Electronics 11591027 is a D to A converter; it fits into a rack frame for space saving convenience and features automatic equalization and reclocking allowing for a very clean signal path. This model features conversion to composite and Y/C video with analog DA capabilities. - Rack Frame Card
- This Converter/DA operates in a rack frame able to accept 9 or 10 more modules of analog or digital capabilities. This allows the user multiple capabilities in a small studio rack space.
- Automatic
- Automatic equalization and reclocking allows for accurate signal processing with different length cable runs with SDI inputs.
- Television Standard
- This device converts into NTSC or PAL analog video.
- Analog Video
- Analog video can be processed to output 2 composite and 1 Y/C (S-Video).
- Color Bars
- Color bars can be selected and output for system set up functionality.
- Closed Caption
- Closed caption information can be processed and output on line 21 of the analog signal.
In the Box Link Electronics 11591027 D to A Converter - SDI to Composite and Y/C (BNC), Rack Frame Configuration, Signal or No Signal Indicator, NTSC or PAL Rack Card Rear Cell Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics 11591027 D to A Converter - SDI to Composite and Y C , Rack Frame Configuration, Signal or No Signal Indicator, NTSC or PAL in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics 1159/1027 Specs | Input | SDI Video, @ 75 ohms, on a BNC connector | | Output | Composite Video x2, 1 Vpp @ 75 ohms, on BNC connectors
Y/C S-Video, 1 Vpp @ 75 ohms, on two BNC connectors
Sync, 0.3 Vpp @ 75 ohms, on a BNC connector | | Conversion | SDI Digital Component Video to Analog Composite and Y/C video | | Video Control | Front Edge LED Indicators
Set Up On/Off
NTSC or PAL
Color Bars | | Dimensions (WxDxH) | 1 x 10 x 3.2"
2.5 x 25.4 x 8.13cm | | Weight | 7.1 0z
201 grams | | Power Source | 4.2 Watts Derived from Mounting frame power supply | | | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 14.0 x 11.0 x 6.0" |
