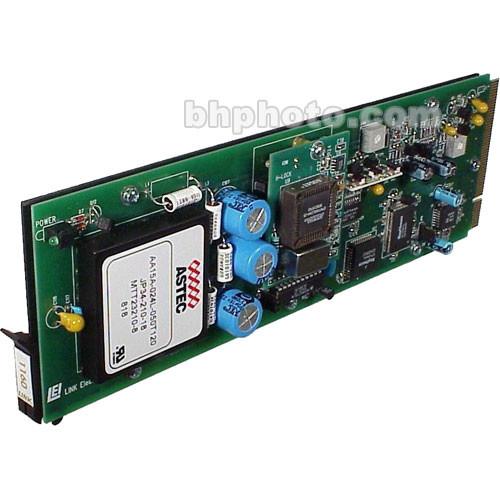

Product description The Link Electronics 11601023 is a Analog to Digital video convertor; it will accept a composite analog video signal and convert the signal to an SDI digital video signal. This device offers eight SDI outputs for user convenience. - Multi-Standard
- The 11601023 has the ability to accept NTSC or PAL composite video signals.
- Comb Filter
- A three line adaptive comb filter is offered for high quality processing of composite signals.
- Multiple SDI Outputs
- Eight SDI outputs are offered for distribution amplifier capabilities.
- Rack Frame Design
- This conversion card was designed to fit into Link's 1000 Series frame.
In the Box Link Electronics 11601023 Analog Video to SDI Converter - Composite,(BNC) NTSC PAL to SDI, PCB Card Rear Cell Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics 11601023 Analog Video to SDI Converter - Composite, NTSC PAL to SDI, PCB Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics 1160/1023 Specs | Input | Composite Video, on one BNC connector
NTSC or PAL is capable on composite conversion | | Output | SDI Digital Video x8, on BNC connectors | | Conversion | Composite analog video (NTSC or PAL) to SDI Digital Video. | | Control | Not Specified by Manufacturer | | Power Source | Power is derived from rack frame power supply | | Dimensions (WxDxH) | 1 x 10 x 3.2"
2.5 x 25.4 x 8.1cm | | Weight | 0.5 lbs
227 grams | | | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 14.0 x 11.0 x 6.0" |
