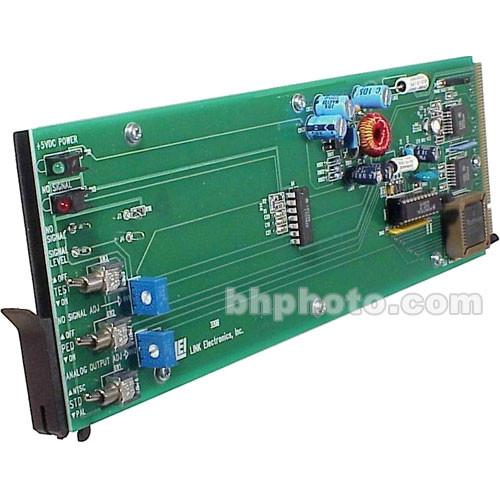

User Manual for Link Electronics 11781078 SDI and Composite Distribution Amplifier D to A Converter - 1x4 and 1x4 BNC, Rack Frame Configuration, Fault Indicator, Output Level Adjustment Click to enlarge the picture
Contents of the user manual for the Link Electronics 11781078 SDI and Composite
- Product category: Signal Converters Link Electronics
- Brand: Link Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Link Electronics Signal Converters
|
User manual for the Link Electronics 11781078 SDI and Composite contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Link Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Link Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Link Electronics product will considerably shorten its lifespan!
|
Product description The Link Electronics 11781078 is an SDI video distribution amplifier and D to A converter; it fits into a rack frame for space saving convenience and features automatic equalization and reclocking allowing for a very clean signal path. This model features conversion to composite video with analog DA capabilities. - Rack Frame Card
- This Converter/DA operates in a rack frame able to accept 9 or 10 more modules of analog or digital capabilities. This allows the user multiple capabilities in a small studio rack space.
- Automatic
- Automatic equalization and reclocking allows for accurate signal processing with different length cable runs with SDI outputs.
- Fault Indication
- Front edge indicator LEDs light when signal is below a specific preset level; the preset level can be adjusted to a specific point. A rear edge fault indicator is offered for engineering usage.
- Output Level
- An output level adjustment for analog allows levels from 600 mv to 1100 mv to be selected.
- Television Standard
- This device converts into NTSC or PAL analog video.
- Analog Video
- Analog video can be processed to output 4 composite or two Y/C (S-Video); it can also mix formats and output 2 composite and 1 Y/C video.
In the Box Link Electronics 11781078 SDI and Composite Distribution Amplifier/D to A Converter - 1x4 and 1x4 BNC, Rack Frame Configuration, Fault Indicator, Output Level Adjustment Rack Card Rear Cell Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics 11781078 SDI and Composite Distribution Amplifier D to A Converter - 1x4 and 1x4 BNC, Rack Frame Configuration, Fault Indicator, Output Level Adjustment in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics 1178/1078 Specs | Input | SDI Video, @ 75 ohms, On a BNC connector | | Output | SDI x4, 1 Vpp @ 75 ohms, On BNC connectors
Composite Video x4, 1 Vpp @ 75 ohms, on BNC connectors | | Video Bandwidth | 143 Mb/s, 270 Mb/s
10 Bit Quantization | | Video Signal-to-Noise Ratio | 65 dB | | Differential Phase | 0.2° | | Differential Gain | 1.5% | | Video Control | Front Edge LED Indicators
No Signal Detect Adjust
Output Level Adjust
Modulated Ramp On/Off
Set Up On/Off
NTSC or PAL | | Coupling | Not Specified by Manufacturer | | Dimensions (WxDxH) | 1 x 10 x 3.2"
2.5 x 25.4 x 8.13cm | | Weight | 7.1 0z
201 grams | | Power Source | 4.2 Watts Derived from Mounting frame power supply | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 14.0 x 11.0 x 6.0" |
