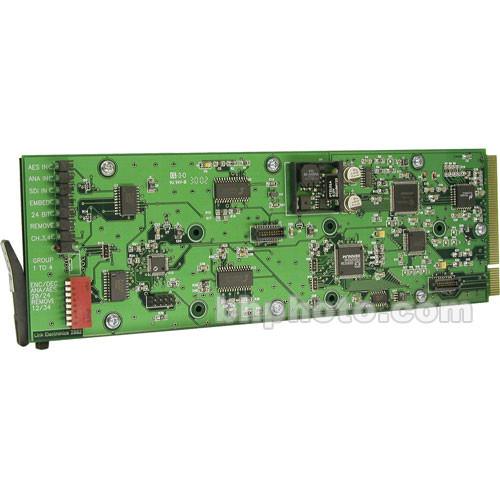

User Manual for Link Electronics 11801080 SDI Audio Multiplexer Demultiplexer - Embed De-embed Digital Audio Onto SDI Video Click to enlarge the picture
Contents of the user manual for the Link Electronics 11801080 SDI Audio Multiplexer
- Product category: Embedders & De-Embedders Link Electronics
- Brand: Link Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Link Electronics Embedders & De-Embedders
|
User manual for the Link Electronics 11801080 SDI Audio Multiplexer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Link Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Link Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Link Electronics product will considerably shorten its lifespan!
|
Product description The Link Electronics 11801080 is a multiplexer de-multiplexer for embedding and de-embedding AES audio onto an SDI signal. Audio is embedded onto the SDI video signal for single cable AV distribution. This function allows high quality signals to travel long distances on one cable for economic and space considerations. Note: Analog audio is available as an option - Multiplexing
- The 1180 is designed to insert analog or digital audio signals onto a single SMPTE 259M serial component digital video signal. The audio signal will be placed onto the SDI video according to SMPTE 272M-1994.
- Demultiplexing
- This unit is designed to extract the digital audio signal from a single SMPTE 259M serial component digital video signal. The demultiplex function reads the AES/EBU audio signal and sends the data in AES format out the digital audio output port.
- Audio
- 20 bit or 24 bit audio can be selected; 75 ohm unbalanced and 110 ohm balanced audio are supported. Multiple channels can be embedded and de-embedded.
- Multiple System
- Digital NTSC (525/60) and PAL (625/50) television systems are supported for signal acceptance and reproduction.
- Rack Card
- This card was design to fit into the 1000 series rack card chassis or the 7200 single card chassis.
In the Box Link Electronics 11801080 SDI Audio Multiplexer/Demultiplexer - Embed/De-embed Digital Audio Onto SDI Video 10 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics 11801080 SDI Audio Multiplexer Demultiplexer - Embed De-embed Digital Audio Onto SDI Video in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics 1180/1080 Specs | Input | SDI Digital Video , SMPTE 259M-C Video, on a 75 ohm BNC connector
AES/EBU 110 ohm Balanced Digital Audio, SMPTE 276M, on 3-Pin connectors
AES/EBU 75 ohm Unbalanced Digital Audio, SMPTE 272M-C, on a 75 ohm BNC connector | | Output | SDI Digital Video , SMPTE 259M-C Video, on a 75 ohm BNC connector
AES/EBU 110 ohm Balanced Digital Audio, SMPTE 276M, on 3-Pin connectors
AES/EBU 75 ohm Unbalanced Digital Audio, SMPTE 272M-C, on a 75 ohm BNC connector | | Conversion | Multiplexing and demultiplexing of digital audio signal within an SDI digital video signal | | Control | Dip Switches:
Encode/Decode
20 or 24 Bit Audio
Remove
12/34Rotary Switch:
1 to 4 Audio Channel Selection | | Power Source | Power derived from rack frame | | Dimensions (WxDxH) | Designed to fit into 1000 Series Rack Frame or 7200 Single Card Frame | | Weight | Less than 1 lb | | | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 14.0 x 11.0 x 6.0" |
