User Manual for Link Electronics 11901090 SDI Frame Synchronizer - Four Outputs, Reference to Black Burst, Rack Card Click to enlarge the picture
Contents of the user manual for the Link Electronics 11901090 SDI Frame Synchronizer
- Product category: Video & Audio Processing Link Electronics
- Brand: Link Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Link Electronics Video & Audio Processing
|
User manual for the Link Electronics 11901090 SDI Frame Synchronizer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Link Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Link Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Link Electronics product will considerably shorten its lifespan!
|

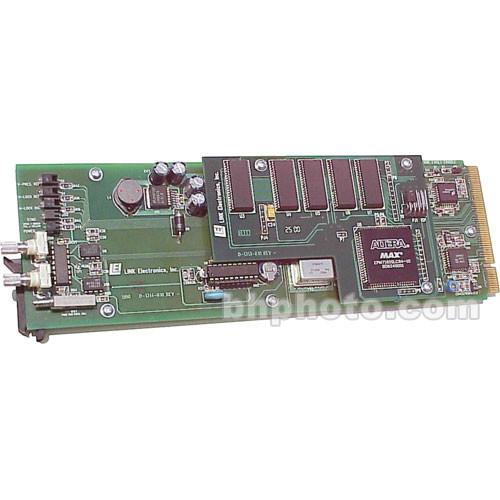

Product description The Link Electronics 11901090 is a component serial digital frame synchronizer; it accepts an SDI component signal and passes four clean and stable outputs. This unit synchronizes to analog black for studio timing of a Digital source. - Automatic Standards Select
- The 1190 automatically selects 525 or 625 lines according to the input signal specifications.
- Multiple Output
- This unit outputs the synchronized signal on four identical SDI component serial outputs.
- Analog Reference
- This device allows timing of an SDI signal into an analog system by syncing to analog black burst.
- Rack Card
- This unit was designed to be used with the 1000 series chassis or the 7200 chassis as a stand alone device.
In the Box Link Electronics 11901090 SDI Frame Synchronizer - Four Outputs, Reference to Black Burst, Rack Card 10 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics 11901090 SDI Frame Synchronizer - Four Outputs, Reference to Black Burst, Rack Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics 1190/1090 Specs | Input | SDI Video, 270 Mb/s Component serial @ 75 ohms, on a BNC connector
Reference, looping, analog black burst, on a BNC connector | | Output | SDI Video x4, 270 Mb/s Component serial @ 75 ohms, on BNC connectors | | Video Bandwidth | 10 Bit Quantization | | Differential Gain | Not Specified by Manufacturer | | Differential Phase | Not Specified by Manufacturer | | Video Signal-to-Noise Ratio | Not Specified by Manufacturer | | Control | Free Run and Internal Frequency
Vertical Phase
Horizontal Phase | | Power Source | Power Derived from Rack Frame | | Dimensions (WxDxH) | Designed to fit into the 1000 Series Chassis or the 7200 Single Chassis | | Weight | Less than 1 lbs | | | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 14.0 x 11.0 x 6.0" |
