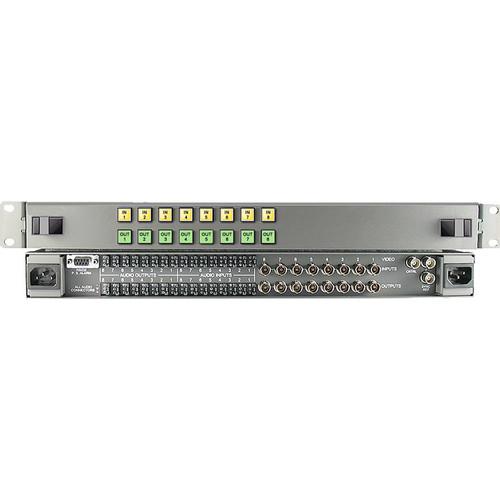

User Manual for Link Electronics 16 x 16 HD SDI Video Routing Switcher Click to enlarge the picture
Contents of the user manual for the Link Electronics 16 x 16 HD
- Product category: Routers & Switchers Link Electronics
- Brand: Link Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Link Electronics Routers & Switchers
|
User manual for the Link Electronics 16 x 16 HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Link Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Link Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Link Electronics product will considerably shorten its lifespan!
|
Product description The 16 x 16 HD/SDI Video Routing Switcher from Link Electronics is designed to handle high-resolution HD/SDI video. It manages analog video, accepting 16 inputs and providing 16 outputs. The switcher features a modular design that offers flexibility to the users by adding other modules later to the unit, allowing for expansion and upgrade functionality.
Controls can be managed via the push buttons of the front panel interface, or with remote control panels connected via Ethernet or RS-232 connectivity through a standard D-sub connector. Panels can be configured to control a single output bus or the entire matrix. The control panel supplied with this switcher is shipped installed in front of the main electronics chassis, but can be removed in the field and installed in a separately available remote-mounting kit.
The unit's power supply is accessible from the front of the unit and can be easily removed or installed as needed. A redundant power supply is also separately available. It is designed for placement in any standard 19" rack. - Plug-in modules for video and audio
- No active components on the frame
- Two power supply slots are accessible from the front panel; one power supply is standard
- Redundant power supply is also separately available
- Detachable front panel control with Ethernet 10BASE2 coax connection
In the Box Link Electronics 16 x 16 HD/SDI Video Routing Switcher Power Supply Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics 16 x 16 HD SDI Video Routing Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics XL1616HD/1 Specs | SDI Inputs | 16 x BNC
Data Rate: 270 Mb/s, 360 Mb/s, 540 Mb/s, 1.4835 Gb/s
Data Type: SMPTE 259M, SMPTE 292M, SMPTE 344M, DVB-ASI
Input Cable Equalization: Automatic up to 300 m @270 Mb/s, 100 m @ 1.485 Gb/s
Video Level: 800 mV +/- 10%
Impedance: 75 Ohms looping
Coupling: DC
Return Loss: >15 dB @ 1.485 Gb/s | | SDI Outputs | 16 x BNC
Level: Unity gain, ±0.1 dB
Character Video: 90 IRE units
Return Loss: >15 dB @ 1.485 Gb/s
Impedance: 75 Ohms ±1%
Vertical Interval Switching: Line 6, NTSC
Frequency Response: ±0.1 dB to 5 MHz / -3.0 dB to 50 MHz
Differential Gain: 0.10%, 10% to 90% APL
Differential Phase: 0.10%, 10% to 90% APL
Crosstalk: 62 dB
Propagation Delay: 5 ns, typical
Hum and Noise: >60 dB to 5 Hz
DC Offset: <25 mV
Line Rate Tilt: <0.1%
Field Rate Tilt: <0.1%
SNR: -73 dB
Output Jitter: <25 ps | | Ambient Temperature | 32 to 122°F (0 to 50°C) | | Humidity | 10 to 90%, non-condensing | | Power | 9.5 VAR | | AC Voltage | 120/240 VAC ±10%, 50/60 Hz | | Dimensions (H x W x D) | 1.8 x 19.0 x 9.3" (4.5 x 48.0 x 23.5 cm) | | Weight | 9 lb (4 kg) |
