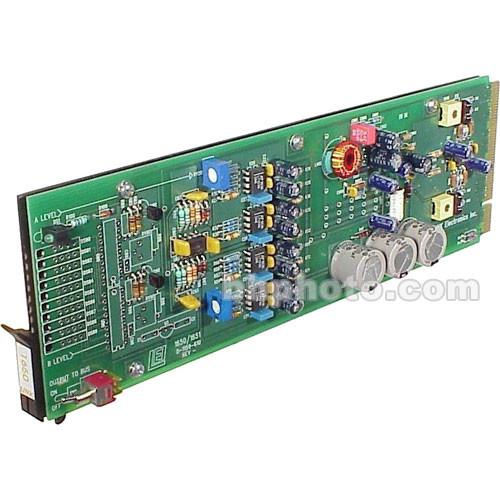

Product description The Link Electronics 16501021 is a 1x8 mono audio distribution amplifier that has the ability to work in a 2x4 configuration; designed to operate in a rack frame it features a wide bandwidth and balanced audio. - Wide Bandwidth
- A bandwidth of 120 kHz will allow for the distribution of SMPTE time code or BTSC Baseband Stereo.
- Dual Mode
- This DA can be configured to a 1x8 mono DA or a 1x4 stereo DA.
- Bandwidth
- The wide bandwidth allows this unit to distribute SMPTE time code or BTSC Baseband Stereo.
In the Box Link Electronics 16501021 1x8 Audio Distribution Amplifier - Mono 1x8, Stereo 1x4, Balanced, Rack Card, 3-Pin Plug In Connection Rack Card 1014 Rear Cell 10 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics 16501021 1x8 Audio Distribution Amplifier - Mono 1x8, Stereo 1x4, Balanced, Rack Card, 3-Pin Plug In Connection in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics 1650/1021 Specs | Input | Balanced Mono Audio x1 or x2, 20K ohms, on a 3-Pin Plug-In connector | | Output | Balanced Mono Audio x4 or x8, 66 ohms, on 3-Pin Plug-In connectors | | Coupling | Not Specified by Manufacturer | | Audio Bandwidth | 20 kHz | | Signal to Noise Ratio | 100 dB | | Audio THD | 0.01% | | Audio Control | Level Control
Common Mode Adjustment | | Dimensions (WxDxH) | 1 x 10 x 3.2"
2.54 x 25.4 x 8.12cm | | Weight | 8.0 oz
201 grams | | Power Source | Power Derived from Rack Frame | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 14.0 x 11.0 x 6.0" |
