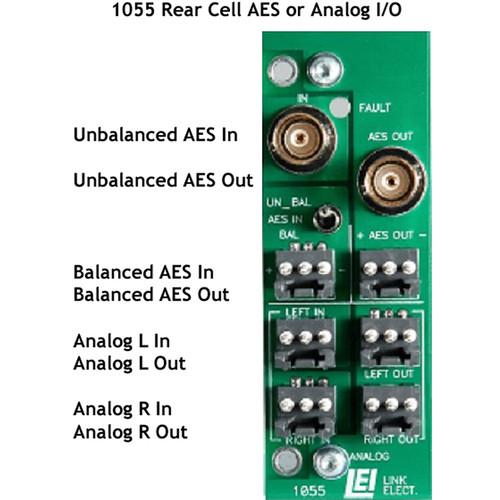

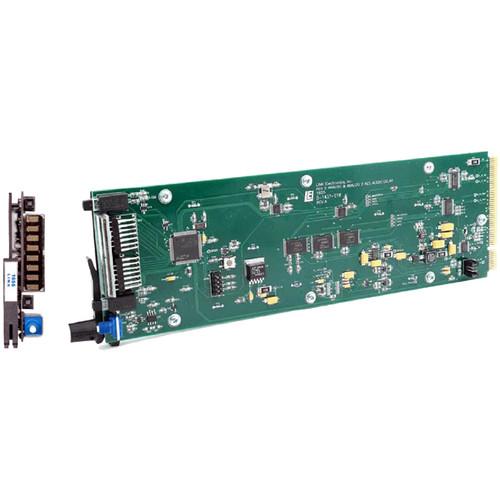

Product description The 1655/1055 AES/EBU Audio Delay and Digital Audio Processor from Link Electronics is a single digital audio processor that can be placed into an AES or analog audio path to add a selectable amount of delay of up to 2 seconds. The rack-card configuration can be used in a 1000-Series DigiFlex rack-mounting frame (sold separately). There is an eight-character display for showing the unit's function under adjustment. A rotary encoder, can be used to adjust the delay setting and input type. Two push-button switches provide easy adjustment of the 1655. In addition to the included 1055 rear cell, there are two other rear cells (available separately) that can be used to obtain audio delay and audio distribution for AES. The 1655/1055 will up convert from Analog to AES as well as down convert AES to Analog. All outputs are present with any input selected. The 1655/1055 AES/EBU Audio Delay and Digital Audio Processor is compatible with AES at the following sample rates: 32, 44.1, and 48 kHz. - Conversion, A to D and D to A
- Adjustable in steps of 1 ms
- Mechanical rotary encoder
- Input balanced or unbalanced AES or balanced analog
- Continuous outputs of AES and analog audio
- Selectable AES sample rate for analog input
- Useable with different rear cells for audio distribution
In the Box Link Electronics 1655/1055 AES/EBU Audio Delay and Digital Audio Processor Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics 1655 1055 AES EBU Audio Delay and Digital Audio Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics 1655/1055 Specs | AES Input | AES3-1992 @ Twisted Pair, 110-Ohm 3-Pin Connector
Level: 1 V Minimum, 110 Ohms
Unbalanced: AES3-ID, 75-Ohm BNC
Level: 800 mV to 1.2 V
Sample Rates: 32, 44.1, or 48 kHz
Switch: Two-Position Switch on the Rear I/O Selects Between Balanced and Unbalanced AES | | Analog Input | Balanced: 2 x 3-Pin Connectors, Left & Right
Impedance: 600 Ohms
Connector: Weco, 3-Pin Balanced
Common Mode Rejection Ratio: > 55 dB
Signal-to-Noise Ratio: > 60 dB | | AES Output | Balanced: One AES3-1992, Twisted Pair 110-Ohm 3-Pin Connector
Unbalanced: One AES3-ID, 75-Ohm BNC
Level: 1 V
Sample Rate: 32, 44.1, or 48 kHz
Coupling: DC
Amplitude: 4.2 V p-p Typical at 110 Ohms, 1 V p-p Typical at 75 Ohms
Jitter: < 0.01 UI | | Analog Output | Balanced: Two 3-Pin Connectors, Left & Right
Impedance: 600 Ohms
Connector: Weco, 3-Pin Balanced | | Performance | Delay Resolution: 1 ms
Minimum Delay: 6.25 ms
Maximum Delay: 2.00625 sec | | Controls | Switch, Enter: Push Button
Switch, Escape: Push Button
Readout of Timing Adjustments: LED Display
Data Select: Rotary Encoder | | Environmental | Temperature: 32 to 122°F / 0 to 50°C
Humidity: 10 to 90% Non-Condensing
Power: 3 W | | Dimensions (H x W x L) | 3.2 x 1.0 x 10.0" / 8.1 x 2.5 x 25.4 cm | | Weight | 8.0 oz / 226.8 g | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 14.0 x 11.0 x 6.0" |
