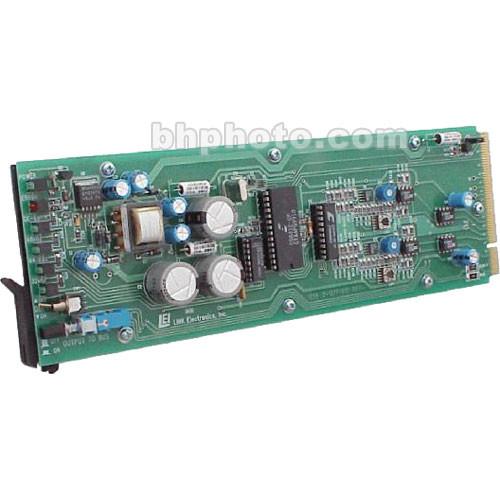

User Manual for Link Electronics 16581028 Digital to Analog Audio Converter - AES EBU Digital Audio 110 or 75 Ohm To Analog Stereo Audio Click to enlarge the picture
Contents of the user manual for the Link Electronics 16581028 Digital to Analog
- Product category: Signal Converters Link Electronics
- Brand: Link Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Link Electronics Signal Converters
|
User manual for the Link Electronics 16581028 Digital to Analog contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Link Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Link Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Link Electronics product will considerably shorten its lifespan!
|
Product description The Link Electronics 16581028 is a Digital to Analog audio converter. This device accepts a AES/EBU digital audio input and outputs an analog audio signal. It features rack card configuration and internal output level controls. - Adjustable Output Level
- Each output channel has ten levels of internally adjusted attenuation.
- Balanced or Unbalanced
- Digital audio input can be balanced (AES3-1992) or unbalanced (AES3-OD).
- Dual Outputs
- Dual balanced analog outputs are offered for the user's convenience.
In the Box Link Electronics 16581028 Digital to Analog Audio Converter - AES/EBU Digital Audio 110 or 75 Ohm To Analog Stereo Audio Rear Cell Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics 16581028 Digital to Analog Audio Converter - AES EBU Digital Audio 110 or 75 Ohm To Analog Stereo Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics 1658/1028 Specs | Input | AES/EBU Unbalanced Digital Audio, @ 75 ohms on a BNC connector
AES/EBU Balanced Digital Audio, @ 110 ohms, plug-in 3-Terminal connector | | Output | Stereo Balanced Audio x2 @ 66 ohms, on four plug-in 3-Terminal connectors | | Conversion | Digital Stereo Audio to Analog Balanced Stereo Audio | | Control | Ten position switch adjustment for attenuation for left and right channels
Resistive Trim
Balanced or Unbalanced Input | | Power Source | Power Derived from Rack Frame | | Dimensions (WxDxH) | 1 x 10 x 3.2"
2.5 x 25.4 x 8.13cm | | Weight | 0.5 lb
227 grams | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 14.0 x 11.0 x 6.0" |
