User Manual for Link Electronics 1RU 8x4 XY Control Panel Click to enlarge the picture
Contents of the user manual for the Link Electronics 1RU 8x4 XY Control
- Product category: Router, Switcher & Patchbay Accessories Link Electronics
- Brand: Link Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Link Electronics Router, Switcher & Patchbay Accessories
|
User manual for the Link Electronics 1RU 8x4 XY Control contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Link Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Link Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Link Electronics product will considerably shorten its lifespan!
|

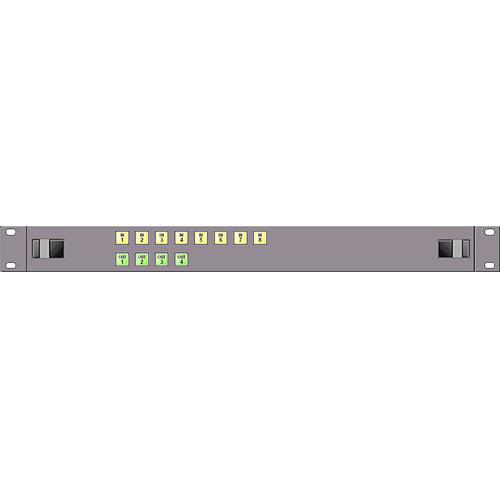

Product description Provided by third party: The 8x4 X-Y control panels can either be used as local or remote control panels. When used as a remote control panel the optional cradle assembly, model CR100, with built in 115V/230V input power supply and Ethernet interface should be ordered.
The simple to install coax based 10Base2 Ethernet network can support up to 32 panels and a total cable length of 300 feet. For longer distances and/or more panels, standard Ethernet LAN 'Hub' units can be used to expand the panel network to 256 panels.
Operation as an X-Y panel is very straightforward. First the desired destination (output) is selected. Once the output is selected the source (input) buttons will tally and they are used to select the desired input to that destination. Outputs that have been 'locked' are indicated by the output lamp flashing when a locked output is selected.
