User Manual for Link Electronics 4x1 3G HD SD-SDI ASD Switcher with GPI Option Click to enlarge the picture
Contents of the user manual for the Link Electronics 4x1 3G HD SD-SDI
- Product category: Routers & Switchers Link Electronics
- Brand: Link Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Link Electronics Routers & Switchers
|
User manual for the Link Electronics 4x1 3G HD SD-SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Link Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Link Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Link Electronics product will considerably shorten its lifespan!
|

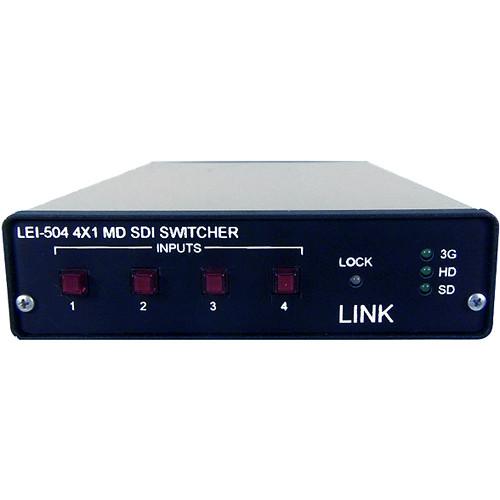

Product description The 4x1 3G/HD/SD-SDI ASD Switcher with GPI Option from Link Electronics is a four-input video switcher that provides a convenient, low-cost way to route high definition and standard definition serial digital signals. This switcher is compatible with 270 Mb/s, 1.5 Gb/s, and 3 Gb/s serial digital interface signals. It can also be used for ASI and SMPTE 310M (19.4 Mb/s) signals, and the reclocking will be automatically be turned off. This switcher automatically equalizes the incoming SDI signal, compensating for greater than 1,000‘ of cable at 270 Mb/s, greater than 250’ of cable at 1.485 Gb/s, and greater than 100’ of cable at 2.97 Gb/s. The signal is then reclocked, with automatic rate detection for all popular data rates. The LEDs on the front panel indicate the data rate of the output video.This multi-definition SDI 4x1 video switcher is capable of equalizing and reclocking all common serial digital signals, since it supports both standard and high definition signals. This makes it suitable for any application. The switcher’s versatility is illustrated by its ability to switch from SD to HD, SD to 3G, HD to 3G, and vice-versa. Another feature of this switcher is its ability to vertical interval switch when the inputs are synchronous. Vertical interval switching means that the switching takes place in the vertical interval of the video and therefore no glitch is seen in the active area of the video.The 4x1 3G/HD/SD-SDI Switcher is a 1 RU chassis that is housed in the same case as the well-accepted 700 series. A black front panel distinguishes between the two series. Three 500 or 700 series can be mounted in the PRT-700 rack tray (sold separately). - Supports 3G/HD/SD A&B SDI
- Vertical interval switching with inputs in sync
- Input rates from 270 Mb/s to 3 Gb/s
- ASI and SMPTE 310 compatible
UPC: 705641990559 In the Box Link Electronics 4x1 3G/HD/SD-SDI ASD Switcher with GPI Option Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics 4x1 3G HD SD-SDI ASD Switcher with GPI Option in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics LEI-504G Specs | | | Number of Inputs | 4 x SDI | | Connectors | BNC | | Impedance | 75 Ohms looping | | Data Rates | 270 Mb/s, 1.48 Gb/s, and 3 Gb/s | | SMPTE | 259 M, 292 M, and 424 M | | DC Offset | 0.5 V Maximuum | | Signal Level | 800 mv ± 10% | | Input Cable Length | SD at 270 Mb/s: 1,000.0' (304.8 m)
HD at 1.485 Gb/s: 250.0' (76.2 m)
3G at 2.97 Gb/s: 100.00 (30.48 m) | | | | Number of Outputs | 1 x SDI | | Connector | BNC | | Impedance | 75 Ohms | | Format | Follows input | | Signal Level | 0.800 mVpp ± 10% | | DC Offset | ± 100 mV | | Jitter | 5% Jitter improvement
Additive Jitter:
SD at 270 Mb/s: 16 ps pp, Typical
HD at 1.485 Gb/s: 20 ps pp, Typical
3G at 2.97 Gb/s: 22 ps pp, Typical | | Rise / Fall time | HD: 220 ps Maximum
SD: 800 ps Maximum | | | | Input Selection | Four momentary switches with LEDs | | Lock | Re-Clocker Locked: Bi-color LED | | Detectors | SD Rate Detect: Green LED
HD Rate Detect: Green LED
3G Rate Detect: Green LED | | | | Ambient Temperature | 32 to 122°F (0 to 50°C) | | Humidity | 0 to 90% Non-condensing | | Power | 5 W | | Voltage | 5 VDC
Adapter Voltage: 100 to 240 VAC, 50 to 60 Hz | | | | Dimensions (HxWxL) | 1.0 x 5.5 x 9.3" (2.5 x 14.0 x 23.5 cm) | | Weight | 1.5 lb (0.7 kg) | | | | Box Dimensions (LxWxH) | 14.0 x 12.0 x 12.0" |
