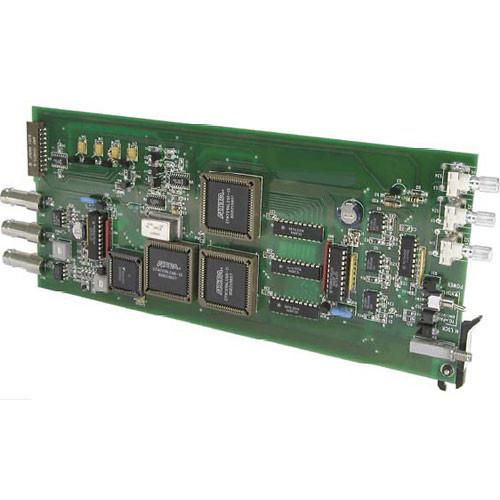

User Manual for Link Electronics 812-OP A1 Analog Blackburst Generator Click to enlarge the picture
Contents of the user manual for the Link Electronics 812-OP A1 Analog Blackburst
- Product category: Video & Audio Signal Generators Link Electronics
- Brand: Link Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Link Electronics Video & Audio Signal Generators
|
User manual for the Link Electronics 812-OP A1 Analog Blackburst contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Link Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Link Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Link Electronics product will considerably shorten its lifespan!
|
Product description The Link Electronics 812-OP/A1 is an analog black burst generator. This generator outputs two black burst signals from a rear entry plug-in module for the SPG-812 frame. This unit was designed to work with other 812 modules for a complete studio reference system. - Blackburst Generator
- The Black Burst generator creates a reference signal to synchronize studio machines using many of today's video tape formats.
- Output Adjustment
- Each of the 2 outputs has individual adjustments:
- Horizontal Timing
- Vertical Timing
- Adjustable Sub-Carrier Phase
- Master Sync
- When placed in the genlock slot #1 the 812-OP/A analog black burst module becomes the master and applies the correct timing pulses down the motherboard, and all other modules slave to it.
- Rack Card
- This device is a rack card that operates within the SPG-812 frame.
In the Box Link Electronics 812-OP/A1 Analog Blackburst Generator 10 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Link Electronics 812-OP A1 Analog Blackburst Generator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLink Electronics 812-OP/A1 Specs | Output | Analog Black Burst x2, 1Vpp @ 75 ohms, on BNC connectors | | Television System | NTSC @ 3.58MHz or PAL @ 4.43MHz | | Control | Each Output:
Horizontal Timing
Vertical Timing
Adjustable Sub-Carrier Phase | | Power Source | Power derived from Rack Frame | | Dimensions (WxDxH) | 1 x 10 x 4.27"
2.5 x 25.4 x 10.8cm | | Weight | 0.5 lbs
227g | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 14.0 x 11.0 x 6.0" |
